Petzl Am’D Pin-Lock Connector
Product No. M34A PL
Regular price
€23.69
€29.14
excl. €5.45 VAT
incl. €5.45 VAT
Shipping calculator
Please enter correct zip code
Payment methods
Product details

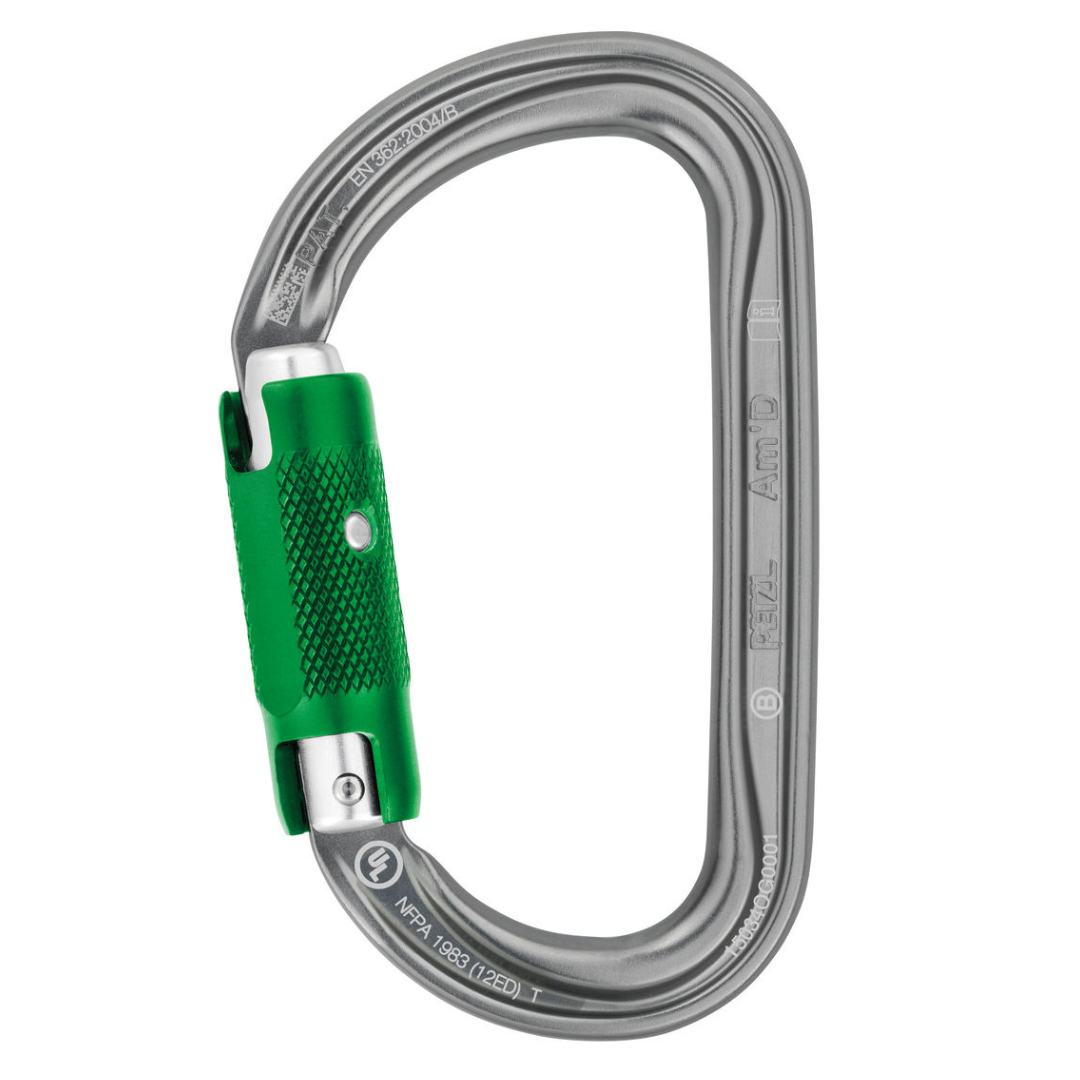

Petzl Am’D Pin-Lock Connector
The Am’D PIN-LOCK asymmetrical aluminum carabiner is designed for use with groups. It secures the connection of the participant with a PIN-LOCK system, which can only be opened by the operator with an unlocking tool. Am’D PIN-LOCK can be used with a CAPTIV positioning bar to help orient the carabiner to load the major axis, limit the risk of rotation, and keep it integrated with the device.
Downloads:
Key Features:
- Designed for use with groups: Can be used to fasten a harness (in combination with the CAPTIV positioning bar) or to connect a trolley to a continuous lifeline.
- Secures participant connection: The PIN-LOCK locking system can only be opened with a specialized tool, limiting the risk of unwanted unlocking.
- Optimized positioning: Compatible with the CAPTIV positioning bar, helping orient the carabiner on the major axis to reduce rotation and maintain integration with the device.

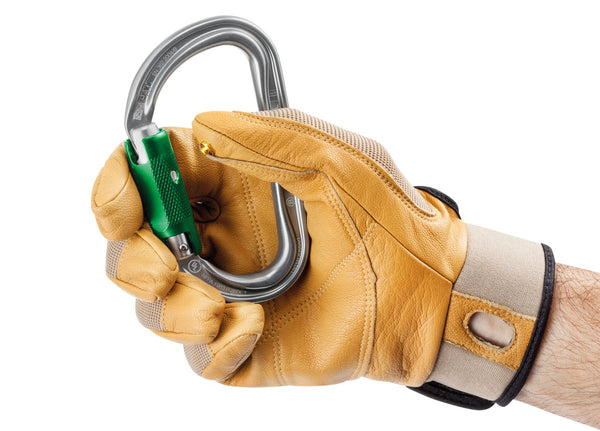

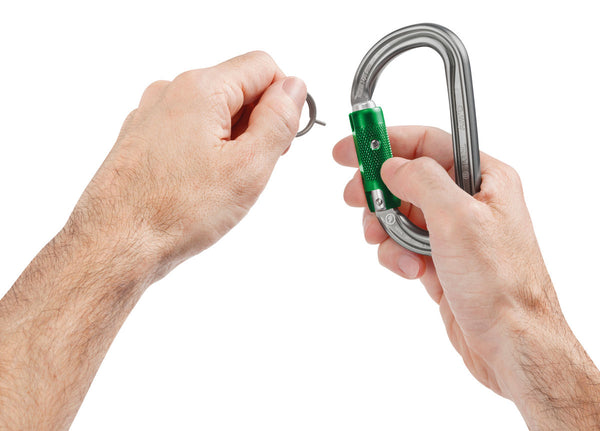

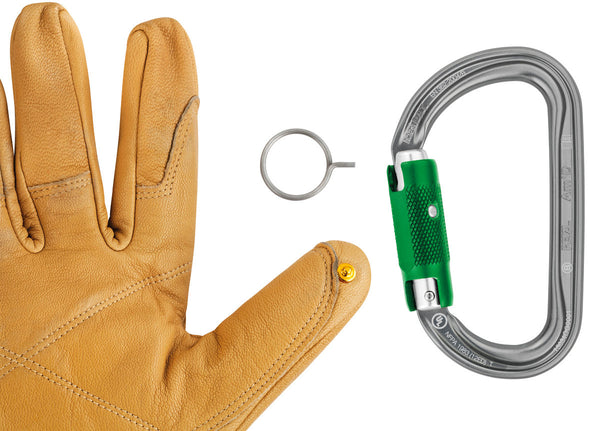

- Operator-friendly design: The Keylock system prevents snagging, and two unlocking tools are available for repeated or occasional use.
- Durable and lightweight: The H-frame construction provides an excellent strength-to-weight ratio while protecting markings from abrasion.
Specifications:
- Material(s): Aluminum
- Certification(s): CE EN 362, CE EN 12275, EAC, GB/T 23469 / B, XF 494: FZL-G-Q
References:
| References | M34A PL | M34AB PL |
|---|---|---|
| Locking system | PIN-LOCK | PIN-LOCK |
| Inner Pack Count | Sold individually | Sold in packs of 10 |
| Weight | 80 g | 800 g |
| Color(s) | Gray | Gray |
| Major axis strength | 27 kN | 27 kN |
| Minor axis strength | 8 kN | 8 kN |
| Open gate strength | 7 kN | 7 kN |
| Gate opening | 25 mm | 25 mm |
| Guarantee | 3 years | 3 years |
