Boscaro Geared concrete column skip

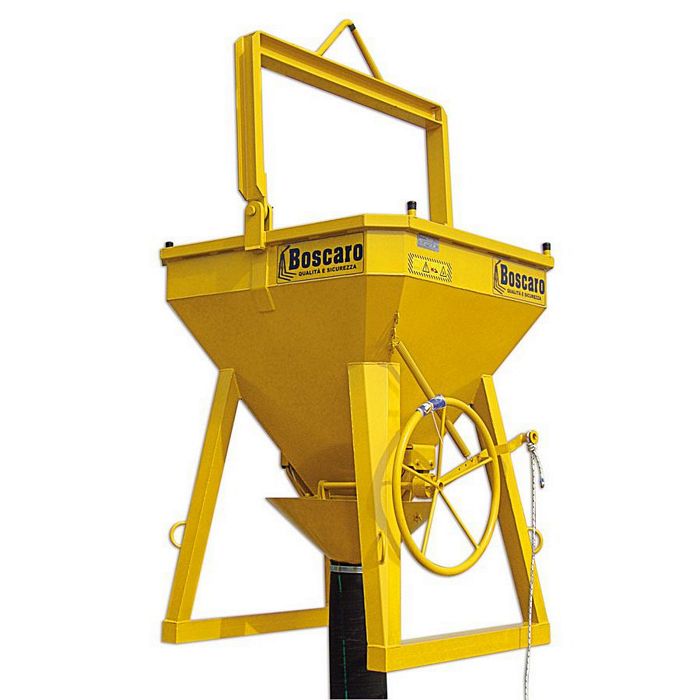

Boscaro Geared Concrete Column Skip

The Boscaro Geared Concrete Column Skip is designed for precise and controlled concrete pouring in demanding construction environments. Featuring a bi-valve opening mechanism operated by a double handwheel and a durable rubber hose, this skip ensures smooth and accurate concrete flow. Its octagonal design enhances stability, making it ideal for pouring concrete into formworks, columns, and foundations with minimal wastage.

Built to meet stringent industry standards, this concrete bucket guarantees reliability and efficiency on the job site. The integrated bi-valve closing valve, operated by a lever, ensures secure discharge control, while an automatic closing spring prevents unintended spills. A rope mechanism allows for controlled opening, even at height, for added convenience.

Each skip includes a two-meter rubber hose with a 200 mm diameter for precise concrete distribution. Upon request, an adjustable bale arm can be added for enhanced flexibility. All Boscaro concrete skips are manufactured in compliance with UNI EN ISO 12100, UNI EN 13854, ISO 8686, UNI EN 10027, and UNI EN 10204 standards. Every unit is supplied with a metal ID plate, a conformity certificate, and a user and maintenance manual. A one-year warranty, in line with European directives, further ensures long-term reliability.

Downloads:

Technical Data Sheet

Key Features:

• Octagonal concrete bucket for enhanced stability
• Bi-valve opening mechanism with a double handwheel for precise control
• 2-meter rubber hose (200 mm diameter) for controlled concrete flow
• Automatic closing valve with a rope-controlled opening for convenience
• Adjustable bale arm available upon request

Specifications:

• Compliance with UNI EN ISO 12100, UNI EN 13854, ISO 8686, UNI EN 10027, and UNI EN 10204 standards
• Supplied with a metal ID plate, conformity certificate, and user manual
• One-year warranty in compliance with European directives
• Designed for heavy-duty construction applications
• Available in multiple capacities ranging from 400L to 3000L

References:

• UNI EN ISO 12100
• UNI EN 13854
• ISO 8686

Product Variants & Dimensions:
