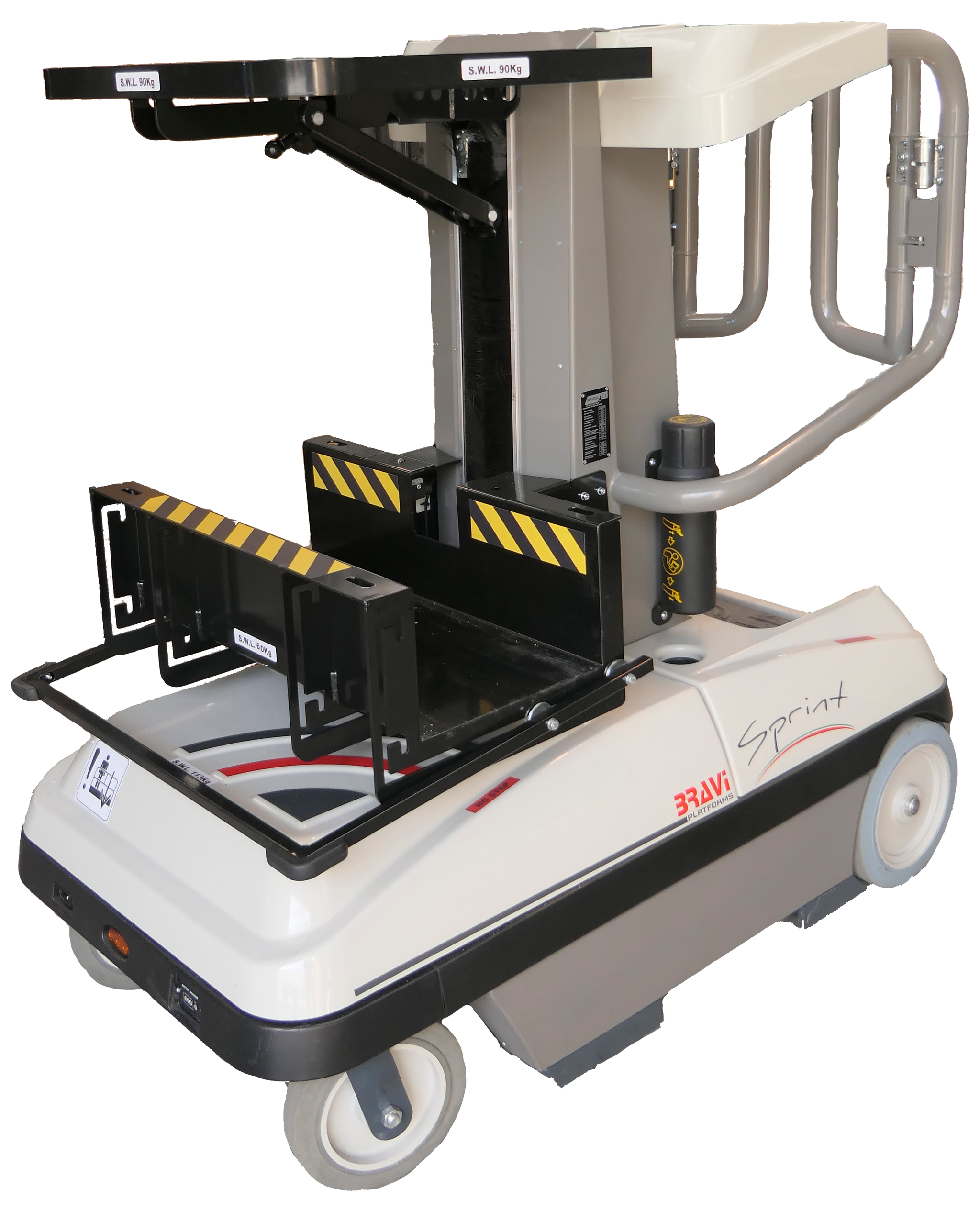

Bravi Sprint LP
Product No. Sprint LP
Evolution of the standard version, Sprint LP adds functions that allow the operator to manage a wider range of goods: from doors to large parcels.
- unique order picker designed to facilitate the handling of large and extra-large parcels and doors
- working height of 5,35 m (10 ft 11 in)
- innovative load deck for large parcels can load up to 60 kg (132 lbs)
- ultra-compact design allows for exceptional maneuverability
- thanks to its driving system it can complete a full rotation on its axis
- control panel equipped with a large LCD display showing vehicle status, system operating time,and battery status via a charge indicator
EFFICIENT AND VERSATILE
Sprint LP lifts the operator and large parcels, easily positioning them at the desired height and allowing for faster and safer performance than if manually handled. The innovative load deck can be loaded up to 60 Kg. The fully motorized foldable tray has a capacity of 90 Kg. To avoid bad positioning, both the load deck and tray are fixed and not removable.
Sprint LP has a drive speed of 5 Km/h while stowed and of 1.2 Km/h when lifted. The hand sensors and dual footswitches on the platform ensure the correct position of the operator while actively onboard or using the lifting functions. The heavy-duty load deck construction allows the operator to safely handling large parcels up to 60 kg, avoiding the risk of injuries related to the manual movement of goods.
Simple, efficient, and comfortable the Sprint LP is the result of continuous technical improvements. The innovative lifting mast requires no upkeep, while the careful selection of high-quality components, and an extremely simple yet effective design make the Sprint LP virtually maintenance-free, designed to guarantee low ownership costs.
Convenient and sturdy storage box with magnetic hook. Compatible with all models of the Bravi range.
3 metal bumpers that can be installed on the rear portion and on both sides of the Sprint to extra protect the standard side plastic canopies
Simple 2-wheel steer trailer for use in combination with the complete hook and step option.
Used in combination with the trailer accessory. Towing capacity: up to 200 kg / 440 lbs. Driving inhibited when the basket is raised.
Audible alarm that activates every time the gate doors open at height.
Used in combination with the side guide rollers accessory, it locks the castor wheels in straight position.
Available in the following sizes
- L89 cm (L35 in)
- L95 cm (L37 in)
- L105 cm (L41 in)
Automatic gate locking system that activates as soon as the platform is lifted. Inhibits any function with the gate doors open at height.
|Platform Height||3350 mm|
|Working Height||5350 mm|
|Platform height lowered||1441 mm|
|Minimum height of the walking surface||360 mm|
|Capacità della piattaforma||130 kg|
|Platform capacity||90 kg|
|Parcel shelf capacity||60 kg|
|Height of the parcel shelf||570 mm|
|Internal width of the parcel shelf||320 mm|
|Weight (CE)||714 kg|
|Number of occupants (CE)||1|
|Travel Speed – Platform Down||5 km/h|
|Travel Speed – Platform Raised||1.2 km/h|
|Inside turning radius||ZERO|
|External turning radius||1600 mm|
|Overlapping slope raised platform||max. 2°|
|Source of energy||110/220 V ca 24Vcc|
|Batteries||n° 4 – 6V; 245Ah@20h|
