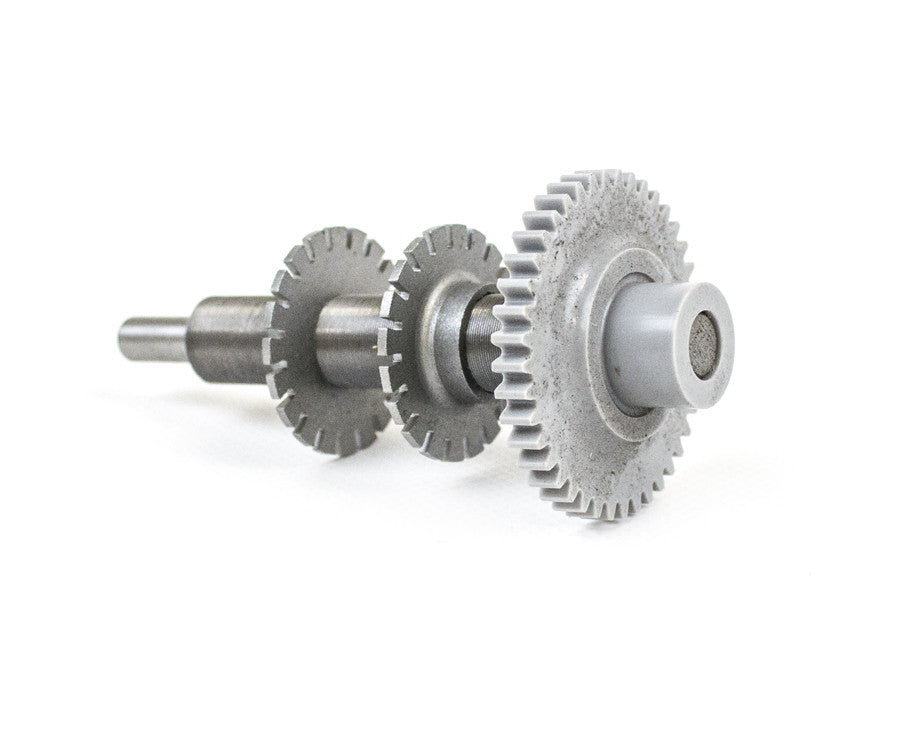

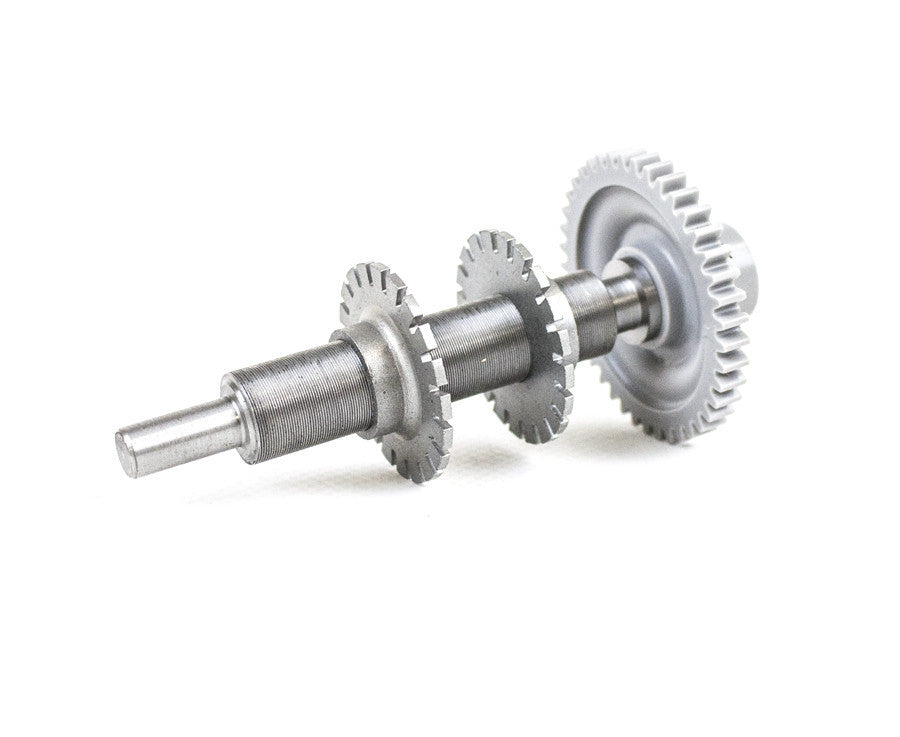

CM Limit Switch Shaft Assembly - 64 Tpi (V1)
Product No. 00000523
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Shipping calculator
Please enter correct zip code
Payment methods
Product details
This Limit Switch Shaft assembly contains a 64 TPI shaft and gearing for Small Frame Next Gen Lodestar hoists. This assembly allows the hoist to have a maximum lift of 152' for Model B & F hoists and 299' for Model C hoists. Reference the chart below for the maximum lift of different Limit Switch Shafts:
| Maximum Lift - 44 TPI Shaft | Maximum Lift - 56 TPI Shaft | Maximum Lift - 64 TPI Shaft | ||||
| Hoist Model | meters | feet | meters | feet | meters | feet |
| B & F | 32 | 105 | 41 | 133 | 46 | 152 |
| C | 63 | 206 | 80 | 262 | 91 | 299 |
