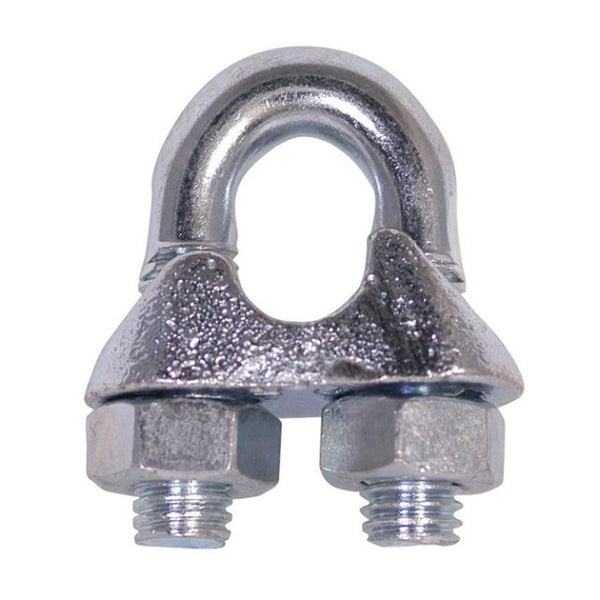

• Doughty Cable Grips - Galvanized steel wire rope clamp, heavy-duty construction.

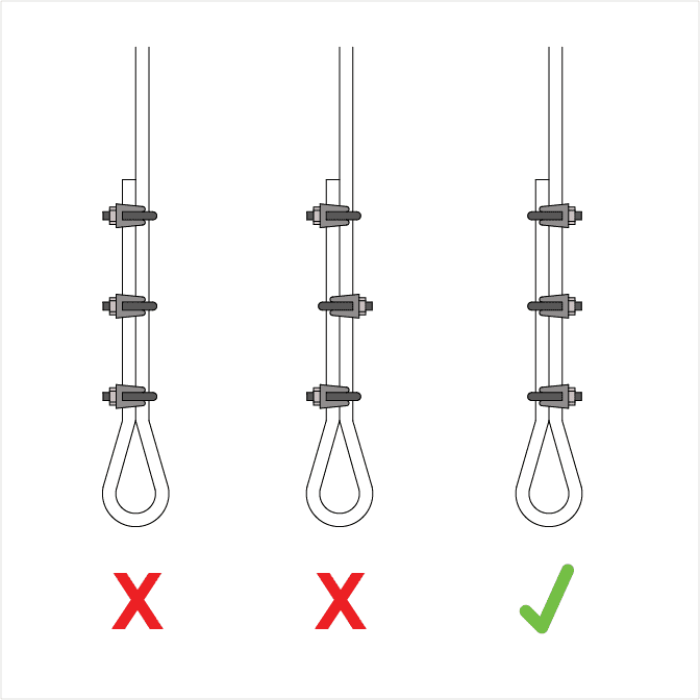

  • Doughty Cable Grips - Proper wire rope clamp installation guide. - imagen 2

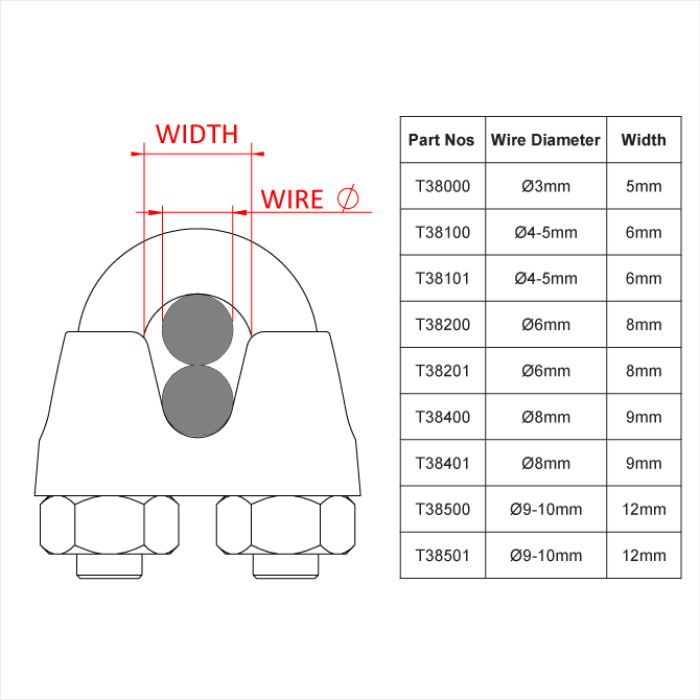

  • Doughty Cable Grips - Wire rope clip dimensions and detailed specifications chart. - imagen 3

Doughty Cable Grips

Doughty Engineering |
SKU: T38000
€0.39incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Robust Durability. Crafted from galvanised steel for maximum strength - perfect for demanding environments in TV and live events.
  • Optimal Grip Strength. Designed for use in sets of three to ensure secure fastening - ideal for creating loops or thimbled ends in steel wire rope applications.
  • Used in threes. Doughty cable grips are designed to be used three at a time to safely form a loop or thimbled end in steel wire rope.
  • Versatile Application. Perfectly suited for a range of rigging scenarios - ensures reliable performance in theatre, film, and live events.
  • Dependable Performance. Engineered for consistent use in professional settings - trust Doughty Cable Grips to keep your rig secure and safe.
View Full Description Technical Data
Options: 3mm-Conforms To Din 741

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty Cable Grips

The Doughty Cable Grips offer a dependable, sturdy way to secure securing steel wire ropes. Made from galvanised steel, these cable grips are designed to be used in sets of three, making them well suited to creating secure loops or thimbled ends in steel wire rope applications. Their robust construction ensures durability and performance in demanding environments.

Key Features

  • Galvanised steel construction for enhanced durability and corrosion resistance
  • Designed for use in sets of three for optimal grip strength
  • Ideal for forming loops or thimbled ends in steel wire ropes

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Why do I need three of these for one wire rope loop?
A single grip can't reliably hold a loop under load. Using three, spaced correctly along the tail end of the rope, distributes the grip force so the loop doesn't slip when tensioned.
What's the difference between the DIN 741 and DIN 1142 variants at the same wire size?
Both are wire rope grip standards, but they define slightly different clamp designs and testing requirements. Check which standard your project spec or venue requires before ordering, since they're not always interchangeable within the same installation.
Why don't these grips have a WLL if they're used to secure wire rope?
The grip itself isn't rated because the safe working load comes from the wire rope and the overall rigged assembly, not the grip in isolation. Always work to the rated capacity of the wire rope being secured, not the grip.
