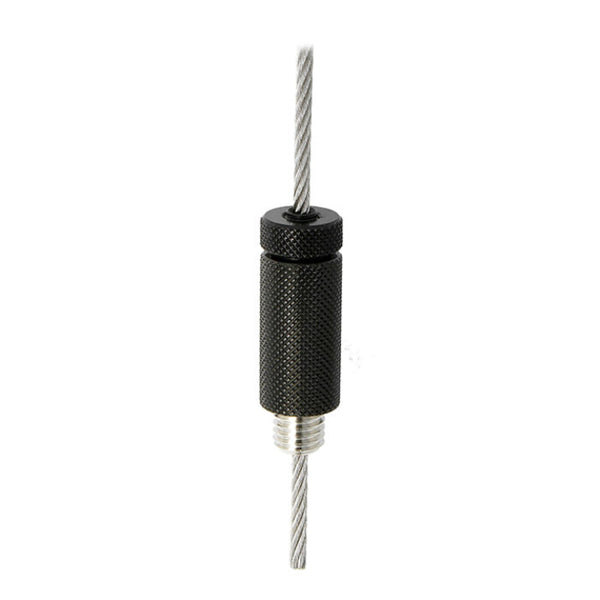

• Doughty 30SV M10 Male - Black adjustable wire cable gripper with textured grip.

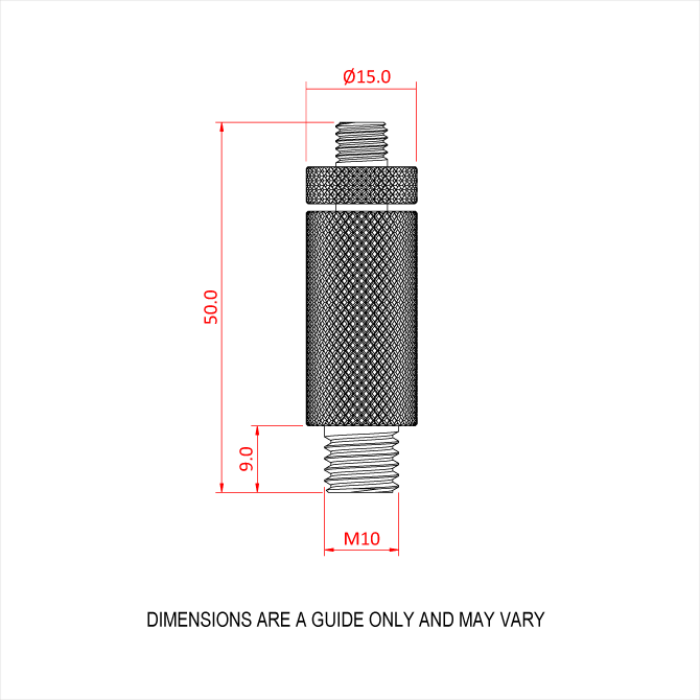

  • Doughty 30SV M10 Male - Knurled handle bolt with precise dimensions, threaded ends. - imagen 2

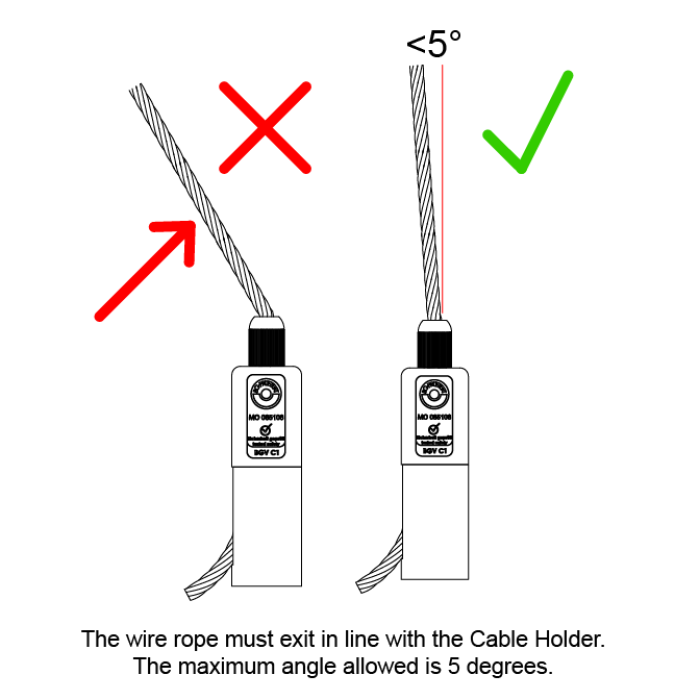

  • Doughty 30SV M10 Male - Cable holder correct wire rope alignment guide. - imagen 3

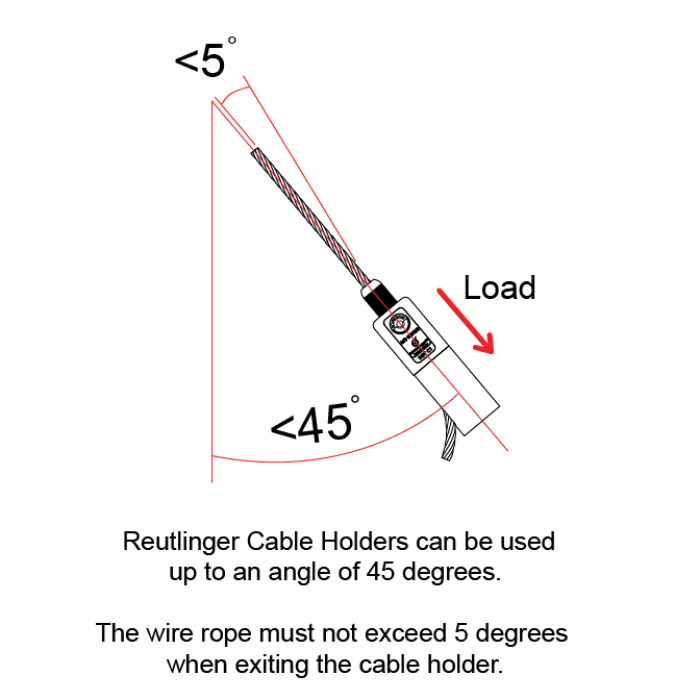

  • Doughty 30SV M10 Male - Reutlinger cable holder angle and wire rope guidelines. - imagen 4

Doughty 30SV M10 Male

Doughty Engineering |
SKU: T37630
€21.21incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Versatile Compatibility. Securely holds Ø2mm and Ø3mm steel wire ropes - perfect for diverse stage setups and installations.
  • BGV C1 Compliance. Meets rigorous safety standards for professional events - essential for stage productions and fair booths.
  • WLL: 84Kg (3mm Stainless Steel Wire) / 102Kg (3mm Zinc Plated Wire). Always keep the applied load within this rated limit.
  • Durable Design. Built to withstand professional use in various environments - reliable for touring and live performances.
  • Precision Threading. M10 Male thread ensures a secure fit with compatible mounting points - promotes stability and safety in rigging applications.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 30SV M10 Male

The Doughty 30SV M10 Male is a versatile Type 30SV Reutlinger Cable Holder equipped with an M10 Male thread. Built for use with Ø2mm and Ø3mm steel wire ropes, this cable holder suits applications demanding compliance with BGV C1 standards, such as stage productions and fair booths. This innovative cable holder can be repositioned without damaging the cable, and no tools are required for installation.

Key Features

  • Type 30SV Reutlinger Cable Holder
  • M10 Male thread
  • Compatible with Ø2mm and Ø3mm steel wire ropes
  • Compliant with BGV C1 standards
  • Tool-free repositioning without cable damage

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Why does the M10 Male version have different WLL figures than the M8, Fork, or Ring versions?
The M10 Male connects via a threaded stud rather than a fork, ring, or hook fitting, so its rated capacity is listed separately by wire type and diameter (up to 85Kg on 3mm galvanised wire) rather than the single figure quoted for the other 30SV attachment styles.
Does the wire material affect the load rating on this cable holder?
Yes, significantly. On 3mm wire, galvanised steel is rated to 85Kg while stainless steel is rated to only 65Kg, so always check which wire type you're using against the correct WLL column.
What's the difference between the M10 Male and the M8 Male-Side Exit Wire version?
Both are 30SV Reutlinger cable holders, but the M10 Male has a straight thread with no side exit, while the M8 version includes a side exit for the wire and uses an M8 thread instead.
