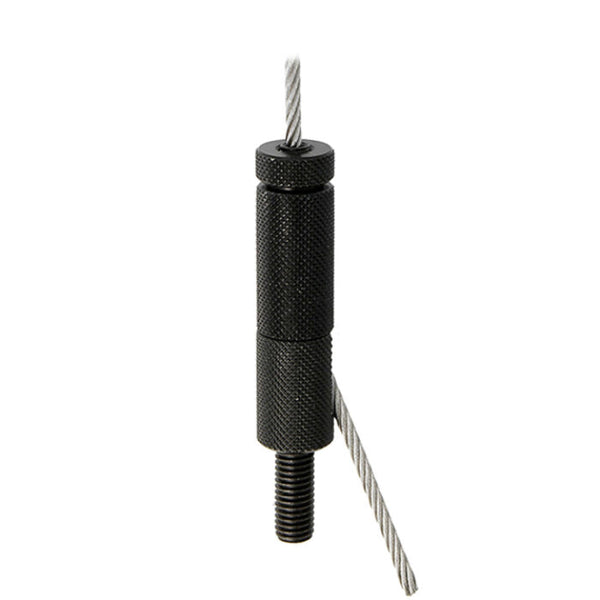

• Doughty 30SV M8 Male-Side Exit Wire - Black adjustable cable gripper with threaded design.

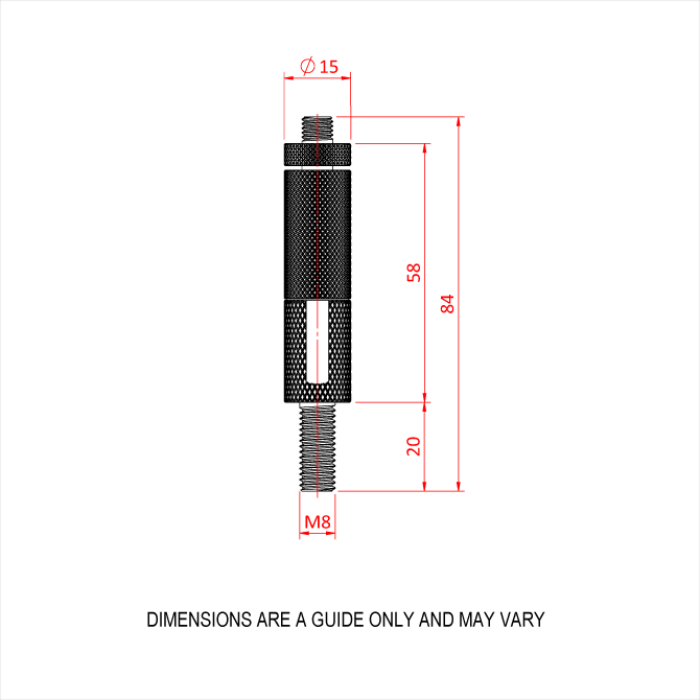

  • Doughty 30SV M8 Male-Side Exit Wire - Adjustable anti-vibration mount with precise dimensions. - imagen 2

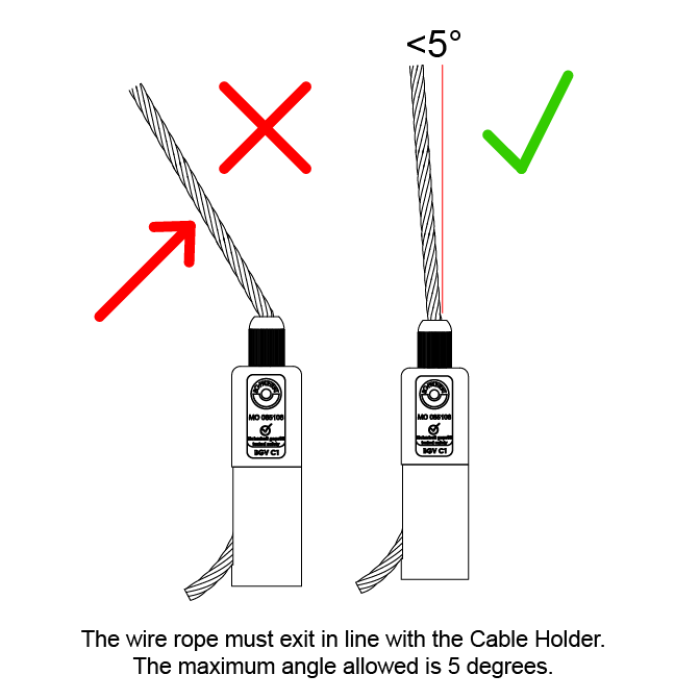

  • Doughty 30SV M8 Male-Side Exit Wire - Cable holder wire rope alignment guide, maximum 5 degrees. - imagen 3

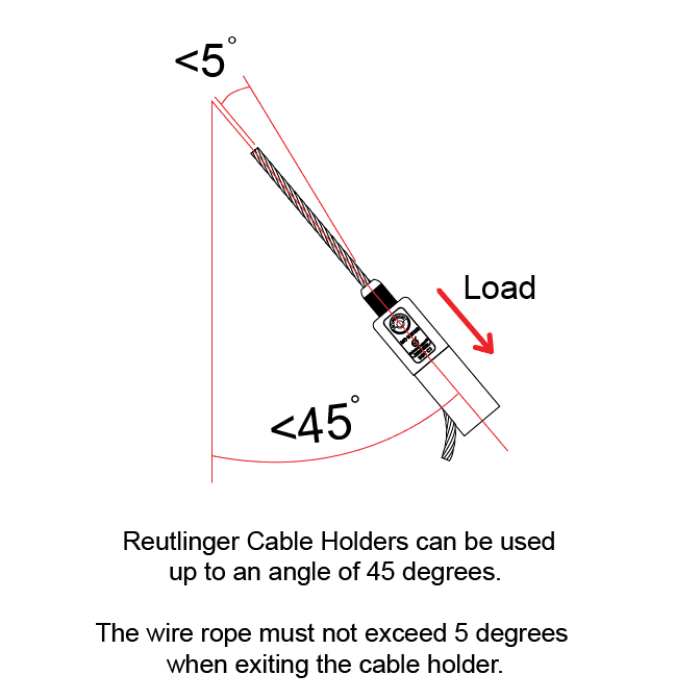

  • Doughty 30SV M8 Male-Side Exit Wire - Reutlinger cable holder with angle guidelines illustrated. - imagen 4

Doughty 30SV M8 Male-Side Exit Wire

Doughty Engineering |
SKU: T37631
€29.29incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Secure Attachment. M8 male thread ensures a tight grip - designed for BGV C1 applications in rigorous environments.
  • Effortless Wire Management. Side exit design simplifies cable organization - perfect for stage productions and fair booths.
  • Versatile Compatibility. Works seamlessly with Ø2mm and Ø3mm steel wire ropes - providing flexibility for various setups.
  • WLL: 84Kg (3mm Stainless Steel Wire) / 102Kg (3mm Zinc Plated Wire). Always keep the applied load within this rated limit.
  • Robust Design. Built to meet stringent industry standards - ideal for touring and professional staging applications.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 30SV M8 Male-Side Exit Wire

The Doughty 30SV M8 Male-Side Exit Wire is a versatile cable holder specifically designed to meet the stringent requirements of BGV C1 applications. Featuring an M8 male thread and side exit for the wire, this cable holder suits use in stage productions, fair booths, and other demanding environments. It is compatible with Ø2mm and Ø3mm steel wire ropes, ensuring a secure and reliable hold.

Key Features

  • Type 30SV Reutlinger Cable Holder
  • M8 Male thread for secure attachment
  • Side exit design for easy wire management
  • Compatible with Ø2mm and Ø3mm steel wire rope
  • Repositionable without damaging the cable, no tools required

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What does "side exit" mean on this cable holder, and when would I need it?
It means the wire rope exits from the side of the holder rather than straight through the centre, useful when the cable run needs to change direction close to the fixing point without extra bends in the wire itself.
Does the wire material affect the load rating on this cable holder?
Yes, significantly. On 3mm wire, galvanised steel is rated to 85Kg while stainless steel is rated to only 65Kg, so always check which wire type you're using against the correct WLL column.
What's the difference between the M8 and M10 Male versions?
Both share the same WLL table and wire diameter range, but the M8 version has a side exit for the wire and uses an M8 thread, while the M10 version has a straight in-line thread with no side exit.
