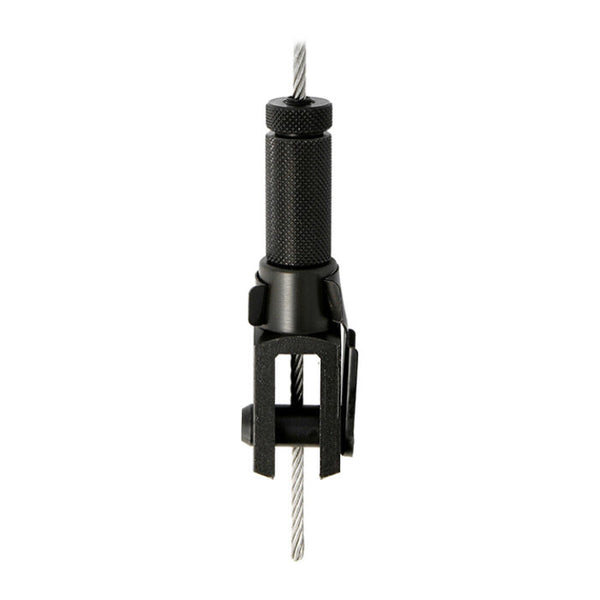

• Doughty 30SV with Fork - Black cable gripper for hanging system installation.

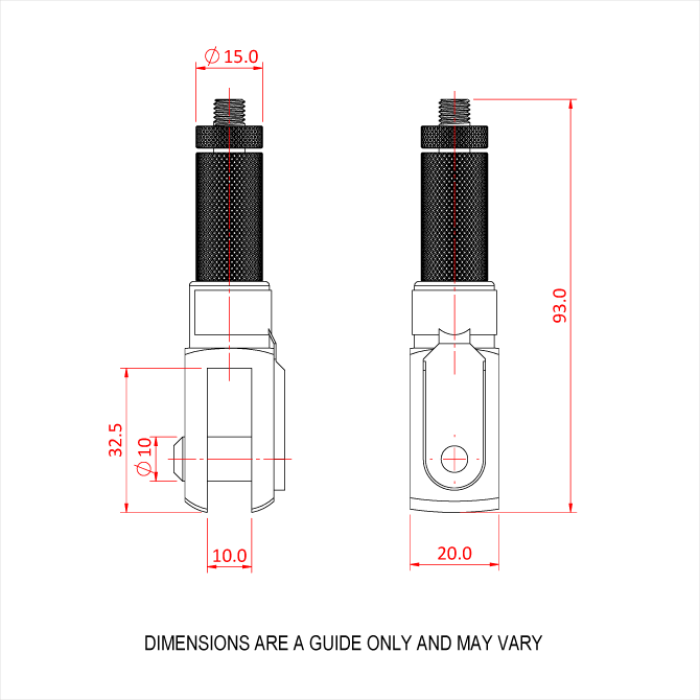

  • Doughty 30SV with Fork - Adjustable knurled handle with precise dimension markings. - imagen 2

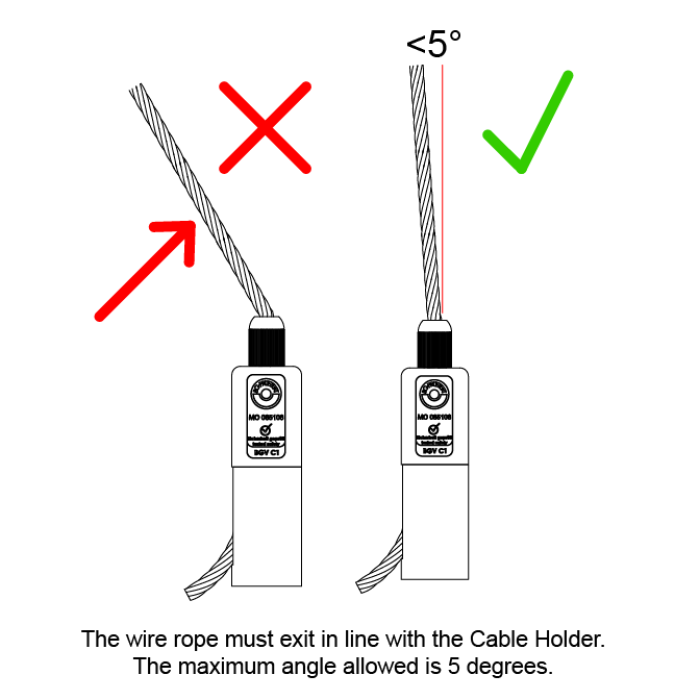

  • Doughty 30SV with Fork - Correct wire rope alignment in cable holder. - imagen 3

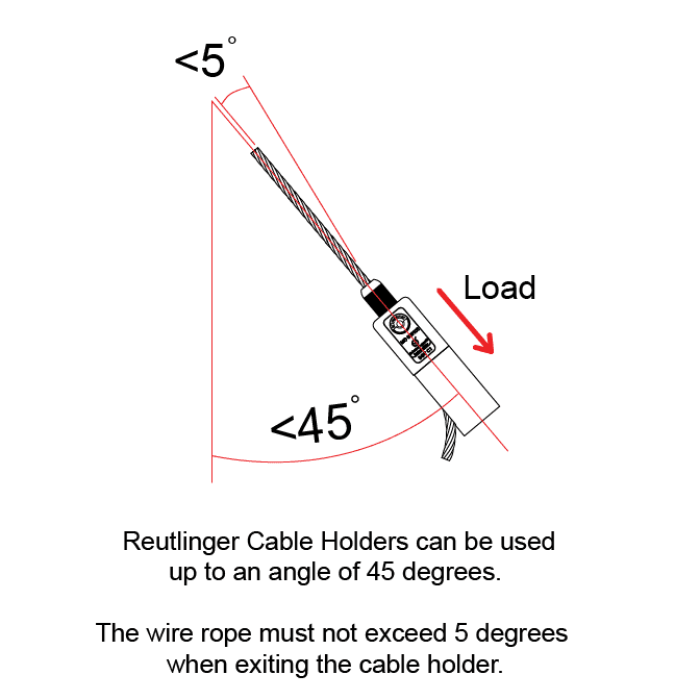

  • Doughty 30SV with Fork - Reutlinger cable holder angle usage guide. - imagen 4

Doughty 30SV with Fork

Doughty Engineering |
SKU: T37632
€29.29incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • BGV C1 Compliance. Ensures safe operation in professional environments - crucial for stage productions and exhibition booths.
  • Versatile Cable Management. Accommodates Ø2mm and Ø3mm steel wire ropes - provides secure support for all your cable needs.
  • WLL: 84Kg (3mm Stainless Steel Wire) / 102Kg (3mm Zinc Plated Wire). Always keep the applied load within this rated limit.
  • Durable Construction. Built for long-lasting use in demanding settings - ideal for live events, touring, and technical installations.
  • Professional Quality. Engineered to meet industry standards - trusted by technicians and professionals around the world.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 30SV with Fork

The Doughty 30SV with Fork is a versatile cable holder built for professional settings that require compliance with BGV C1 standards, such as stage productions and exhibition booths. Equipped with a fork, it is compatible with Ø2mm and Ø3mm steel wire ropes, making it an essential tool for secure and reliable cable management.

Key Features

  • Compatible with Ø2mm & Ø3mm steel wire ropes
  • Designed to meet BGV C1 compliance standards
  • Ideal for stage productions and fair booths
  • Repositionable without damaging the cable
  • No tools required for adjustments

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Does the wire material affect the load rating on this cable holder?
Yes, significantly. On 3mm wire, galvanised steel is rated to 85Kg while stainless steel is rated to only 65Kg, so always check which wire type you're using against the correct WLL column.
What's the difference between the Fork and Ring versions of the 30SV?
Both share the same WLL table and wire diameter range, but the Fork version terminates in a fork fitting for pin connections, while the Ring version has a closed ring for connecting directly to a shackle or hook.
Can I reposition this cable holder without damaging the wire?
Yes. It's designed to be repositioned along the wire rope by hand, without tools, and without damaging the cable itself.
