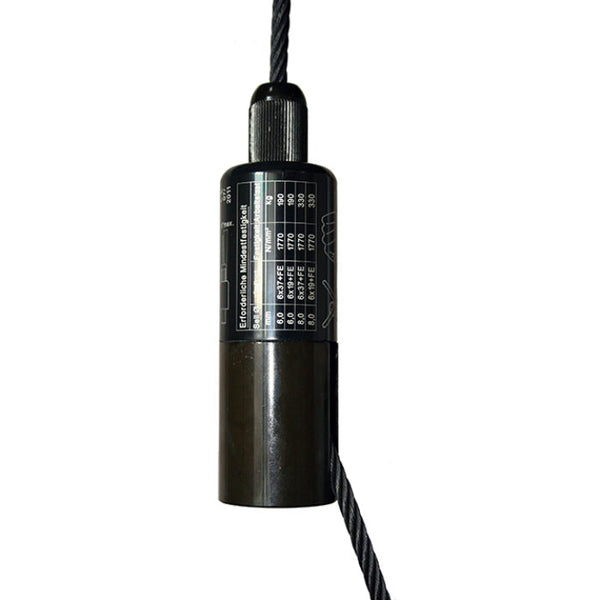

• Doughty 80SV III ZW M12 Female - Cable tension tester with measurement chart and black handle.

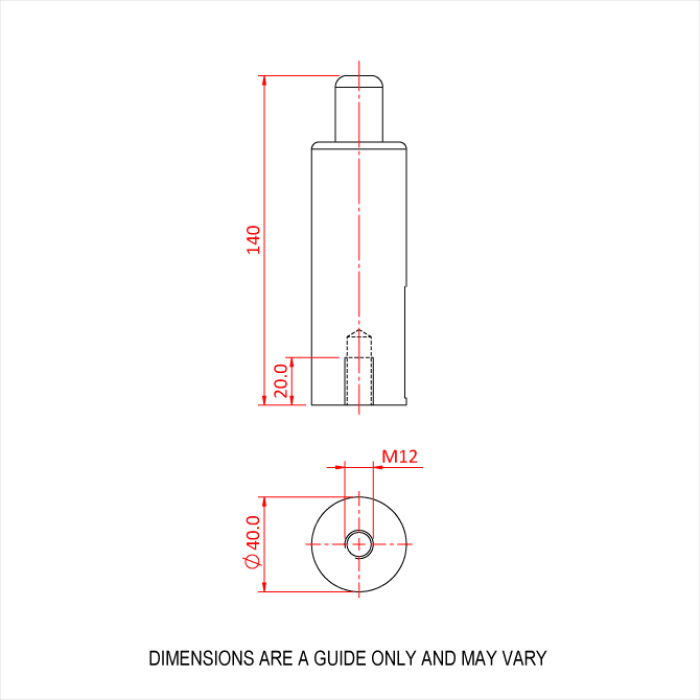

  • Doughty 80SV III ZW M12 Female - Steel component technical drawing, dimensions labeled M12, 140x40mm. - imagen 2

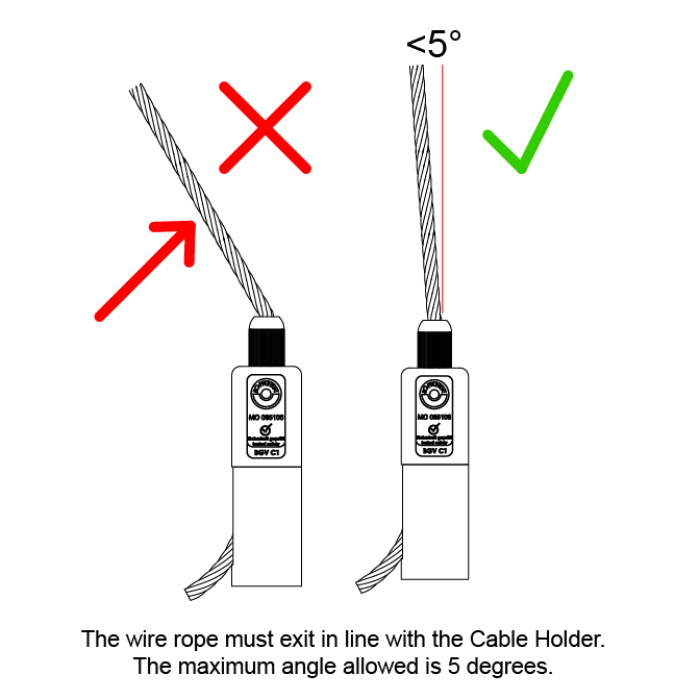

  • Doughty 80SV III ZW M12 Female - Cable holder wire alignment guidelines, maximum 5 degrees. - imagen 3

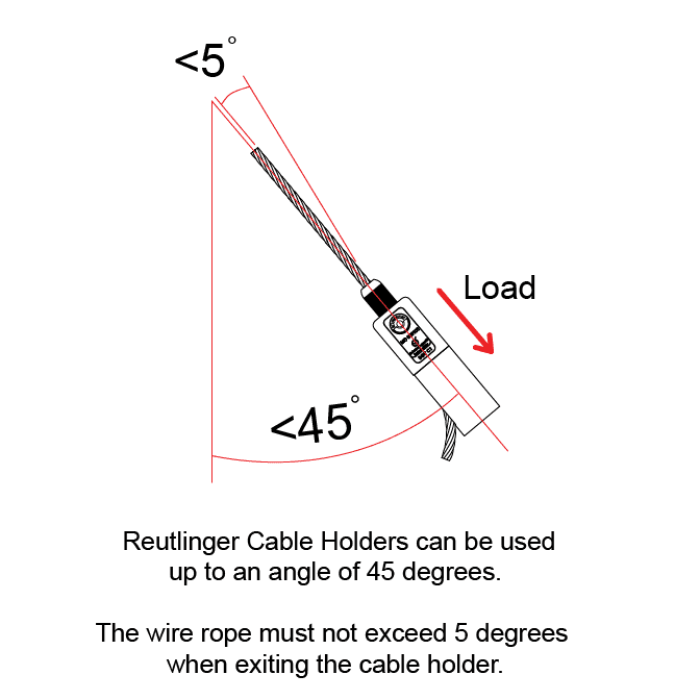

  • Doughty 80SV III ZW M12 Female - Reutlinger cable holder angled use guidelines illustration. - imagen 4

Doughty 80SV III ZW M12 Female

Doughty Engineering |
SKU: T37683
€102.16incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Superior Compatibility. Tailored for 6 and 8mm steel wire rope - perfect for a variety of production setups.
  • BGV C1 Compliance. Ensures safety standards for critical applications - ideal for stage productions and fair booths.
  • WLL: 135Kg (6mm) / 150Kg (6.35mm) / 240Kg (8mm). Always keep the applied load within this rated limit.
  • Durable Design. Built as a robust Type 80SV Reutlinger Cable Holder - engineered for the rigors of live events.
  • Convenient Side Exit. Reduces tangling and facilitates cable management - enhancing efficiency during performances.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 80SV III ZW M12 Female

The Doughty 80SV III ZW M12 Female is a sophisticated Type 80SV Reutlinger Cable Holder designed with an M12 Female thread and a convenient side exit for the wire. Well suited to use with 6 and 8mm steel wire rope, this cable holder is perfect for applications requiring BGV C1 compliance, such as stage productions and fair booths. Its design allows repositioning without damaging the cable and requires no tools for adjustment.

Key Features

  • Type 80SV Reutlinger Cable Holder
  • M12 Female thread with side exit
  • Compatible with 6 and 8mm steel wire rope
  • BGV C1 compliant for safety-critical applications
  • Tool-free cable repositioning

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Why does the 80SV use an M12 female thread while the male version on this range uses M20?
Doughty pairs different thread sizes with different fitting styles across the range rather than keeping one thread size fixed per capacity tier, so always match the thread size and gender to the stud or fitting you're actually connecting to, not just the WLL you need.
What's the benefit of a side exit wire on this threaded version?
It lets the wire angle away from the fixing point instead of routing straight through, useful when the cable needs to run off to the side of a structure rather than continuing in a straight line.
Does the female thread limit which fittings I can attach compared to a fork or ring?
It just changes the connection method. You'll need a matching M12 male stud, bolt, or fitting rather than a shackle or pin, so check what's already on your structure before choosing this version over the Fork or Ring options.
