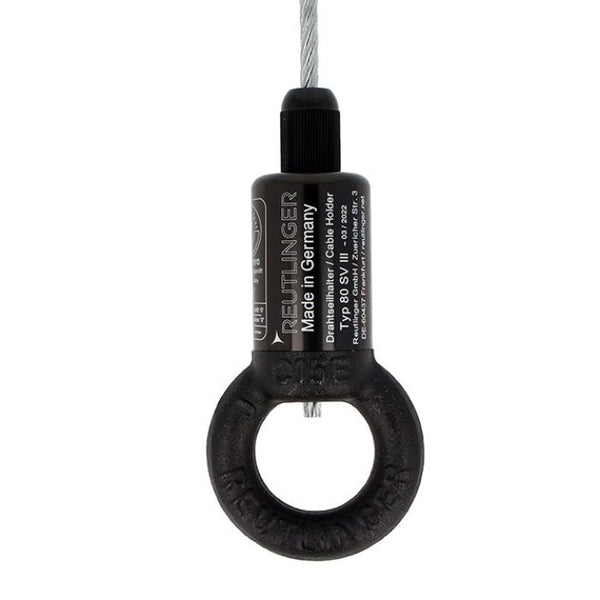

• Doughty 80SV III with Ring - Reutlinger cable holder, black, heavy-duty ring clamp.

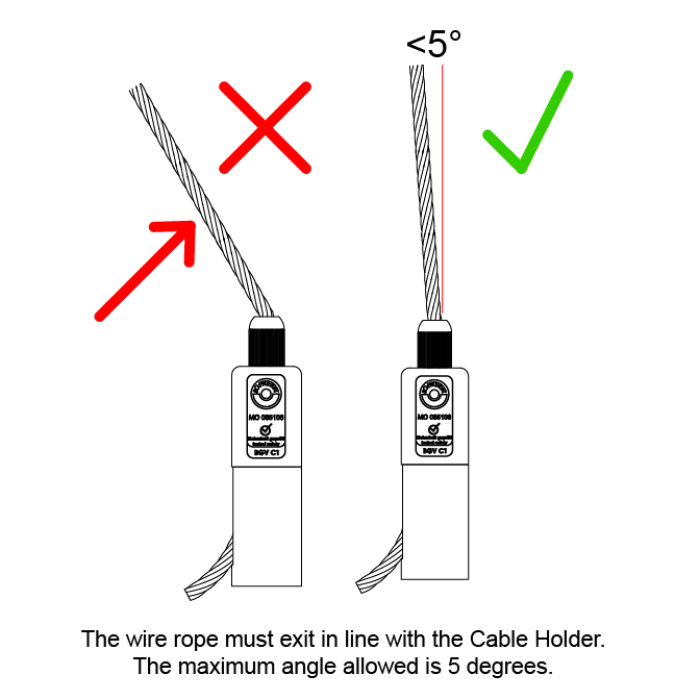

  • Doughty 80SV III with Ring - Cable holder wire alignment guide, maximum 5-degree angle. - imagen 2

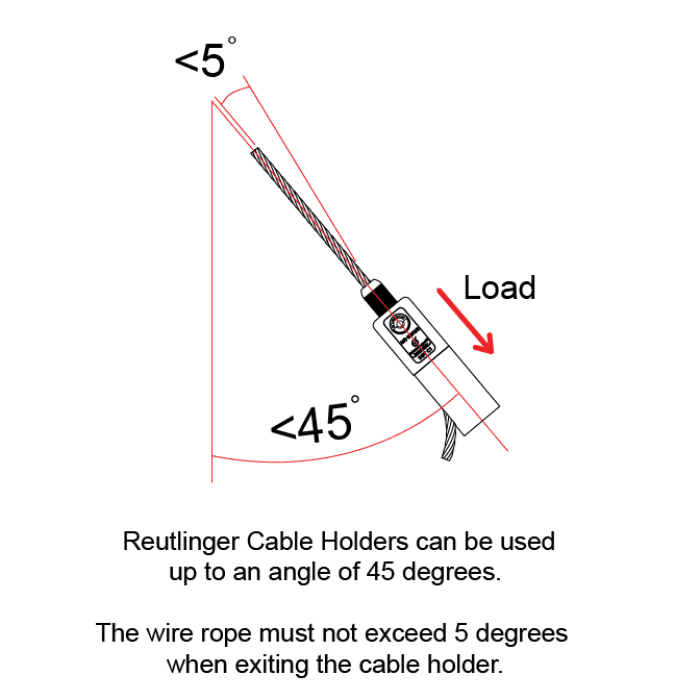

  • Doughty 80SV III with Ring - Cable holder diagram with angle - imagen 3

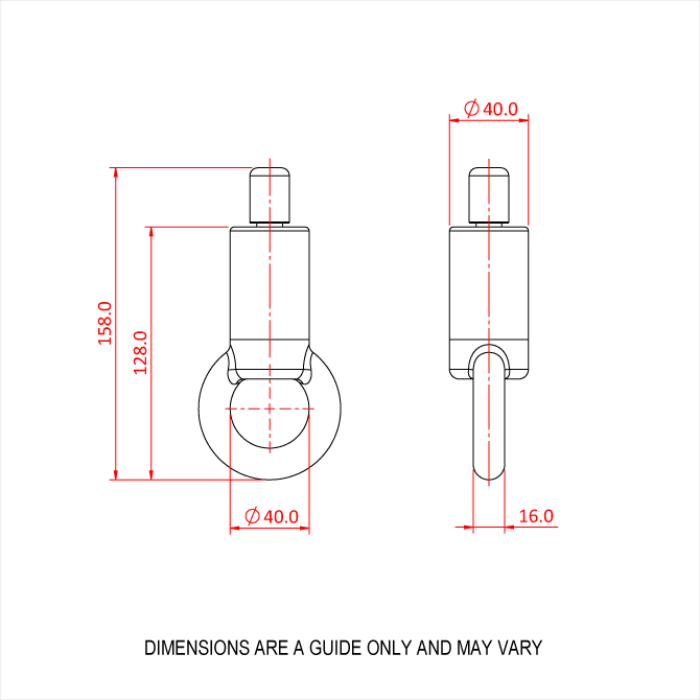

  • Doughty 80SV III with Ring - Technical drawing, tow bar, detailed dimensions, precise measurements. - imagen 4

Doughty 80SV III with Ring

Doughty Engineering |
SKU: T37681
€100.49incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • BGV C1 Compliance. Meets rigorous safety standards for cable management - essential for stage productions and fair booths.
  • WLL: 135Kg (6mm) / 150Kg (6.35mm) / 240Kg (8mm). Always keep the applied load within this rated limit.
  • Tool-Free Adjustments. Quick and convenient setup - saves time and effort during installation and rigging.
  • Versatile Compatibility. Accommodates both 6 and 8mm steel wire ropes - offers flexibility for various rigging needs.
  • Specialized Design. Tailored for demanding environments - perfect for professionals in theatre and live production settings.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 80SV III with Ring

The Doughty 80SV III with Ring is a specialized Type 80SV Reutlinger Cable Holder designed to meet the stringent demands of BGV C1 compliance. Perfect for stage productions, fair booths, and similar applications, this cable holder accommodates 6 and 8mm steel wire ropes. It features a convenient ring and allows for repositioning without cable damage or the need for tools.

Key Features

  • Compatible with 6 and 8mm steel wire ropes
  • Designed for BGV C1 compliance
  • Repositionable without damaging cables
  • Tool-free adjustment
  • Ideal for stage productions and fair booths

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What's the working load if I'm rigging with 6mm wire but the holder is rated up to 240Kg?
135Kg. The 240Kg figure only applies when using 8mm wire, so don't assume the top rating applies regardless of which wire diameter is actually installed.
What kind of connector should I use with the ring on an 80SV holder given the higher loads involved?
A shackle or connector rated to at least the load you're applying, matched to the ring's size. At these higher capacities, it's worth checking the ring's rated diameter against your shackle's pin size before rigging.
Is the 80SV with Ring interchangeable with the 66SV with Ring in terms of fittings?
No. Although both use a ring fitting, the 80SV is built for thicker wire and higher loads, so the ring and body are sized differently and shouldn't be assumed compatible with 66SV connectors without checking dimensions.
