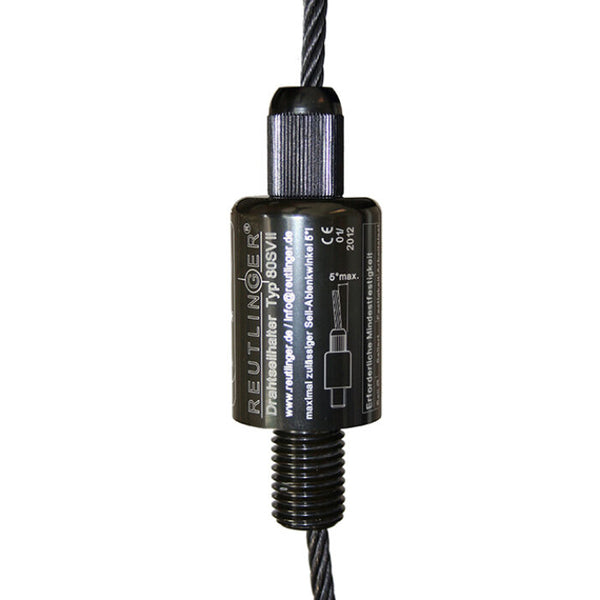

• Doughty 80SV III M20 Male - Reutlinger wire rope holder, black, heavy-duty.

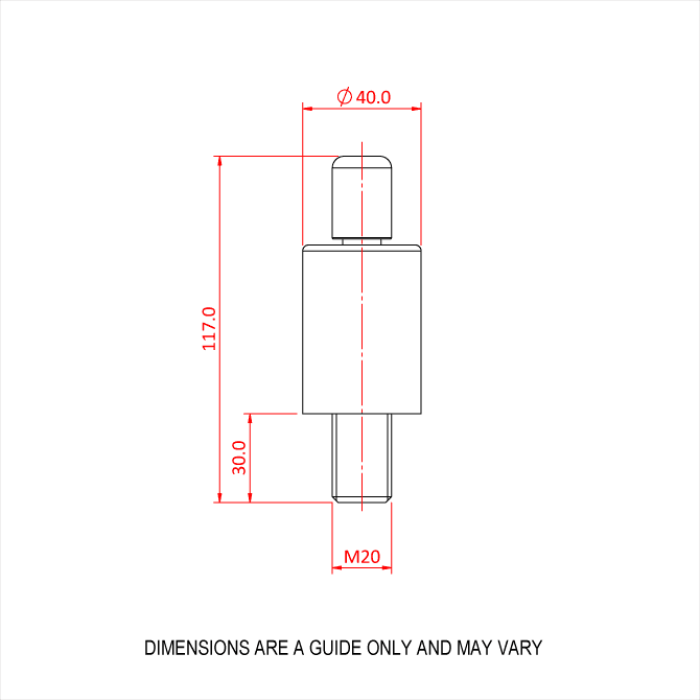

  • Doughty 80SV III M20 Male - Cylindrical metal component with precise dimensions labeled. - imagen 2

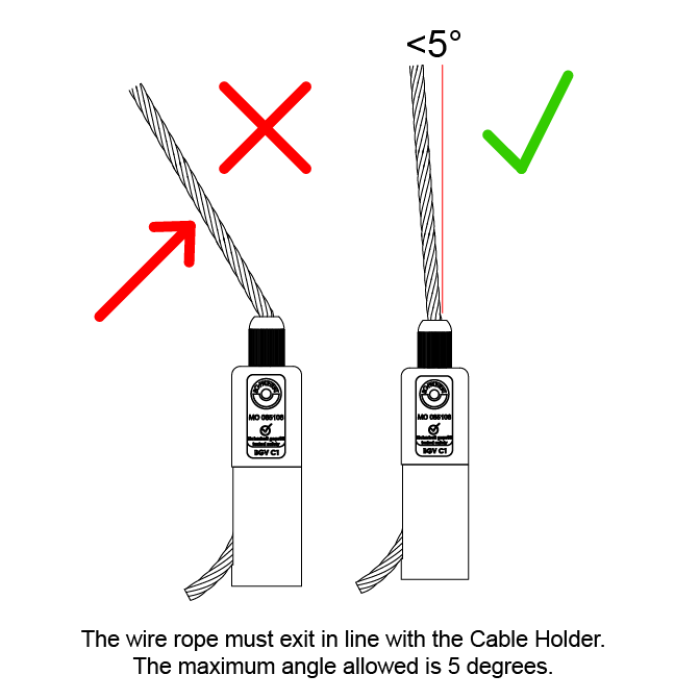

  • Doughty 80SV III M20 Male - Cable holder wire alignment instructions, maximum angle 5 degrees. - imagen 3

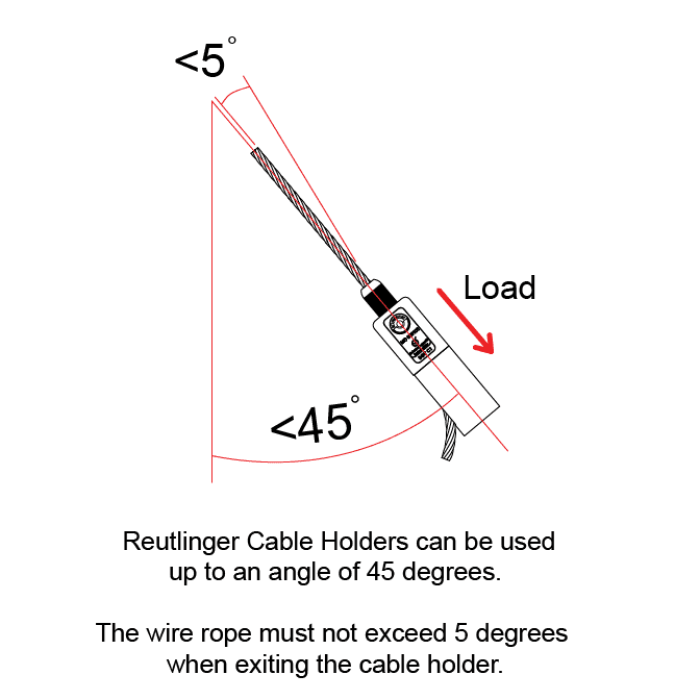

  • Doughty 80SV III M20 Male - Reutlinger cable holder angle guidelines diagram. - imagen 4

Doughty 80SV III M20 Male

Doughty Engineering |
SKU: T37680
€100.88incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • High Compatibility. Seamlessly works with 6 and 8mm steel wire ropes - ideal for stage productions and exhibition setups.
  • Enhanced Safety. BGV C1 compliant for trusted reliability in safety-critical applications - peace of mind for professional users.
  • WLL: 135Kg (6mm) / 150Kg (6.35mm) / 240Kg (8mm). Always keep the applied load within this rated limit.
  • Precision Engineering. Built as a Type 80SV Reutlinger Cable Holder with M20 Male thread - ensuring robust performance for rigging needs.
  • Versatile Use. Perfect for theatre, film, and live events - designed to meet the demands of high-stakes environments.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 80SV III M20 Male

The Doughty 80SV III M20 Male is a precision-engineered Type 80SV Reutlinger Cable Holder, featuring an M20 Male thread. Built for versatility and reliability, it is compatible with 6 and 8mm steel wire ropes, making it an ideal choice for environments that require adherence to BGV C1 standards, such as stage productions and exhibition booths.

Key Features

  • Type 80SV Reutlinger Cable Holder
  • M20 Male thread compatibility
  • Suitable for 6 and 8mm steel wire ropes
  • BGV C1 compliant for safety-critical applications
  • Tool-free repositioning without cable damage

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What's the biggest jump in capacity from the 66SV to the 80SV range?
The 80SV adds support for 8mm wire at 240Kg, well above the 66SV's maximum of 150Kg on 6.35mm wire, making it the choice for the heaviest fixtures or thickest wire rope in Doughty's Reutlinger range.
Why does an M20 thread matter compared to the smaller M16 used on the 66SV?
The larger M20 thread matches the increased load path needed for the higher WLL ratings this holder supports, so it isn't interchangeable with M16 fittings from the smaller 66SV range.
Is 6mm wire underutilising an 80SV holder, since it also takes 8mm?
Not necessarily. If your rig standardises on 6mm wire throughout, using an 80SV holder still gives you the option to upgrade to 8mm later without changing the hardware, even though the 135Kg rating at 6mm is lower than the 240Kg maximum.
