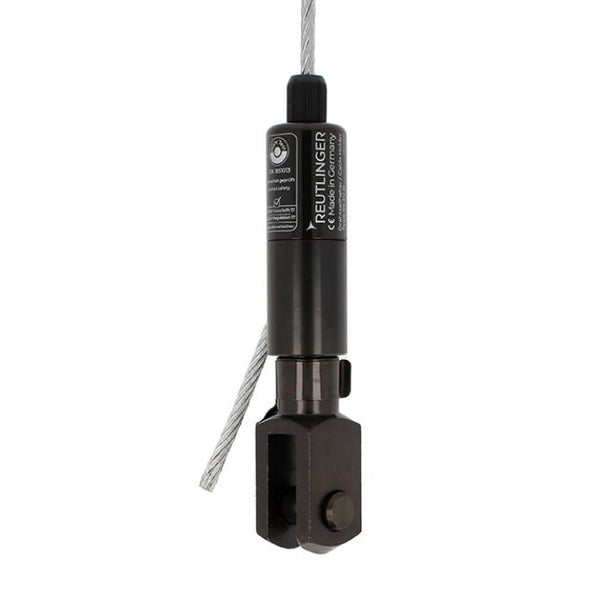

• Doughty 66SV III ZW with Fork-Side Exit Wire - Reutlinger cable suspension lock, black, industrial use.

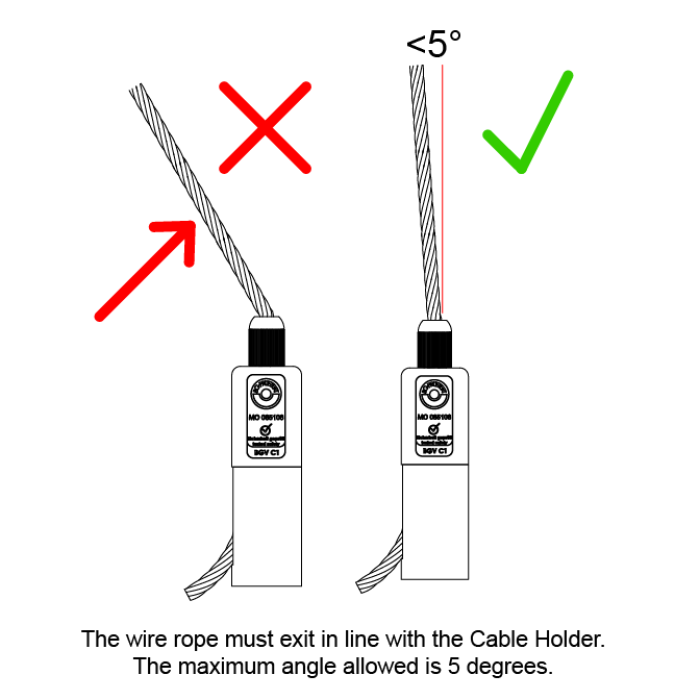

  • Doughty 66SV III ZW with Fork-Side Exit Wire - Cable holder with correct wire alignment guide. - imagen 2

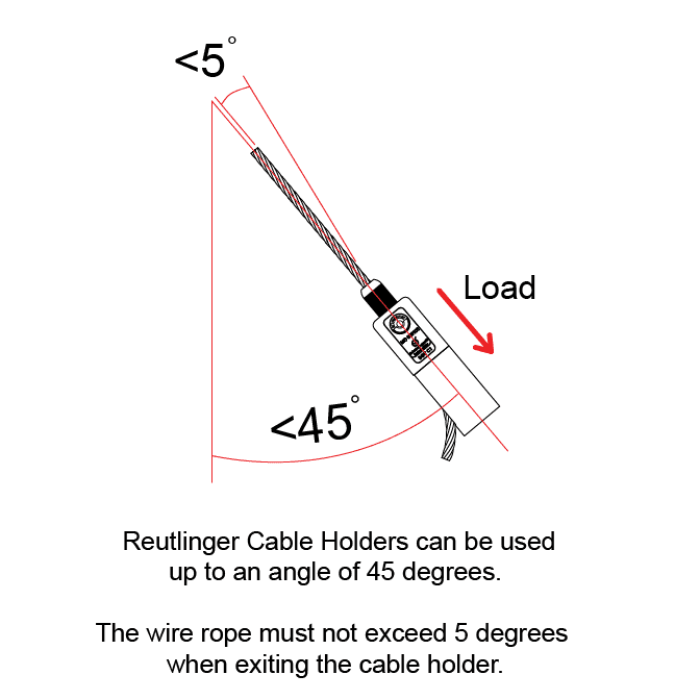

  • Doughty 66SV III ZW with Fork-Side Exit Wire - Reutlinger cable holders with angle specifications and usage instructions. - imagen 3

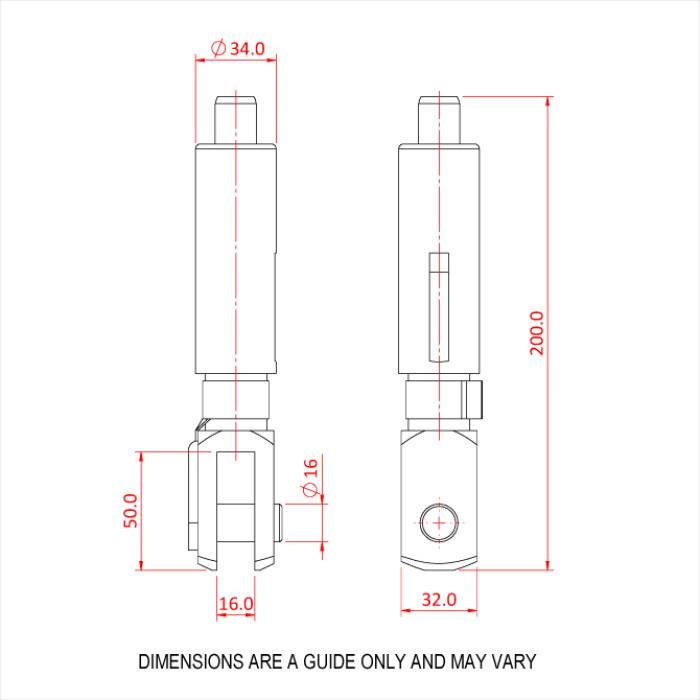

  • Doughty 66SV III ZW with Fork-Side Exit Wire - Hydraulic cylinder design with detailed dimensional specifications. - imagen 4

Doughty 66SV III ZW with Fork-Side Exit Wire

Doughty Engineering |
SKU: T37665
€81.11incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Precision Cable Management. Securely holds 6mm steel wire rope - designed for demanding environments like stage productions and fair booths.
  • Fork-Side Exit Design. Efficiently directs wires for hassle-free installations - ideal for maintaining a tidy setup during live events.
  • BGV C1 Compliance. Ensures high safety standards in your rigging - crucial for professional use in TV, film, and theatre.
  • WLL: 90Kg (5mm) / 135Kg (6mm) / 150Kg (6.35mm/1/4in). Always keep the applied load within this rated limit.
  • Durable and Reliable. Built to withstand the rigors of live performances - guarantees long-lasting performance in the field.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 66SV III ZW with Fork-Side Exit Wire

The Doughty 66SV III ZW with Fork-Side Exit Wire is a purpose-built cable holder built for precision and reliability. With its fork and side exit configuration, it is perfectly suited for 6mm steel wire rope, making it an ideal choice for demanding environments such as stage productions and fair booths. This product ensures compliance with BGV C1 standards, offering flexibility and safety in your installations.

Key Features

  • Compatible with 6mm steel wire rope
  • Fork-side exit for efficient wire management
  • Compliant with BGV C1 standards for safety
  • Repositionable without cable damage
  • No tools required for installation

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What situation calls for a fork fitting with a side exit rather than a straight-through fork?
When the wire rope needs to run off at an angle or change direction close to the holder, such as tying back to a nearby structure, rather than continuing straight up or down from the fixing point.
How does this compare to the 66SV III with Fork (non-ZW) in terms of load rating?
They're identical: both are rated 90Kg on 5mm, 135Kg on 6mm, and 150Kg on 6.35mm wire. The only difference is the side exit wire routing on this ZW version.
Is a mounting pin included with the fork, or do I need to source one separately?
Check the product's data sheet or packaging for the exact fixings supplied, since a compatible pin is typically required to complete the fork connection to your fixture or connector.
