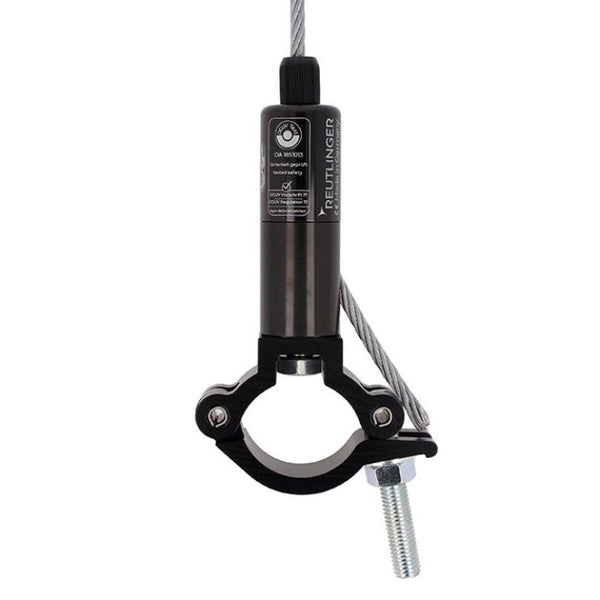

• Doughty 66SV III ZW with Clamp - Heavy-duty cable suspension clamp with bolt attachment.

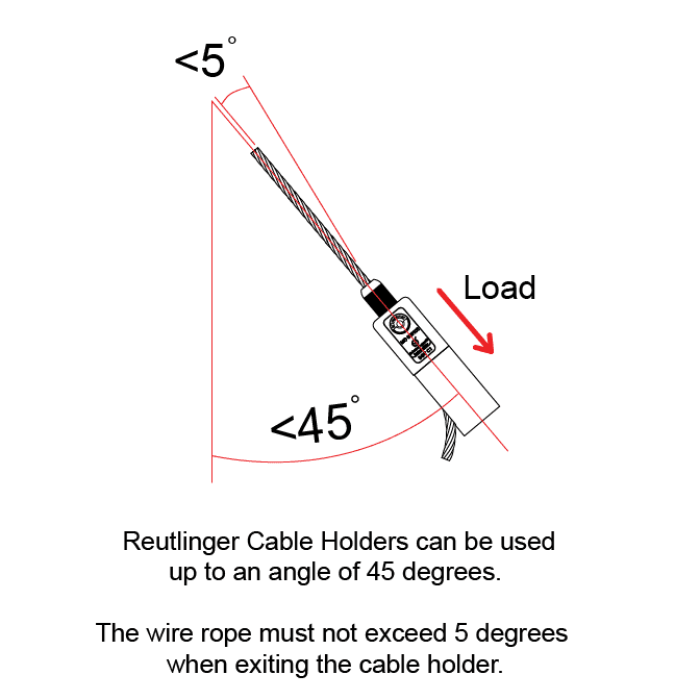

  • Doughty 66SV III ZW with Clamp - Reutlinger Cable Holders, maximum 45 degrees load angle. - imagen 2
  • Doughty 66SV III ZW with Clamp - Telescopic front fork assembly with detailed measurements. - imagen 3

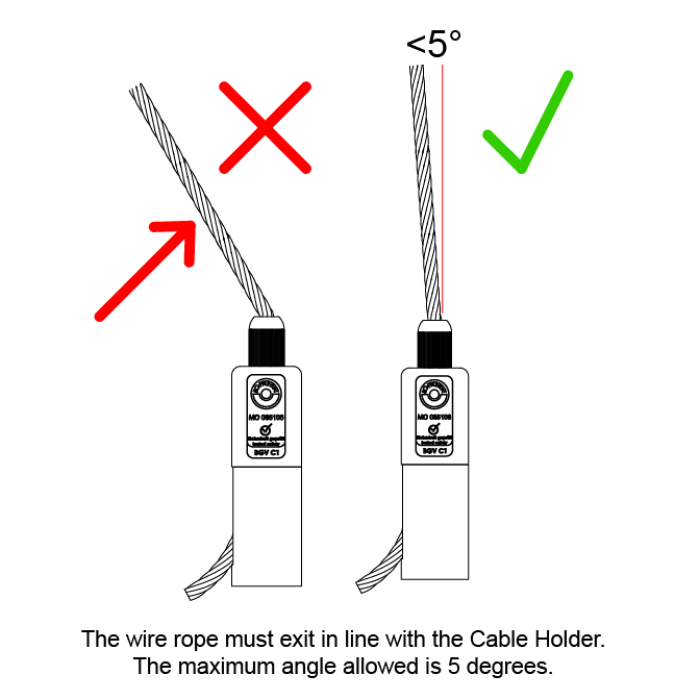

  • Doughty 66SV III ZW with Clamp - Cable holder wire alignment guide, maximum angle 5 degrees. - imagen 4

Doughty 66SV III ZW with Clamp

Doughty Engineering |
SKU: T37664
€115.96incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Secure Cable Management. Keeps your cables organized and secure - features a Type 66SV Reutlinger Cable Holder for reliable performance.
  • Enhanced Stability. Provides a solid connection for your rigging needs - includes a robust T58081 half coupler.
  • Streamlined Wire Routing. Reduces clutter and improves safety on set - designed with a side exit for 6mm steel wire rope.
  • BGV C1 Compliance. Ensures adherence to industry safety standards - ideal for stage productions and trade fair booths.
  • WLL: 90Kg (5mm) / 135Kg (6mm) / 150Kg (6.35mm/1/4in). Always keep the applied load within this rated limit.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 66SV III ZW with Clamp

The Doughty 66SV III ZW with Clamp is an expertly designed cable holder, featuring a Type 66SV Reutlinger Cable Holder paired with a T58081 half coupler. Engineered for precision and reliability, it includes a side exit for the wire, making it particularly suitable for applications using 6mm steel wire rope. Well suited to environments requiring compliance with BGV C1 standards, such as stage productions and trade fair booths, this product ensures safety and versatility.

Key Features

  • Type 66SV Reutlinger Cable Holder for secure cable management.
  • Fitted with a T58081 half coupler for enhanced stability.
  • Side exit design for streamlined wire routing.
  • Designed for 6mm steel wire rope, meeting BGV C1 compliance.
  • Repositionable without damaging the cable; no tools required.

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Can I attach this cable holder straight onto standard truss without other hardware?
Yes. It comes fitted with a T58081 half coupler, so it clamps directly onto 48-51mm truss tube without needing a separate thread, ring, or fork connection.
How does the clamp version compare to the M16 Female version for mounting to a bar?
The clamp version bolts straight onto the tube itself, while the M16 Female version needs a matching threaded stud or fitting already in place on the structure. Choose the clamp version when you're attaching directly to a plain tube or truss.
What's the highest load this clamp-mounted holder can take?
150Kg, using 6.35mm wire. Ratings drop to 135Kg on 6mm wire and 90Kg on 5mm wire, so match your wire diameter to the load you actually need.
