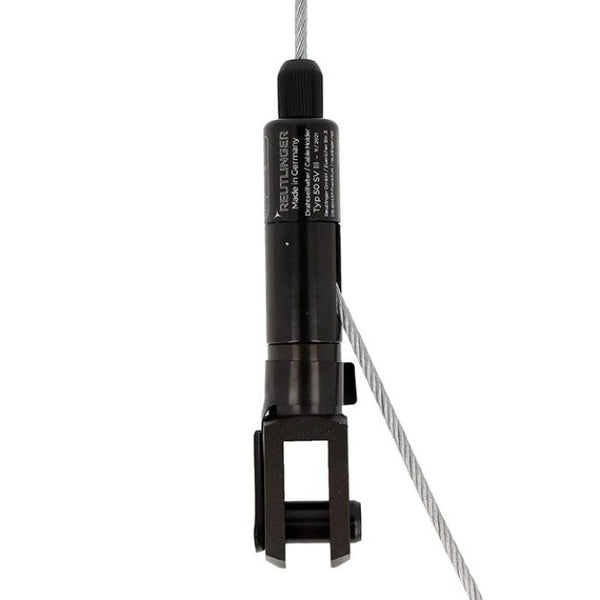

• Doughty 50SV III ZW with Fork-Side Exit Wire - Adjustable black cable hanging clamp mechanism.

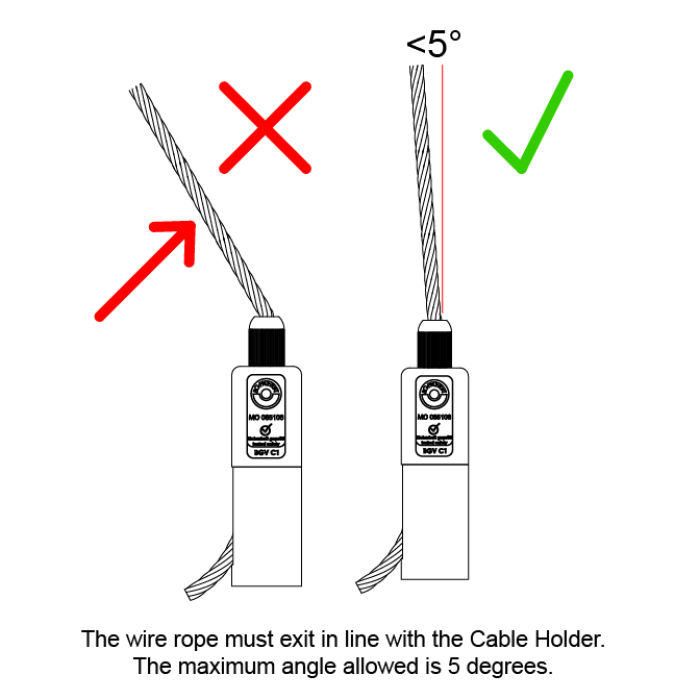

  • Doughty 50SV III ZW with Fork-Side Exit Wire - Wire rope alignment guide with cable holder instructions. - imagen 2

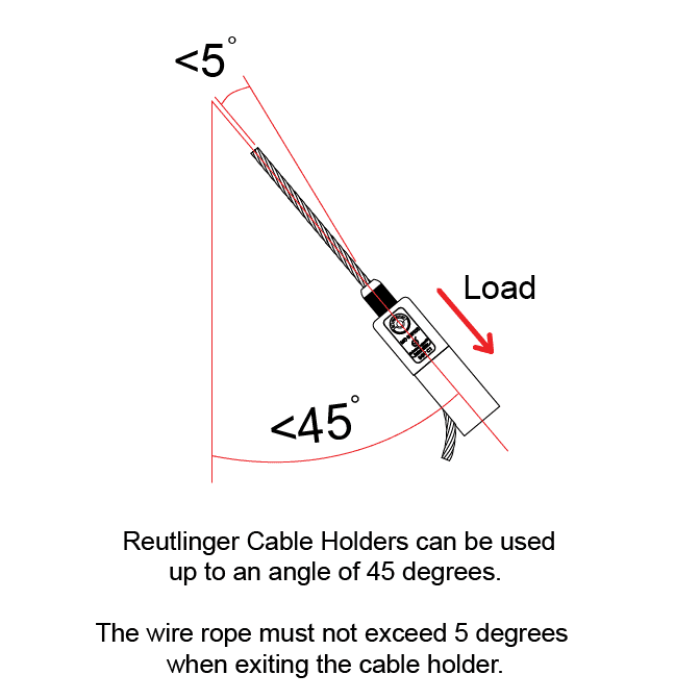

  • Doughty 50SV III ZW with Fork-Side Exit Wire - Reutlinger cable holder angle instructions, wire rope guide. - imagen 3

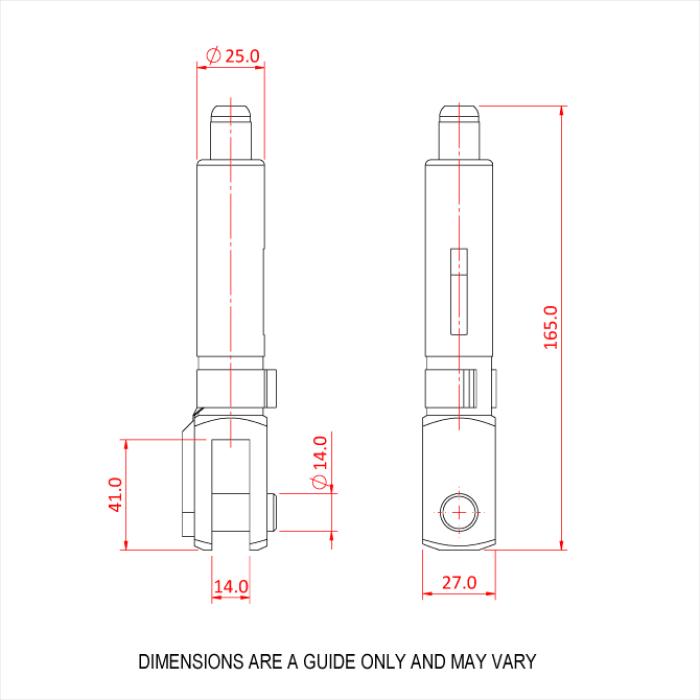

  • Doughty 50SV III ZW with Fork-Side Exit Wire - Linear actuator technical drawing with dimensions marked in red. - imagen 4

Doughty 50SV III ZW with Fork-Side Exit Wire

Doughty Engineering |
SKU: T37655
€54.82incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Enhanced Usability. Fork-side exit design allows for easy wire management - perfect for stage productions and live events.
  • Compliant Standards. Meets BGV C1 safety regulations for added peace of mind - essential for theatre and trade shows.
  • Versatile Compatibility. Designed for 4 or 5mm steel wire ropes to fit various applications - reliable performance in any rigging setup.
  • WLL: 60Kg (4mm Wire) / 90Kg (5mm Wire). Always keep the applied load within this rated limit.
  • Tool-Free Convenience. No tools needed for adjustments, ensuring rapid reconfiguration - saves time during live events and productions.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 50SV III ZW with Fork-Side Exit Wire

The Doughty 50SV III ZW with Fork-Side Exit Wire is a highly specialized cable holder designed to meet the stringent demands of professional applications. With its innovative fork-side exit for the wire, this Reutlinger Type 50SV cable holder suits use with 4 or 5mm steel wire ropes, ensuring compliance with BGV C1 standards essential for stage productions, fair booths, and more.

Key Features

  • Designed for 4 or 5mm steel wire ropes
  • Compliance with BGV C1 standards
  • Fork-side exit wire design for enhanced usability
  • Repositionable without cable damage
  • No tools required for adjustments

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What's the benefit of a side exit wire combined with a fork fitting?
It combines the pinned fork connection with a side wire exit, useful when you need a pin-style attachment but the cable run needs to change direction near the holder rather than passing straight through.
Is a connecting pin included with this fork fitting, or sold separately?
Check the product data sheet or packaging for exact fixings supplied, since a compatible pin or bolt is generally needed to complete the fork connection.
Which 50SV III variant should I pick if I don't need the side exit feature?
The standard 50SV III with Fork (non-ZW) offers the same 60Kg (4mm) and 90Kg (5mm) WLL without the side exit, so choose that version if your wire routes straight through without needing to change direction.
