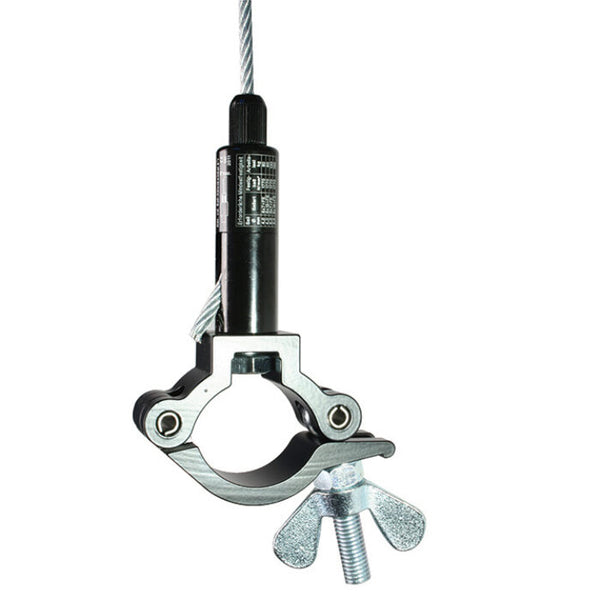

• Doughty 50SV III ZW with Clamp - Heavy-duty cable clamp with adjustable bolt mechanism.

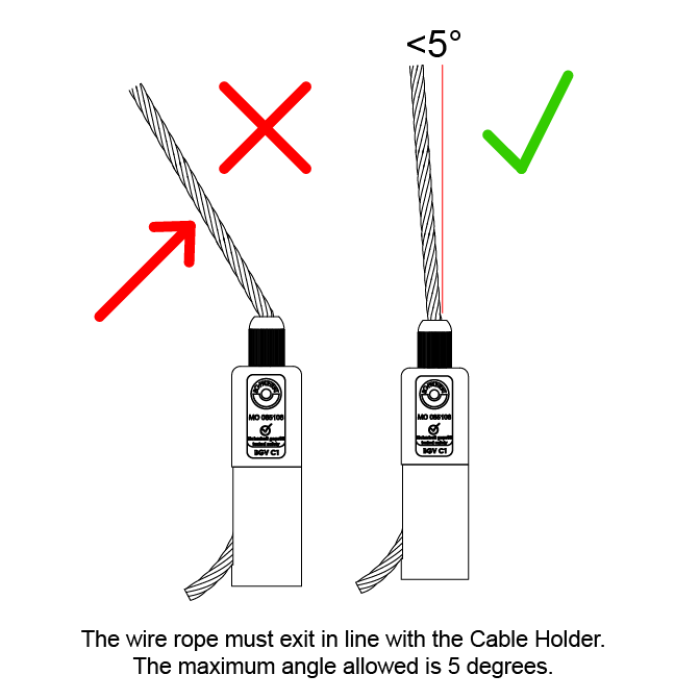

  • Doughty 50SV III ZW with Clamp - Cable holder wire alignment guide, maximum 5 degrees. - imagen 2

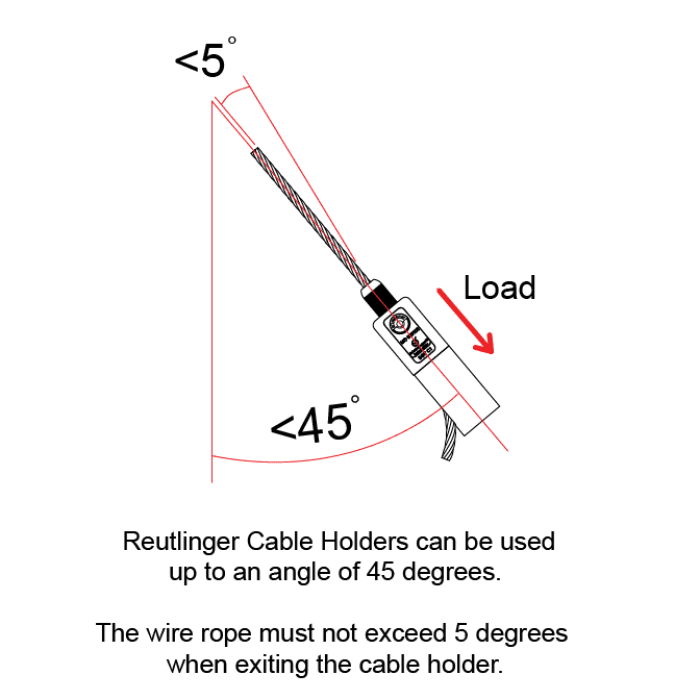

  • Doughty 50SV III ZW with Clamp - Reutlinger cable holders, adjustable 45-degree angle wire support. - imagen 3
  • Doughty 50SV III ZW with Clamp - Exhaust valve with detailed dimensions and specifications. - imagen 4

Doughty 50SV III ZW with Clamp

Doughty Engineering |
SKU: T37654
€85.45incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Versatile Cable Management. Securely holds 4 or 5mm steel wire rope - ideal for stage productions and fair booths.
  • BGV C1 Compliant. Ensures safety and reliability in demanding environments - meets industry-standard regulations for rigging.
  • WLL: 60Kg (4mm Wire) / 90Kg (5mm Wire). Always keep the applied load within this rated limit.
  • Integrated Clamp. Includes a T58081 half coupler for easy attachment - simplifies installation and dismantling processes.
  • Side Exit Design. Facilitates optimal wire management - keeps production spaces organized and free from hazards.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 50SV III ZW with Clamp

The Doughty 50SV III ZW with Clamp is a sophisticated cable holder solution built for demanding environments such as stage productions and fair booths. This product features a Type 50SV Reutlinger Cable Holder, paired with a T58081 half coupler and a convenient side exit for the wire, ensuring both versatility and compliance with BGV C1 standards.

Key Features

  • Type 50SV Reutlinger Cable Holder
  • Fitted with T58081 half coupler
  • Side exit for wire management
  • Compatible with 4 or 5mm steel wire rope
  • Repositionable without cable damage

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What does the T58081 clamp on this cable holder attach to?
It's a half coupler fitted directly to the holder, letting you attach the whole assembly onto a 48-51mm tube or truss bar, rather than needing a separate fixing point like a thread or bolt.
Can I mount this cable holder on standard truss without extra hardware?
Yes. Since it comes fitted with the T58081 half coupler, it clamps directly onto 48-51mm tube, which is the standard size for most truss and bar rigging.
How does this compare to the 30SV cable holders in terms of tube compatibility?
The 30SV range attaches via threads, forks, rings, or hooks rather than a tube clamp, so it isn't designed to mount directly onto truss the way this 50SV clamp version does.
