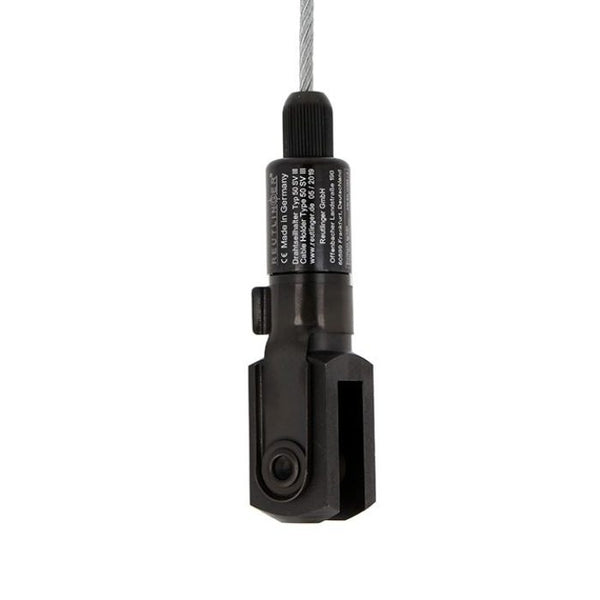

• Doughty 50SV III with Fork - Black industrial wire rope tensioning device.

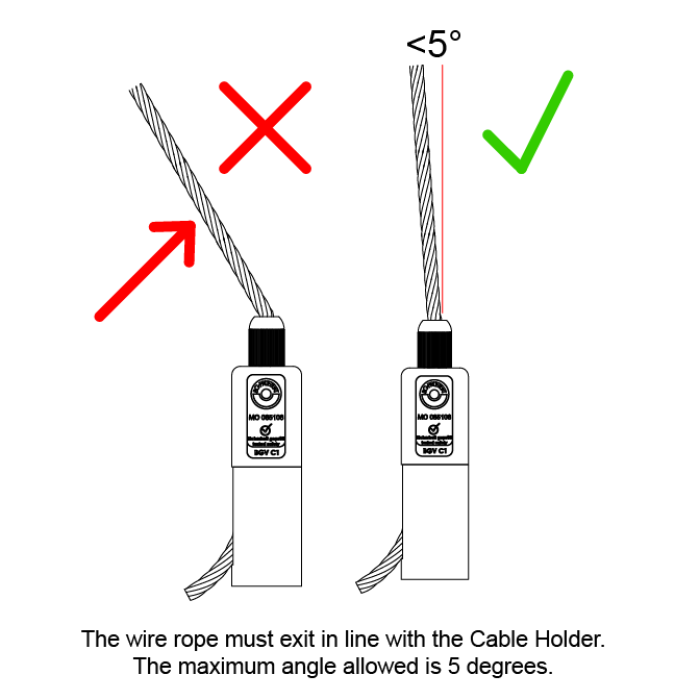

  • Doughty 50SV III with Fork - Wire rope cable holder alignment guidance diagram. - imagen 2

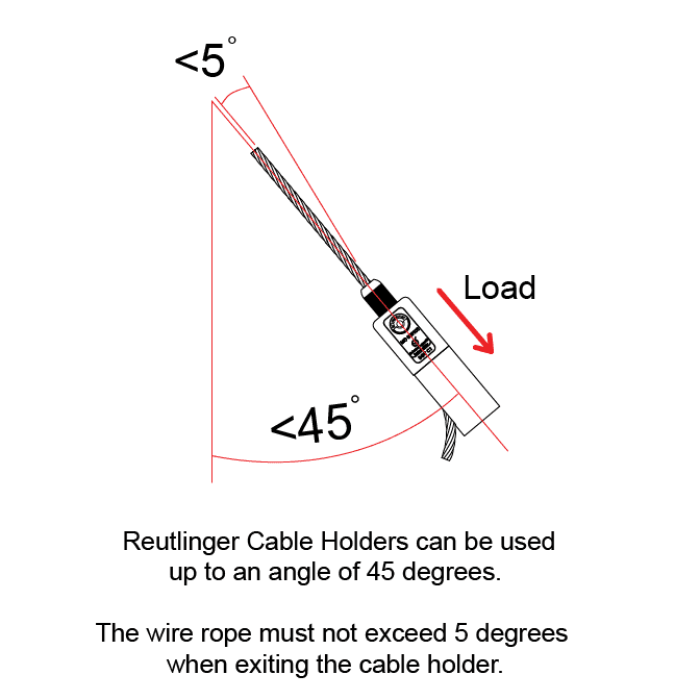

  • Doughty 50SV III with Fork - Reutlinger cable holder load angles illustration. - imagen 3

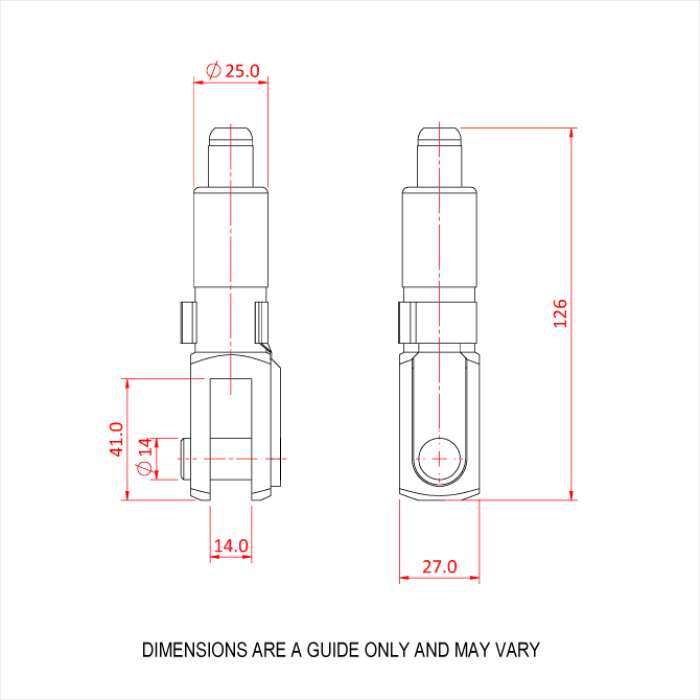

  • Doughty 50SV III with Fork - Metal swivel joint diagram with detailed measurements. - imagen 4

Doughty 50SV III with Fork

Doughty Engineering |
SKU: T37652
€51.64incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • BGV C1 Compliance. Meets strict safety standards for professional environments - ideal for stage productions and fair booths.
  • WLL: 60Kg (4mm wire) / 90Kg (5mm wire). Always keep the applied load within this rated limit.
  • Versatile Cable Compatibility. Accommodates both 4 and 5mm steel wire ropes - perfect for various rigging needs.
  • Robust Design. Built to endure the rigors of daily professional use - reliable for touring and live events.
  • User-Friendly Operation. Innovative design prevents cable damage during adjustments - ensures your gear stays in top condition.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 50SV III with Fork

The Doughty 50SV III with Fork is a sturdy, adaptable cable holder designed to meet the strict demands of BGV C1 compliance, making it well suited to stage productions, fair booths, and other professional settings. Its clever design allows for easy repositioning without causing damage to the cable, and it requires no tools for adjustment, providing a user-friendly solution for securing 4 or 5mm steel wire ropes.

Key Features

  • Designed for 4 or 5mm steel wire ropes
  • Compliance with BGV C1 standards
  • Tool-free adjustment and repositioning
  • Durable and reliable for professional use

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What's the difference between the Fork and Ring versions of the 50SV III?
Both share the same 60Kg (4mm) and 90Kg (5mm) WLL, but the Fork version terminates in a pinned fork connection, while the Ring version has a closed ring that needs a separate shackle or carabiner to attach to a fixture.
Can this cable holder handle both 4mm and 5mm wire, or do I need a specific size?
It's rated for both. Use 5mm wire if you need the higher 90Kg rating, or 4mm wire for the 60Kg rating, matching the wire to your actual load requirement.
Does the fork fitting need a separate pin, or is it supplied?
Check the product's data sheet or packaging for exact fixings included, since a matching pin or bolt is typically needed to complete the fork connection to your fixture or connector.
