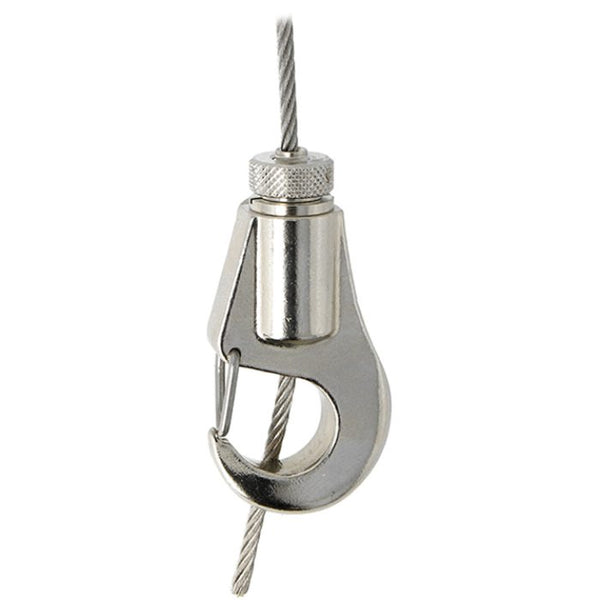

• Doughty 30SV with Hook - Steel cable hook suspension system, adjustable grip lock.

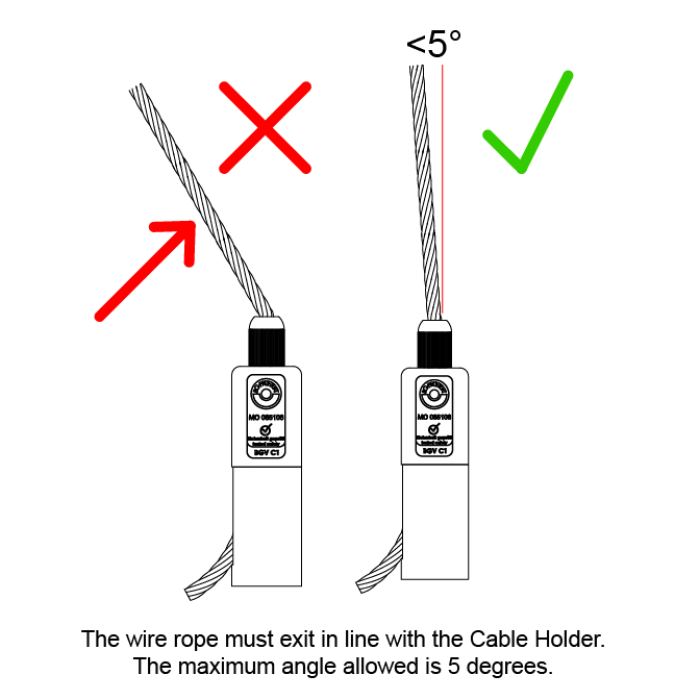

  • Doughty 30SV with Hook - Cable holder installation with correct alignment instructions. - imagen 2

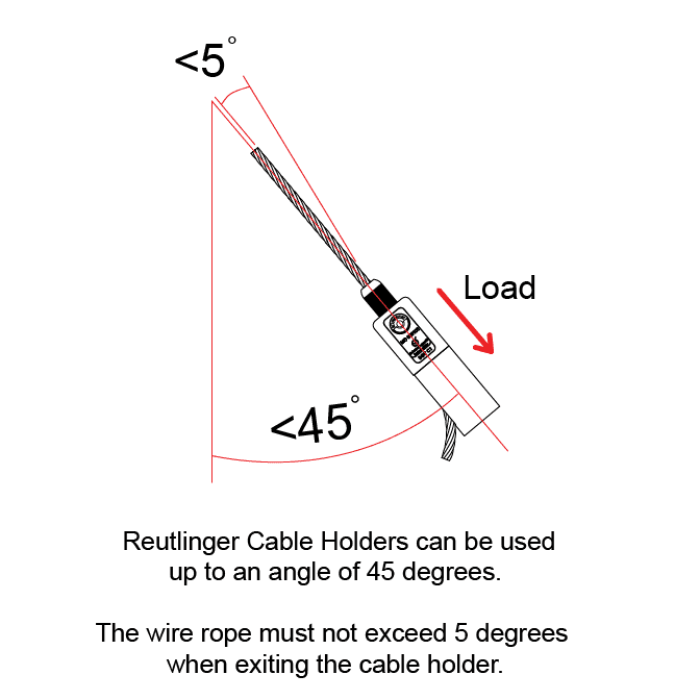

  • Doughty 30SV with Hook - Reutlinger cable holders with angle limitations diagram. - imagen 3

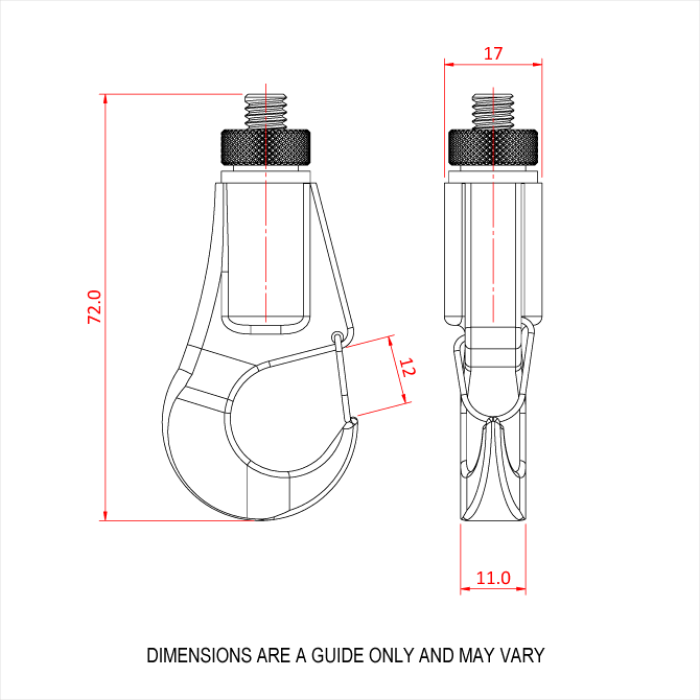

  • Doughty 30SV with Hook - Metal carabiner clip with screw lock, technical dimensions. - imagen 4

Doughty 30SV with Hook

Doughty Engineering |
SKU: T37634
€23.63incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Versatile Compatibility. Effortlessly holds Ø2mm and Ø3mm steel wire ropes - perfect for stage setups and exhibition booths.
  • BGV C1 Compliant. Meets strict safety standards for professional use - ideal for touring and live event applications.
  • WLL: 84Kg (3mm Stainless Steel Wire) / 102Kg (3mm Zinc Plated Wire). Always keep the applied load within this rated limit.
  • Practical Hook Design. Enhances functionality and adaptability - essential for dynamic rigging configurations.
  • Repositionable Feature. Adjust without damaging cables - ensures a clean and secure installation every time.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 30SV with Hook

The Doughty 30SV with Hook is a sturdy, adaptable Reutlinger cable holder, expertly designed to meet the demanding needs of stage productions, fair booths, and similar applications. This Type 30SV holder is equipped with a convenient hook and is suitable for Ø2mm and Ø3mm steel wire ropes, ensuring compliance with BGV C1 standards.

Key Features

  • Compatible with Ø2mm and Ø3mm steel wire ropes.
  • Designed for applications requiring BGV C1 compliance.
  • Equipped with a practical hook for enhanced versatility.
  • Repositionable without damaging the cable.
  • No tools required for installation or adjustment.

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Why is the Hook version silver while the rest of the 30SV range is black?
Doughty lists this specific variant in a silver finish, unlike the M10, M8, Fork, and Ring versions, which come in black. If finish consistency matters for your rig's appearance, check this before ordering alongside the other 30SV attachments.
Can I hang a fixture directly on this hook without a separate connector?
Yes, that's the main advantage of the hook fitting over the ring or fork versions. It lets you clip a fixture on and off quickly without needing a shackle or carabiner as an intermediate connector.
What's the maximum load this holder can take on galvanised 2mm wire?
40Kg. If you need more capacity from the same size cable holder, moving up to 3mm galvanised wire raises the rating to 85Kg.
