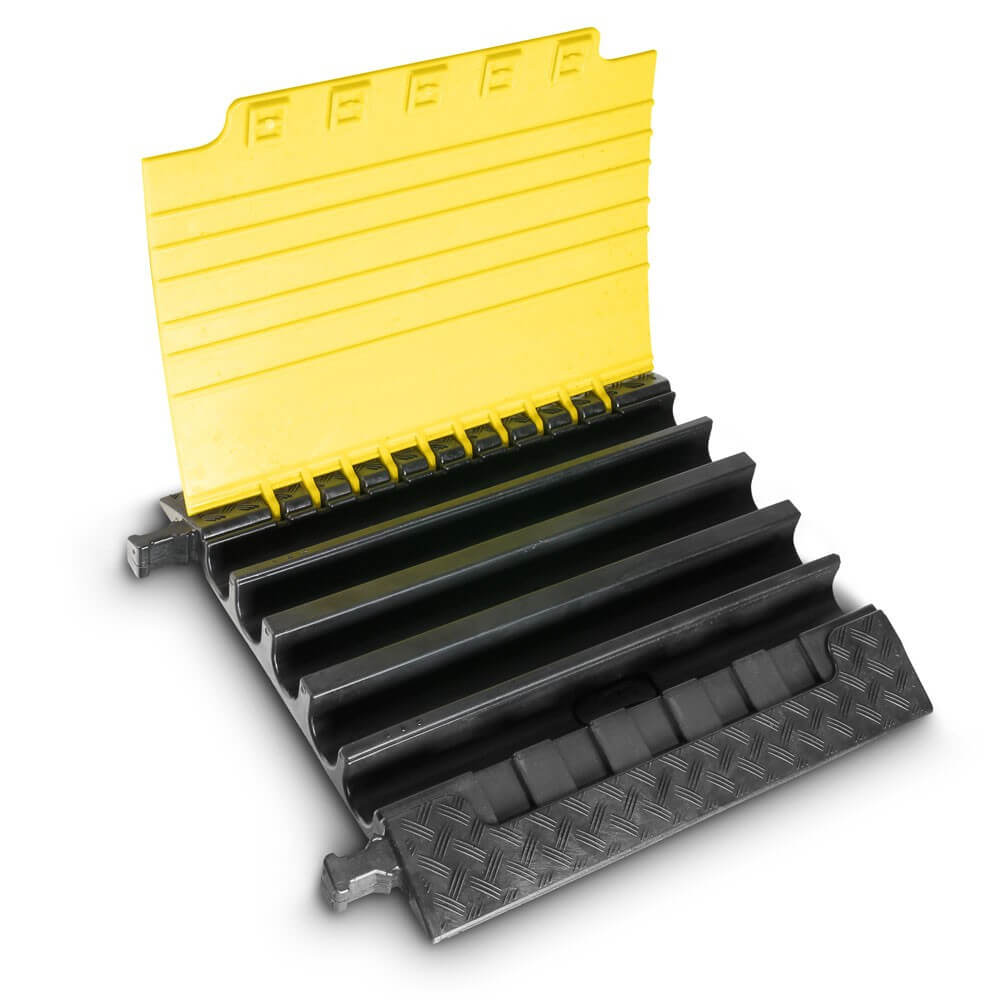

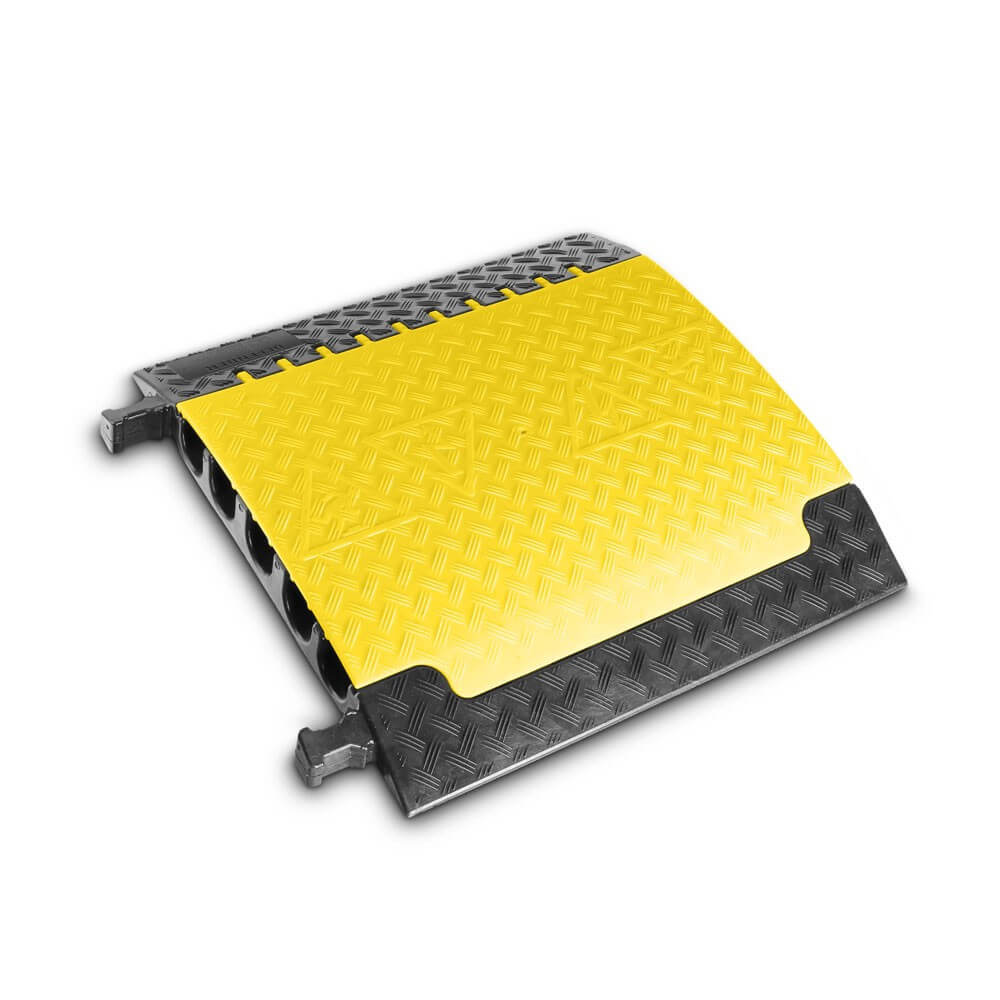

Adam Hall Defender XXL

5 extra-large channels – the heavy-duty all-rounder

Made in Germany┋Dimensions: 70x70x8.7cm┋Weight: 21.4 kg┋5 Channels

Developed for extremely high loads and offer 5 large cable/hose channels, three of them for fire C hoses (only up to 62 mm diameter – no couplings) and power cables.

Integrated connector plugs enable a quick, easy connection of individual elements to build a stable cable crossover line. The separately available end ramps ensure safe insertion and removal of cables.

Integrated handles for optimum handling. Ideal for heavy vehicle traffic, construction sites, warehouses and trade shows, as well as carnival and music events.

User Manual - Technical Drawing

Features:

• Heavy-duty, non-slip all-round cable protector with built-in carrying handles
• Yellow polyurethane lid with high warning effect and secure closure
• Patented, self-cleaning lid hinge
• 3 channels suitable C-Tube hose connectors
• Reliable protection for cables, hoses and personnel for indoor and outdoor use
• End ramps for secure cable and hose inlet and exit as accessories
• Resistant to oil, acid, petrol and short-term contact with solvents

Specifications:

• Product Type: Cable Protector - Straight
• 5 Channels: 1: 60 x 63 mm; 2: 61 x 59 mm; 2: 62 x 65 mm
• Dimensions: 70 x 69.6 x 8.7 cm
• Load bearing capacity: approx. 5 ton per 20 x 20 cm
• Material: Polyurethane (Recyclable)
• Colour: Yellow/Black
• Weight: 21.4 kg
• Fire protection class: B2
• Temperature Range: -30°C to 60°C
• DEKRA-certified
