Safetex rigging ropes according to EN 13414 with 2 special thimbles
Product Nee. AS-06-KK30-01.00/5
Normale prijs
€57.70
€70.97
€11.54
€14.19
/ Eenheid
excl. €13.27 VAT
incl. €13.27 VAT
Verzendcalculator
Voer de juiste postcode in
Betaalmethoden
Productdetails

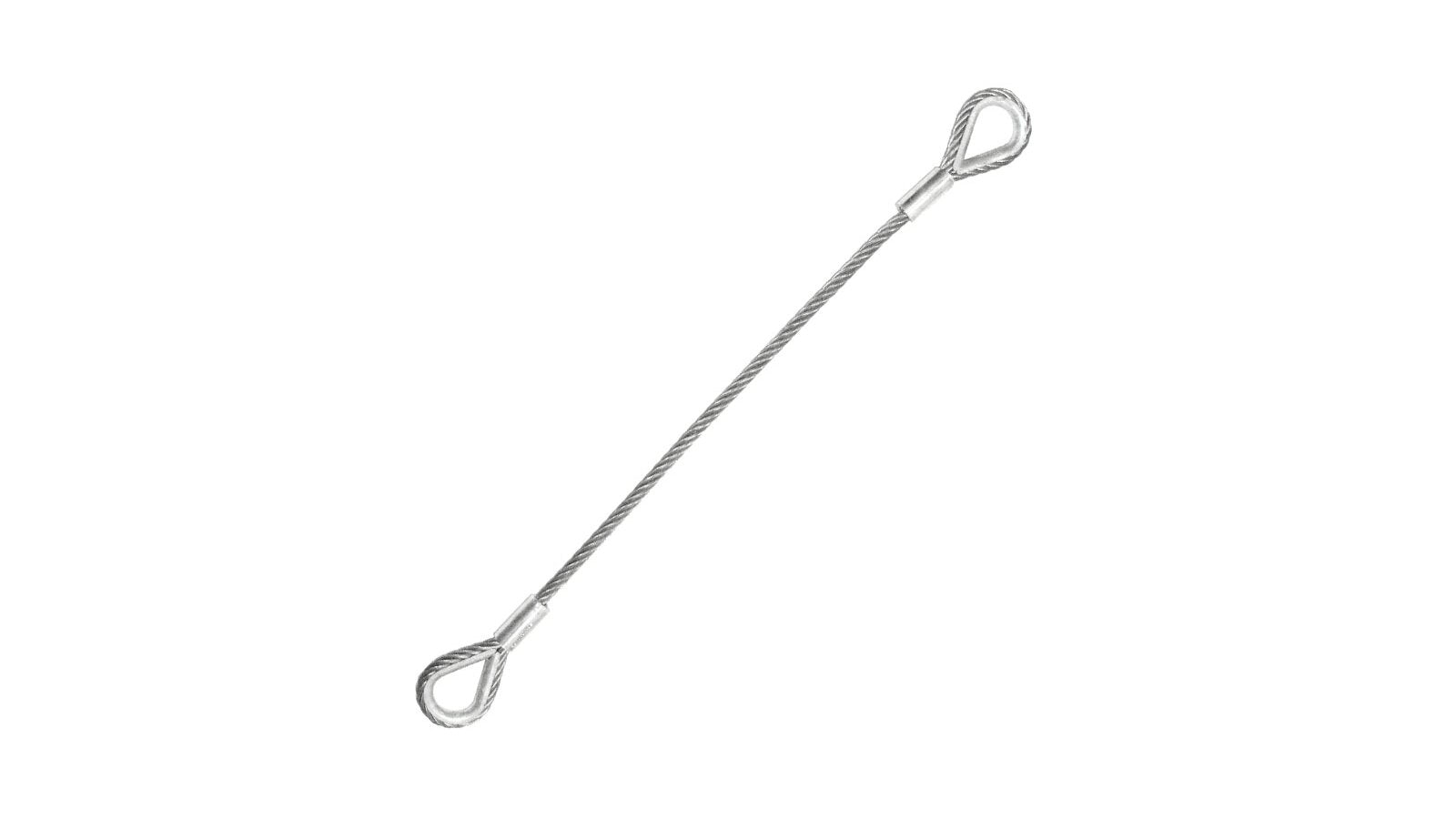

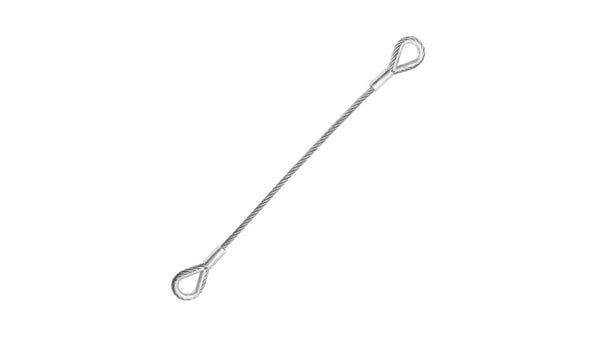

Safetex Rigging Ropes according to EN 13414 with 2 Special Thimbles
The Safetex Rigging Ropes according to EN 13414 with 2 Special Thimbles are specifically designed for professional lifting and rigging applications. They are made of galvanized wire rope in accordance with EN 12385-4 and feature cylindrical-conical press clamps in compliance with EN 13411-3A. Thanks to the special thimbles on both ends, with particularly large clear openings and conical press fittings, these ropes offer maximum safety and reliability for lifting loads over people. Each rope is CE-marked and bears a manufacturer’s mark – load capacities are in accordance with DGUV requirements.
Description:
- High-quality rigging ropes with 2 special thimbles
- Galvanized wire rope according to EN 12385-4
- Cylindrical-conical press clamps according to EN 13411-3A
- Large clear openings on both thimbles
- CE marking and manufacturer’s mark on the press clamp
Specifications:
- Standard: EN 13414
- Rope diameter: 6 mm to 16 mm
- Load capacity: 190 kg to 1350 kg
- Thimble dimensions: I up to 80 mm, C up to 50 mm
- Application: Lifting loads over people (DGUV-compliant)
Technical Data:
| Item No. | Rope Ø | DGUV | I | C |
| AS-06-KK30- | 6 mm | 190 kg | 50 mm | 32 mm |
| AS-08-KK35- | 8 mm | 350 kg | 58 mm | 35 mm |
| AS-10-KK40- | 10 mm | 500 kg | 65 mm | 40 mm |
| AS-12-KK40- | 12 mm | 750 kg | 66 mm | 40 mm |
| AS-14-KK50- | 14 mm | 1000 kg | 80 mm | 50 mm |
| AS-16-KK50- | 16 mm | 1350 kg | 78 mm | 50 mm |
