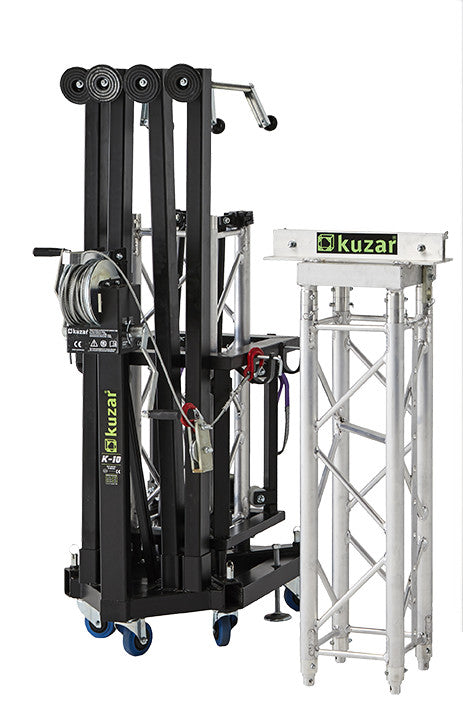

• Compact folded view of the Kuzar K-10 tower lift base on swivel wheels next to a truss section, optimized for space-saving storage and European transport.

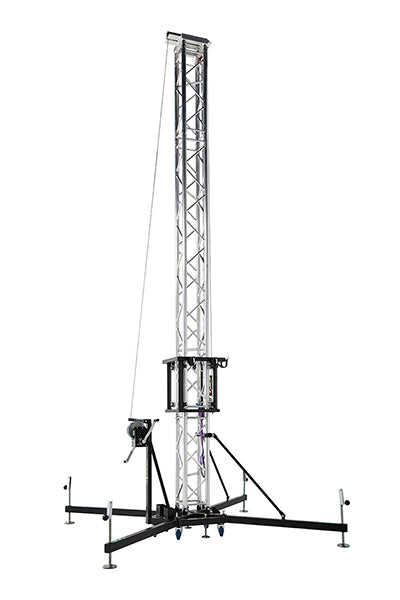

  • Fully assembled Kuzar K-10 tower lift standing vertically with its premium 6082-T6 aluminium sections, wide steel base stabilizers, and manual hoist winch system. - imagen 2

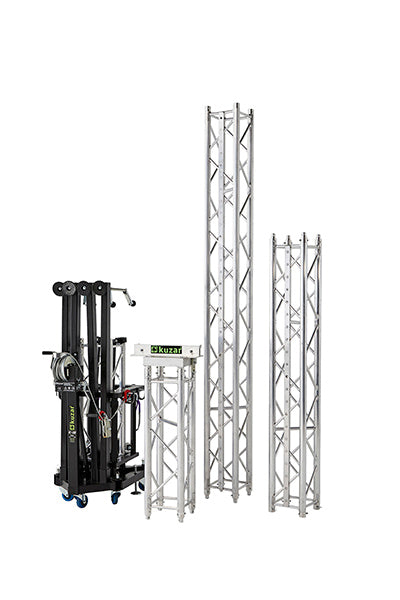

  • Unassembled components of the Kuzar K-10 tower lift, showcasing the folded compact base unit alongside individual modular 30x30 cm square truss profiles. - imagen 3

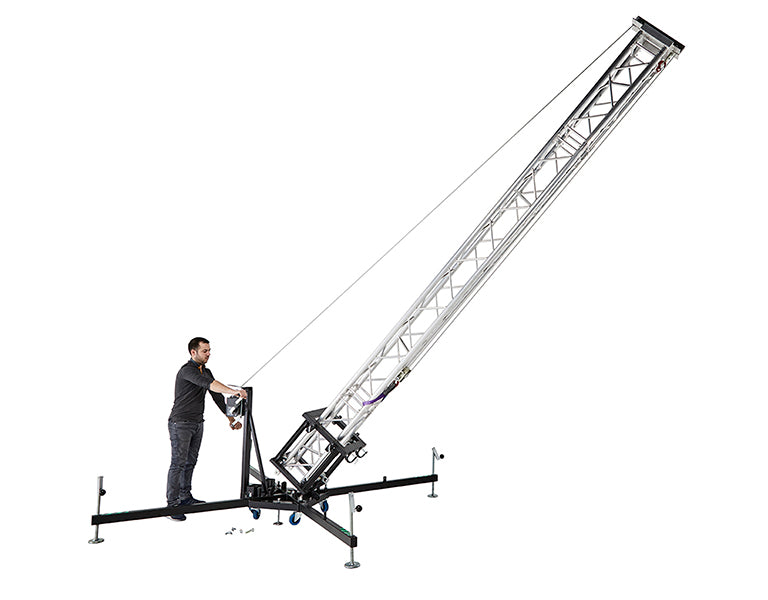

  • A single operator safely tilting the Kuzar K-10 tower lift from a horizontal position into a vertical setup using the integrated manual steel-cable winch system. - imagen 4

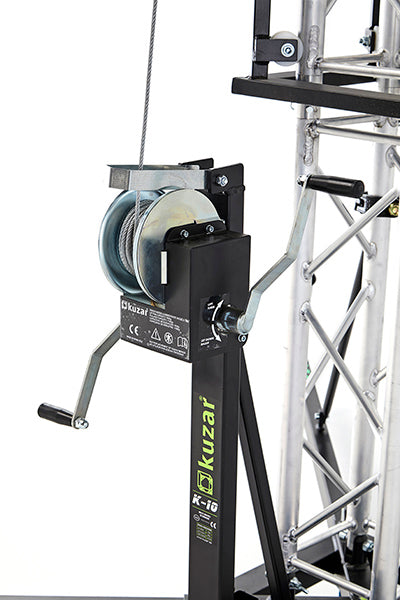

  • Close-up view of the heavy-duty manual steel-cable winch and safety brake handle mechanism mounted on the mast of the Kuzar K-10 tower lift. - imagen 5

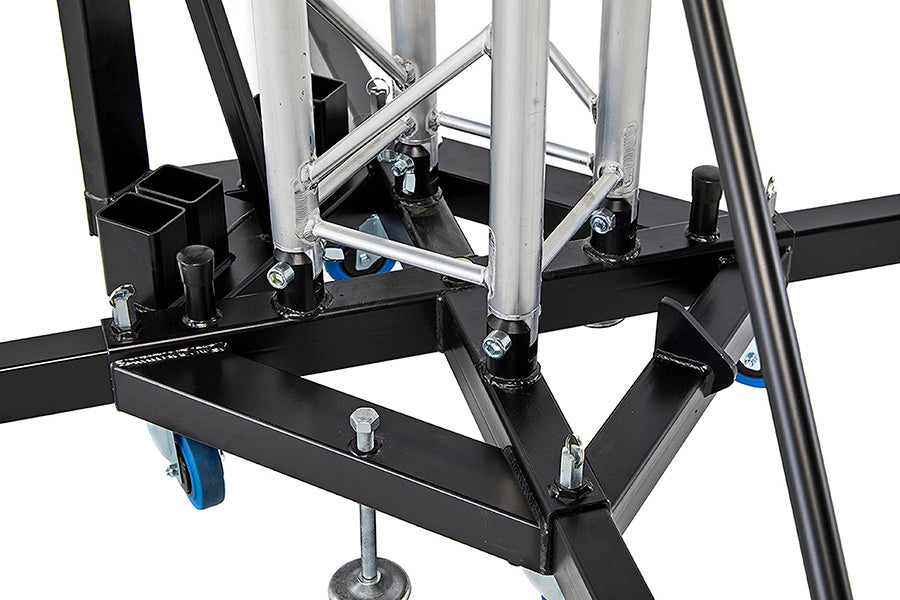

  • Detailed view of the rigid black steel base joints, locking pins, transport wheels, and adjustable leveling feet supporting the Kuzar K-10 tower lift. - imagen 6

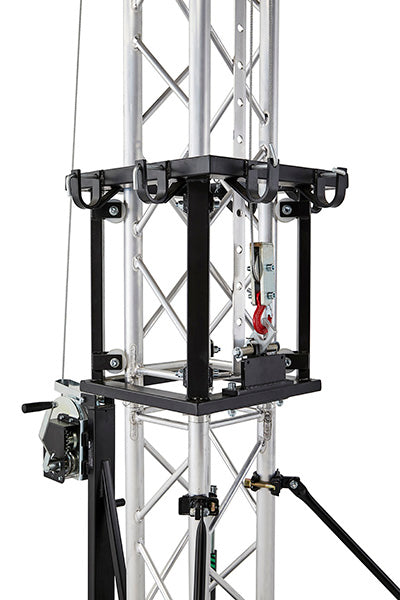

  • Detailed look at the automatic trigger brake safety system, pulley wheels, and moving steel carriage profile on the Kuzar K-10 tower lift. - imagen 7

K-10

Kuzar |
SKU: K-10
€3,306.81incl. VAT

Incl. VAT. Shipping calculated at checkout.

In stock
5 - 7 working days
2 Years Warranty
  • 500 kg at 7 m. Reaches 7 m standard, extendable to 8 m, with 500 kg load capacity at any height.
  • Kuzar K-10 Tower Lift. Modular 6082-T6 aluminium truss tower for professional indoor entertainment rigging and live events.
  • Single-Operator Setup. Manual winch raises the full tower without additional crew.
  • CE Certified Safety. Automatic trigger brake locks the carriage instantly if cable tension is lost.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactgoogle_payidealklarnamaestromasterpaypalshopify_payunionpayusdcvisa

Often Bought Together

Select items you want to add together

Included
K-10
Incl. VAT
+
Kuzar-beugel
Incl. VAT
Selecteer het land
Voer de juiste postcode in

shipping

Test heading

K-10

Zeer eenvoudig te gebruiken toren, er is slechts één persoon nodig om hem te hanteren, omdat de toren alleen door bediening van de lier de kogelgewrichten van de basis omdraait en verticaal wordt gepositioneerd. Met een stalen basis die je alle stabiliteit geeft die je nodig hebt. De rest van de toren is gebouwd met onze Kuzar-truss van 30 x 30 cm, bestaande uit buizen van Ø50 mm en 2,5 mm dik.

De samenstelling van de spanten om de toren te vormen is 1m + 3m + 2m + 1m. Met extra onderdelen kunt u tot 8 meter verlengen. De last wordt met een handmatige takel gehesen. Antislip en verstelbare steunen zijn in de basis geplaatst.


Specificaties

MAXIMALE HOOGTE
 7 m (23 ft)
MAXIMALE BELASTING 500 kg (1102 lb)
VEILIGHEID TRUSS-TRIGGER + RITS
GEVOUWEN HOOGTE 1,68 m (5,51 ft)
WERKOPPERVLAK 2,29 x 2,29 m (7,51 x 7,51 ft)
BOUW BUISVORMIG PROFIEL 50×2,5 mm
BELANGRIJKSTE MATERIAAL ALUMINIUM 6082T6, STAAL





Frequently Asked Questions

What is the Kuzar K-10 aluminium lifting tower designed for?
The Kuzar K-10 Tower Lift is designed for indoor entertainment productions including concerts, live events and theatrical performances. It is used to elevate truss bridges, lighting rigs and PA systems to working height. It is not approved for outdoor use as it carries no wind speed rating.
How does the Kuzar K-10 Tower Lift erect?
The aluminium truss sections are assembled flat on the ground and connected to the steel base. One operator then turns the manual cable winch, which pivots the full tower over the base ball joints into a vertical position. A second person can assist by supporting the top of the tower during the raising phase, but is not required.
What working heights are available with the K-10?
The K-10 is supplied as a standard 7 m assembly using four sections: 1 m + 3 m + 2 m + 1 m. Working height can be extended up to 8 m with optional additional sections, or reduced by omitting sections to achieve configurations of 3 m, 4 m, 5 m or 6 m.
Does the load capacity change at different heights?
No. The Kuzar K-10 Tower Lift has a maximum load capacity of 500 kg regardless of the working height at which the carriage is positioned. The minimum load for correct mechanical operation is 25 kg. When two K-10 towers are used together supporting a truss bridge, the combined total capacity is 1,000 kg.
What safety features does the Kuzar K-10 Tower Lift include?
The Kuzar K-10 Tower Lift features an automatic trigger braking system on the steel lifting carriage that locks instantly if cable tension is lost, preventing any unintended descent. Outrigger legs are secured with hexagonal safety triggers. The base includes a spirit level for vertical alignment and adjustable non-slip rubber feet for stable levelling. The tower is CE certified and manufactured in Spain to EU machinery directive standards.
