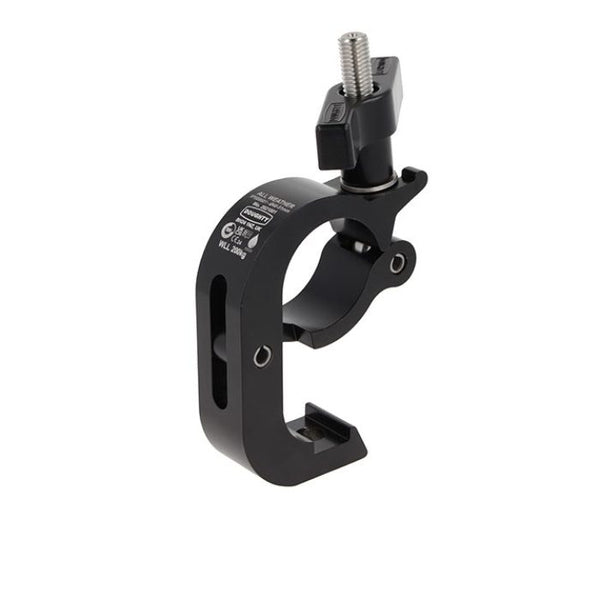

• Doughty All Weather Trigger Clamp - Heavy-duty black aluminum clamp with adjustable screw.

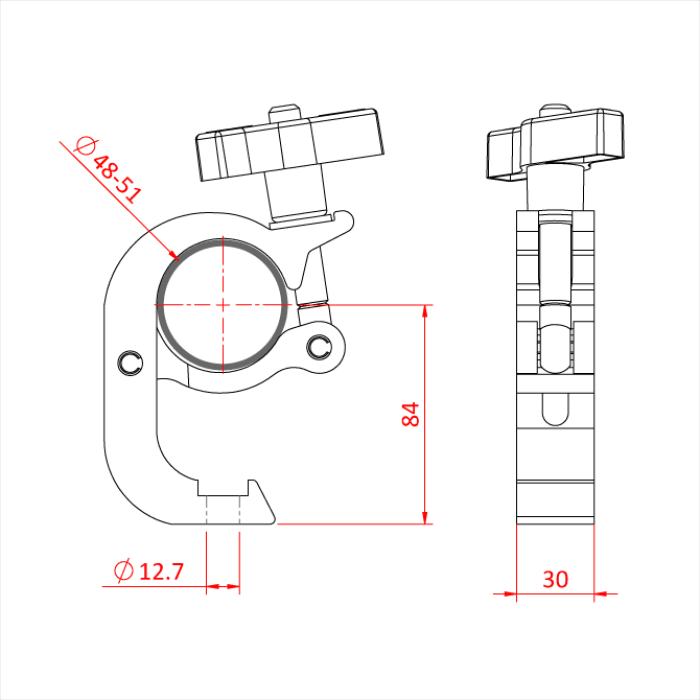

  • Doughty All Weather Trigger Clamp - Adjustable metal clamp, technical drawing, dimensions indicated. - imagen 2

Doughty All Weather Trigger Clamp

Doughty Engineering |
SKU: IP588601
€37.34incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Outdoor Durability. Built to resist harsh weather conditions - crafted from 316 stainless steel and AW6082 T6 grade aluminium.
  • Versatile Clamping. Fits a range of tube sizes from 48mm to 51mm - ideal for various rigging applications outdoors.
  • High Strength Performance. Supports a Working Load Limit (WLL) of 200Kg - perfect for securing heavy equipment at live events.
  • Secure Fastening. Designed with a 30mm wide slot for captive M12 nuts or bolt heads - ensures stability during outdoor setups.
  • Sleek Aesthetic. Finished in a sleek powder-coated black - enhances the professional look of your rigging equipment.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty All Weather Trigger Clamp

The Doughty All Weather Trigger Clamp is a robust and reliable solution for outdoor events, made with precision from 316 stainless steel and AW6082 T6 grade aluminium. This clamp is built to withstand the elements while providing secure and efficient clamping for various applications.

Key Features

  • Manufactured with 316 stainless steel and AW6082 T6 grade aluminium for outdoor durability.
  • Accommodates 48mm to 51mm diameter tubes, ensuring versatile use.
  • High tensile strength with a Working Load Limit (WLL) of 200Kg.
  • 30mm wide and slotted to hold captive an M12 nut or bolt head.
  • Powder coated black finish for a sleek and professional look.

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What is the Doughty All Weather Trigger Clamp used for compared to a standard hook clamp?
The Doughty All Weather Trigger Clamp uses a spring-loaded mechanism so the weight of the hung object helps keep the clamp closed and secure, commonly used for quickly hanging moving heads or lighting fixtures on trussing.
What's the working load limit of the Doughty All Weather Trigger Clamp?
The Doughty All Weather Trigger Clamp has a 200Kg WLL, suited to fixtures like moving heads and lighting rather than heavier structural loads.
What tube diameter does the Doughty All Weather Trigger Clamp fit?
The Doughty All Weather Trigger Clamp fits 48mm to 51mm diameter tubes and is slotted to hold a captive M12 nut or bolt head.
