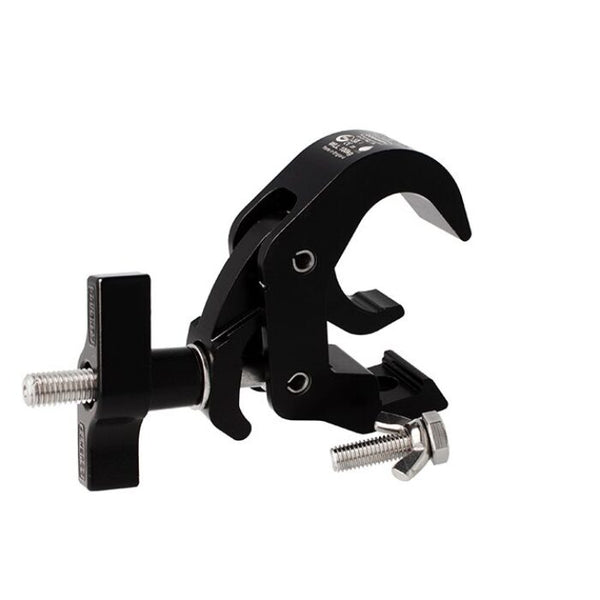

• Doughty All Weather Slimline Quick Trigger Hook Clamp - Heavy-duty black C-clamp for stage lighting.

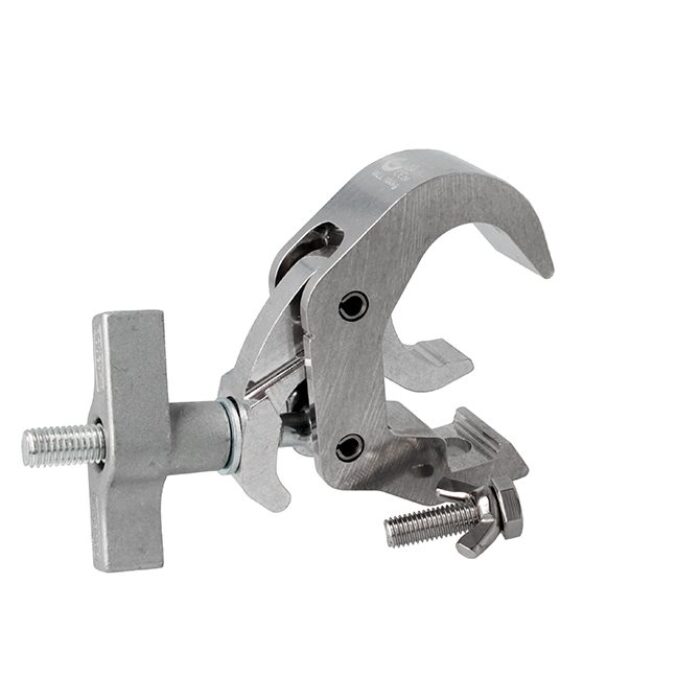

  • Doughty All Weather Slimline Quick Trigger Hook Clamp - Heavy-duty steel pipe clamp with adjustable bolts. - imagen 2

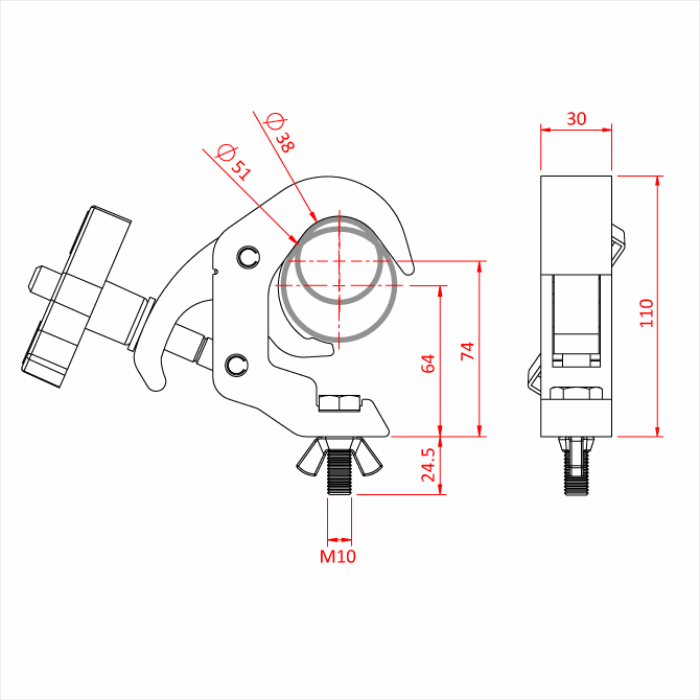

  • Doughty All Weather Slimline Quick Trigger Hook Clamp - Heavy-duty truss clamp technical drawing with dimensions. - imagen 3

Doughty All Weather Slimline Quick Trigger Hook Clamp

Doughty Engineering |
SKU: IP58305
€45.65incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Weather Resilient. Built for reliable performance in harsh outdoor conditions - crafted from high-quality 316 stainless steel and AW6082 T6 grade parts.
  • High Load Capacity. Supports heavy equipment with confidence - boasts a Working Load Limit (WLL) of 100Kg.
  • Quick-Release Design. Simplifies rigging and adjustments on-site - features a high tensile extruded aluminium quick trigger clamp.
  • Versatile Compatibility. Fits a range of setups effortlessly - compatible with 38mm to 51mm diameter tubes.
  • Fixing: A4 grade stainless M12 x 45 bolt and wing nut. Corrosion-resistant hardware supplied ready to install.
View Full Description Technical Data
Color: Silver

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty All Weather Slimline Quick Trigger Hook Clamp

The Doughty All Weather Slimline Quick Trigger Hook Clamp belongs to Doughty's advanced All Weather clamp range, designed specifically for outdoor events. Made with premium 316 stainless steel and AW6082 T6 grade parts, this clamp ensures durability and performance in various weather conditions.

Key Features

  • Constructed with 316 stainless steel and AW6082 T6 grade materials for outdoor use.
  • High tensile extruded aluminium quick trigger clamp.
  • Compatible with 38mm to 51mm diameter tubes.
  • Working Load Limit (WLL) of 100Kg.
  • Available in a silver or powder coated black finish.

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What's the difference between the Doughty All Weather Slimline Quick Trigger Hook Clamp and the non-hook version?
Both the Doughty All Weather Slimline Quick Trigger Hook Clamp and the standard Quick Trigger Clamp share the same 100Kg WLL and 38-51mm tube range, but the Hook Clamp version comes supplied with an A4 grade stainless steel M12 x 45 bolt and wing nut included.
What tube diameters does the Doughty All Weather Slimline Quick Trigger Hook Clamp support?
The Doughty All Weather Slimline Quick Trigger Hook Clamp supports 38mm to 51mm diameter tubes, giving flexibility across different trussing and stand sizes.
Is the Doughty All Weather Slimline Quick Trigger Hook Clamp suited to hanging moving heads?
Yes. The Doughty All Weather Slimline Quick Trigger Hook Clamp is specifically designed for hanging moving heads on trussing without damaging the cords.
