Safetex wire rope slings for rope holders Blackline
Producto No. AS-04-B-1K-01.00/10
Precio regular
€98.50
€121.16
€9.85
€12.12
/ Unidad
excl. €22.66 VAT
incl. €22.66 VAT
Calculadora de envío
Ingrese el código postal correcto
Métodos de pago
Detalles del producto

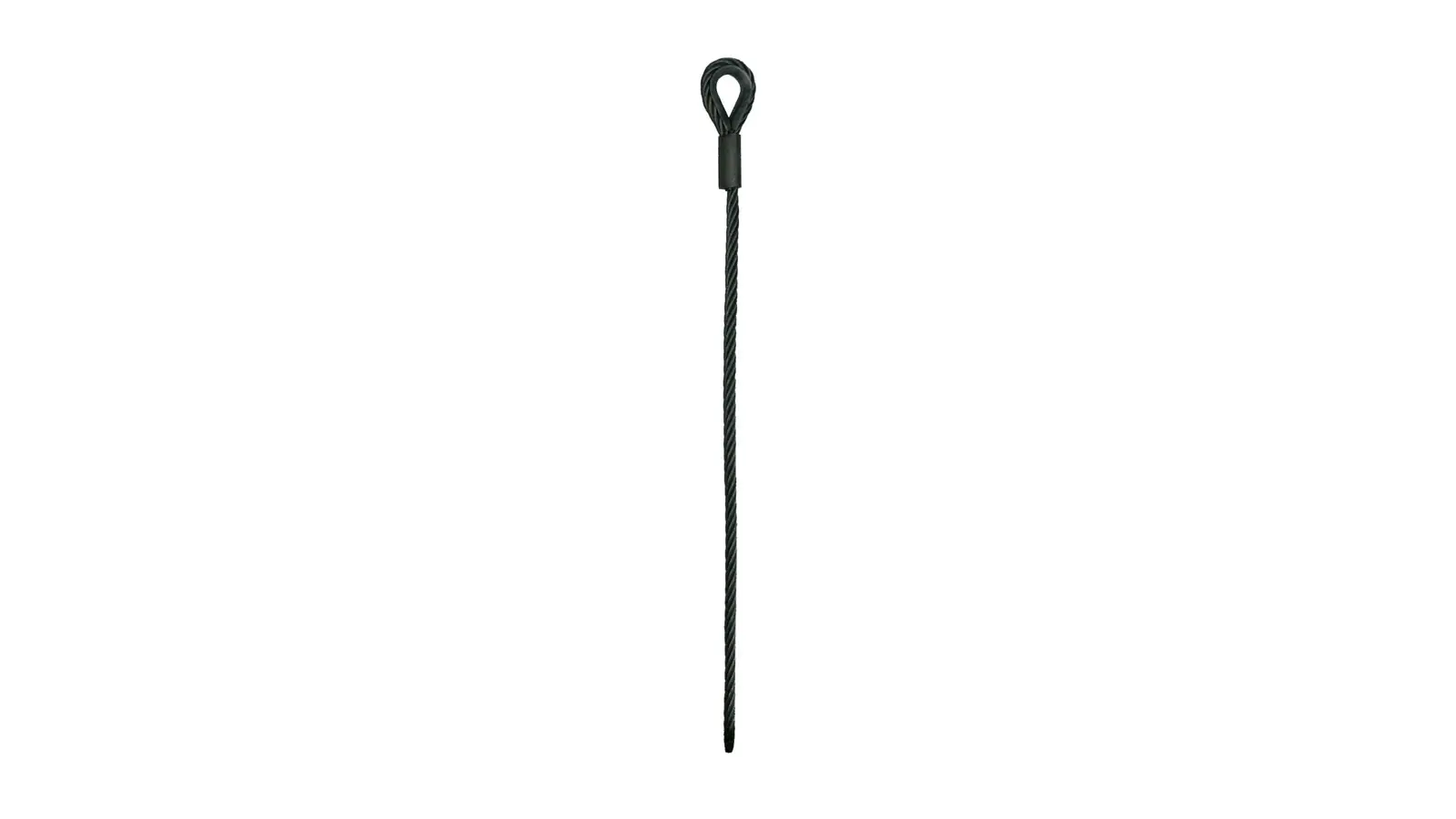

Safetex Lifting Ropes for Blackline Wire Rope Holders
The Safetex lifting ropes for Blackline wire rope holders are specifically designed for safe use in combination with wire rope holders. Made from black wire rope according to EN 12385-4 in a 7 x 19 construction with steel core, they offer high load capacity and durability. The combination of a black thimble (DIN 6899 Type BF), black ferrule (DIN 3093A), and tinned rope end ensures reliable stability, corrosion protection, and a discreet appearance. The load-bearing values comply with DGUV guidelines, ensuring standard-compliant use.
Description:
- Black wire rope according to EN 12385-4 with 7 x 19 construction and steel core
- Equipped with black thimble according to DIN 6899 Type BF
- Pressed with black ferrule according to DIN 3093A
- Tinned rope end for enhanced corrosion protection
- Load-bearing specifications according to DGUV – compatible with wire rope holders
Specifications:
- Rope diameter: 4 mm, 5 mm, 6 mm, 8 mm
- Load capacity: up to 240 kg depending on model
- Inner length (I): 21 mm to 58 mm
- Inner width (C): 13 mm to 35 mm
- Color finish: Black with tinned rope end
References:
- DIN 6899 Type BF – Thimble
- DIN 3093A – Ferrule
- EN 12385-4 – Wire rope standard
Technical Data:
| Item No. | Rope Ø | DGUV | I | C |
| AS-04-B-1K | 4 mm | 60 kg | 21 mm | 13 mm |
| AS-05-B-1K | 5 mm | 90 kg | 23 mm | 14 mm |
| AS-06-B-1K | 6 mm | 135 kg | 25 mm | 16 mm |
| AS-08-B-1K | 8 mm | 240 kg | 32 mm | 20 mm |
| AS-06-B-1K30 | 6 mm | 135 kg | 50 mm | 32 mm |
| AS-08-B-1K35 | 8 mm | 240 kg | 58 mm | 35 mm |
