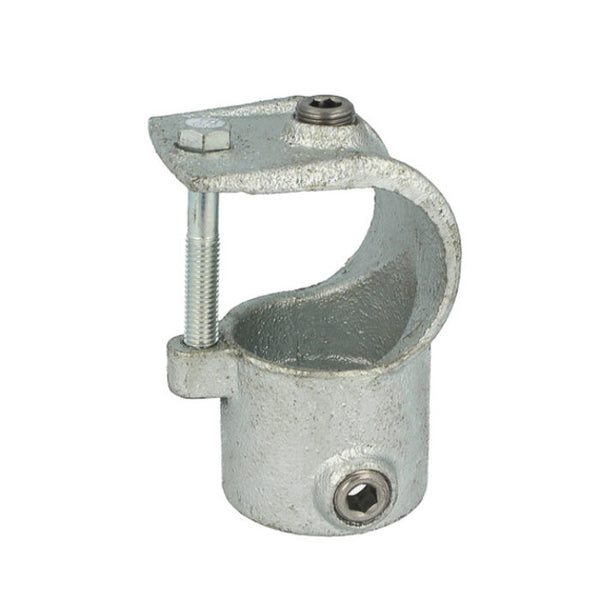

• Doughty Pipeclamp Clamp On Tee - Industrial galvanized steel pipe clamp connector.

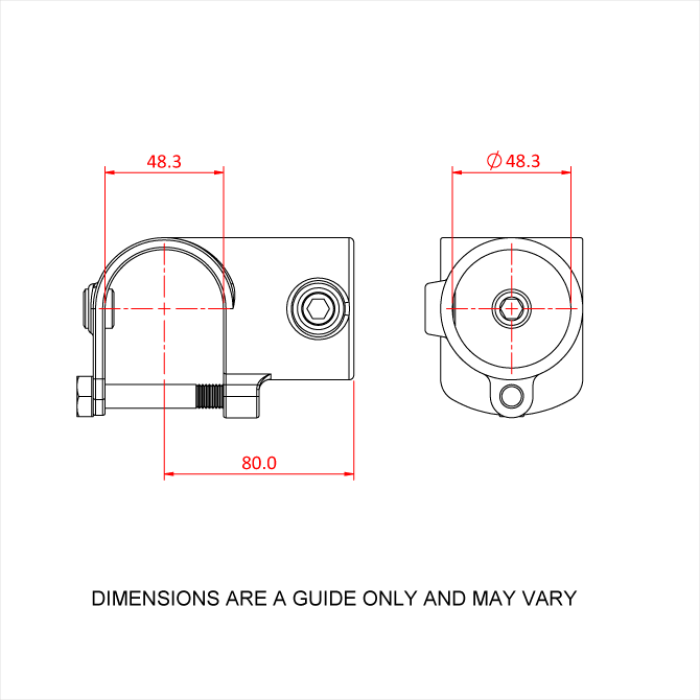

  • Doughty Pipeclamp Clamp On Tee - Clamp bracket technical drawing with dimensions indicated. - imagen 2

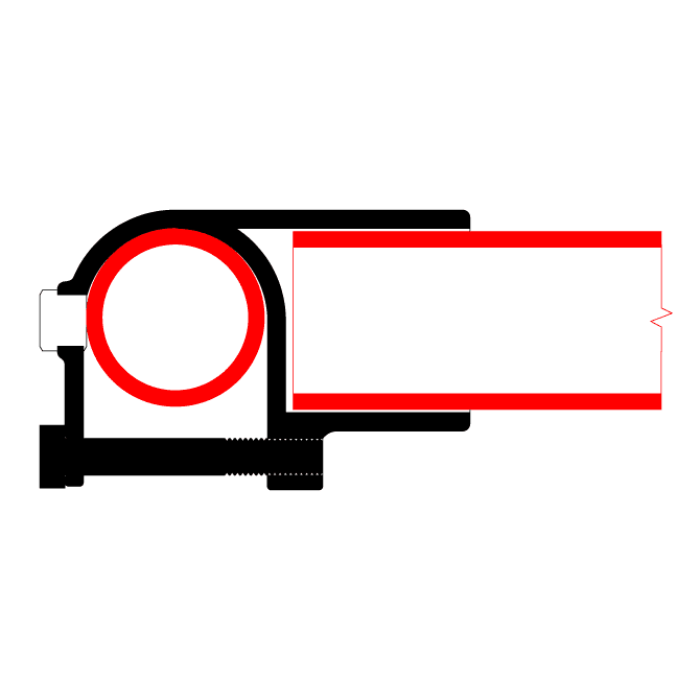

  • Doughty Pipeclamp Clamp On Tee - Cross-section industrial clamp with circular and linear features. - imagen 3

Doughty Pipeclamp Clamp On Tee

Doughty Engineering |
SKU: T13500
€18.55incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • WLL: Not Rated. This fitting is non-structural and not rated for a specific working load limit; do not use it as a load-bearing or safety-critical connection.
  • Corrosion Resistance. Galvanised finish ensures longevity and durability - perfect for demanding environments in theatre and touring.
  • Reliable Strength. Malleable iron construction delivers robust support - ensuring safe and secure connections for all your rigging needs.
  • Versatile Design. Facilitates a 90-degree tee connection between tubes - accommodating diverse setups in film, TV, and stage productions.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty Pipeclamp Clamp On Tee

The Doughty Pipeclamp Clamp On Tee is a versatile, galvanised, malleable iron fitting designed to provide a robust 90-degree tee connection between two tubes. Its unique design allows for easy installation into existing structures without the need for disassembly, making it an ideal choice for both new and retrofit applications.

Key Features

  • Galvanised for enhanced durability and corrosion resistance.
  • Constructed from malleable iron for strength and reliability.
  • Facilitates a 90-degree tee connection between tubes.
  • Designed for easy integration into existing structures without disassembly.

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Can I add a tee connection to an existing scaffold structure without taking it apart?
Yes. The Doughty Pipeclamp Clamp On Tee is specifically designed to be added to an existing tube structure without dismantling it, unlike a standard tee fitting which requires the tube ends to be free.
What's the difference between a Clamp On Tee and a standard Pipeclamp Short Tee?
Both create a 90 degree tee connection between two tubes, but the Clamp On Tee clamps directly onto a continuous tube, while the Short Tee requires the tube to be cut and fitted into open sockets during initial assembly.
Is the Doughty Pipeclamp Clamp On Tee rated for load-bearing use?
No. It carries a WLL of "Not Rated," so it should be treated as a general connection fitting rather than a certified load-bearing point.
