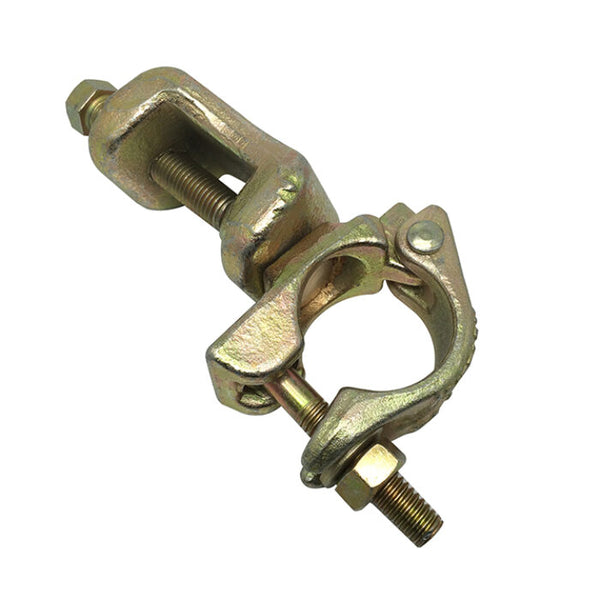

• Metal clamp on a white background

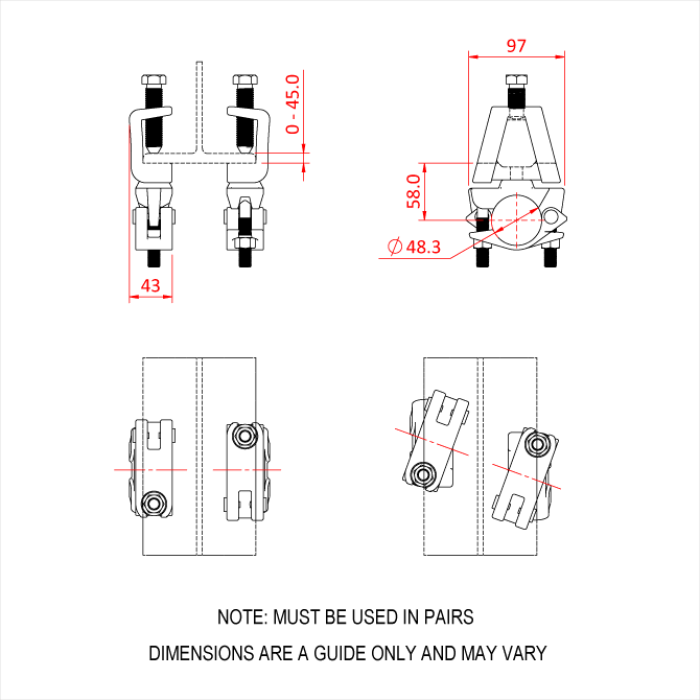

  • Technical drawing of a mechanical component with dimensions and usage notes. - imagen 2

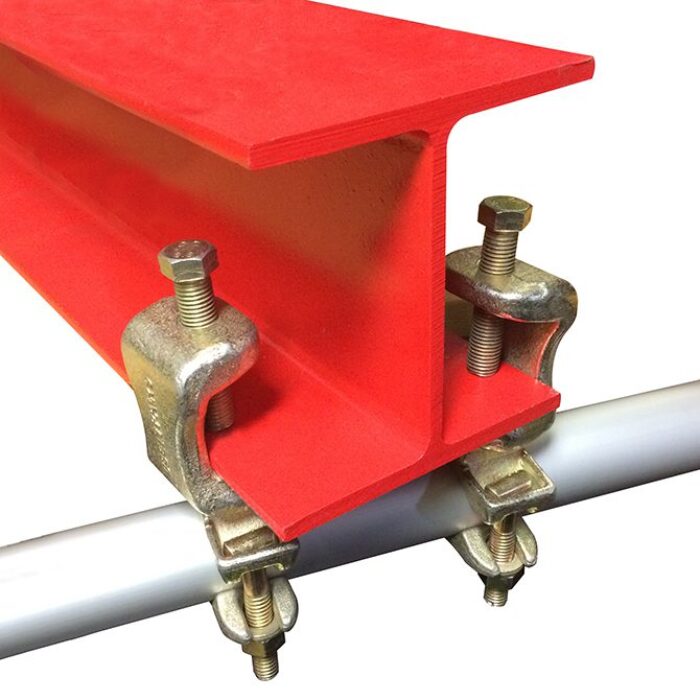

  • Red metal bracket with bolts on a white background - imagen 3

Doughty Gravlock Swivel Coupler per pair

Doughty Engineering |
SKU: T29498
€71.43incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • WLL: 600kg per pair. Always keep the applied load within this rated limit.
  • Versatile Positioning. Features a full 360-degree swivel for easy adjustment - perfect for adapting setups in theatre, film, and live events.
  • Enhanced Safety. Must be used in pairs to guarantee stability and secure attachment - ideal for preventing accidents during performances.
  • Efficient Attachment. Specifically designed to connect 48mm barrels to girders or beams effortlessly - streamlines your rigging process on-site.
  • Flange Compatibility. Suitable for flanges up to 45mm thick - provides versatility across a wide range of structures and environments.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty Gravlock Swivel Coupler per pair

The Doughty Gravlock Swivel Coupler per pair is a robust and reliable solution built for securely attaching a 48mm barrel to a girder or beam. Engineered from galvanized steel, these heavy-duty clamps offer a full 360-degree swivel, providing versatility and ease of use in various rigging applications. Sold exclusively in pairs, they ensure optimal safety and performance when used as intended.

Key Features

  • Constructed from durable galvanized steel for longevity and strength.
  • Designed to attach 48mm barrels to girders or beams efficiently.
  • Allows for a 360-degree swivel, offering flexibility in positioning.
  • Suitable for use on flanges up to 45mm thick.
  • Must be used in pairs, ensuring enhanced stability and safety.

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Why does the WLL apply to the pair and not each individual coupler?
The Gravlock Swivel Coupler works by gripping a girder flange from both sides at once. One coupler alone can't hold the flange, so the 600kg rating only applies once both couplers are fitted together as supplied.
Can I mix a Gravlock Swivel Coupler with a standard Gravlock Coupler in the same pair?
No. Always use the couplers as supplied in matched pairs. Mixing swivel and fixed versions, or pairing with a different product, isn't how the connection was tested and rated.
What's the maximum girder flange thickness this coupler works with?
Up to 45mm. Measure your I-beam flange thickness before ordering, since a flange thicker than that won't seat correctly in the coupler.
