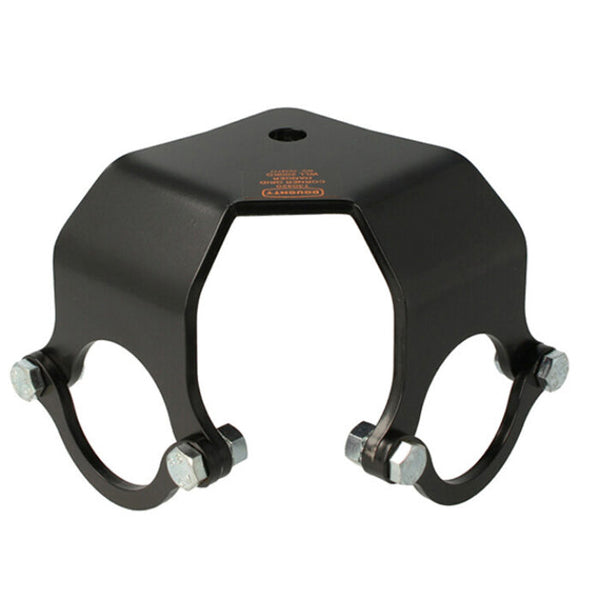

• Doughty Demountable Grid Hanger Corner - Heavy-duty black steel pipe clamp bracket.

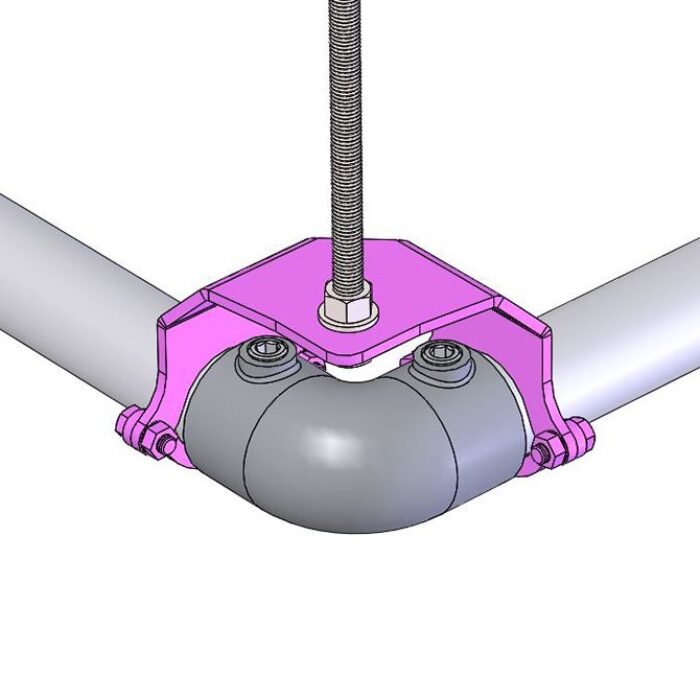

  • Doughty Demountable Grid Hanger Corner - Industrial pipe support bracket with bolts and screws. - imagen 2

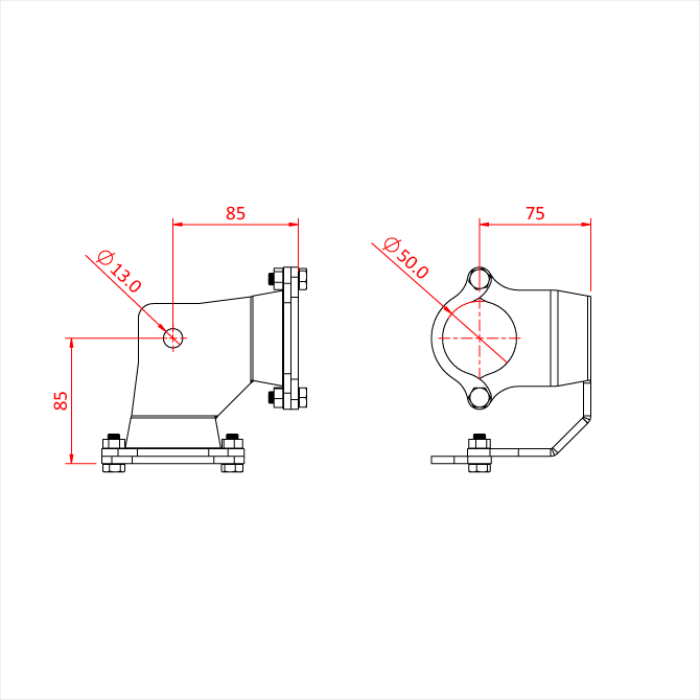

  • Doughty Demountable Grid Hanger Corner - Metal flange technical drawing with measurements and specifications. - imagen 3

Doughty Demountable Grid Hanger Corner

Doughty Engineering |
SKU: T30420
€59.77incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Secure Suspension. Designed for secure hanging of 48mm diameter tubes - attaches to M12 studs or bolts for reliable support.
  • Easy Modification. Features removable lower sections for quick barrel grid adjustments - perfect for dynamic setups beneath air conditioning systems.
  • Versatile Compatibility. Fits over 90-degree pipe clamp fittings effortlessly - enhances flexibility in rigging configurations for live events and installations.
  • Durable Protection. Finished with a resilient powder-coated black layer - ensures longevity and maintains aesthetics in any production environment.
  • Professional Grade. Crafted from high-quality folded steel - engineered for consistent performance in demanding theatre and touring applications.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty Demountable Grid Hanger Corner

The Doughty Demountable Grid Hanger Corner is an expertly crafted folded steel corner hanger. It is designed to suspend a 48mm diameter tube securely from an M12 stud or bolt fixing. This product suits creating a stable barrel grid beneath infrastructures like air conditioning systems.

Key Features

  • Designed for suspending a 48mm diameter tube
  • Compatible with M12 stud or bolt fixing
  • Removable lower sections for easy barrel addition or removal
  • Fits over a 90-degree pipe clamp fitting (T12500)
  • Durable powder-coated black finish

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What's the difference between the Demountable Grid Hanger Corner and the standard Grid Hanger Corner?
Both fit a 90 degree pipe clamp fitting (T12500) and share the same 200Kg WLL, but the Demountable version has removable lower sections, letting you take a barrel out of the grid without undoing the M12 fixing, while the standard Grid Hanger Corner is a fixed one-piece design.
What's the difference between this and the standard Demountable Grid Hanger (non-corner)?
Both have removable lower sections and the same 200Kg WLL, but this corner version is sized to fit a 90 degree pipe clamp fitting for corner sections of a grid, while the standard version fits a straight pipe clamp run.
What's the working load limit of the Demountable Grid Hanger Corner?
It has a 200Kg WLL, matching the standard Demountable Grid Hanger and the fixed Grid Hanger Corner.
