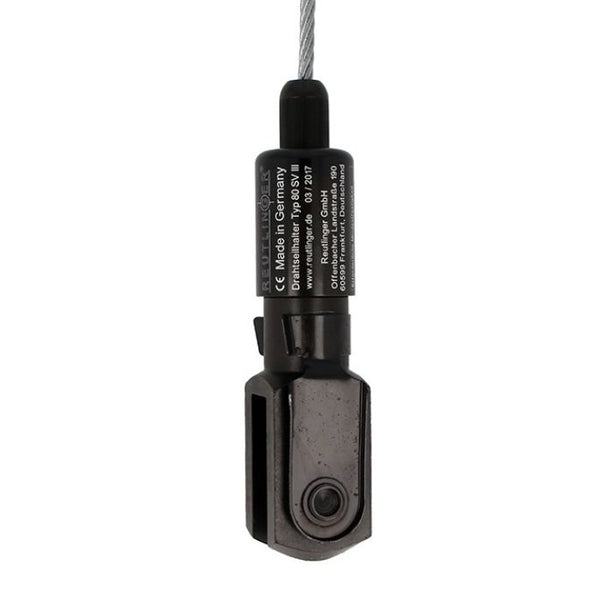

• Doughty 80SV III with Fork - Heavy-duty cable insulator with label, black finish

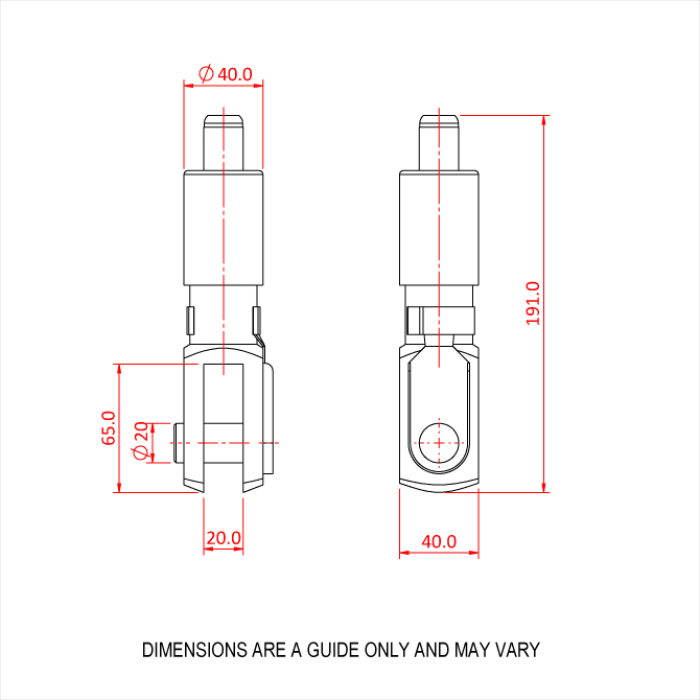

  • Doughty 80SV III with Fork - Hydraulic damper technical drawing with dimensions. - imagen 2

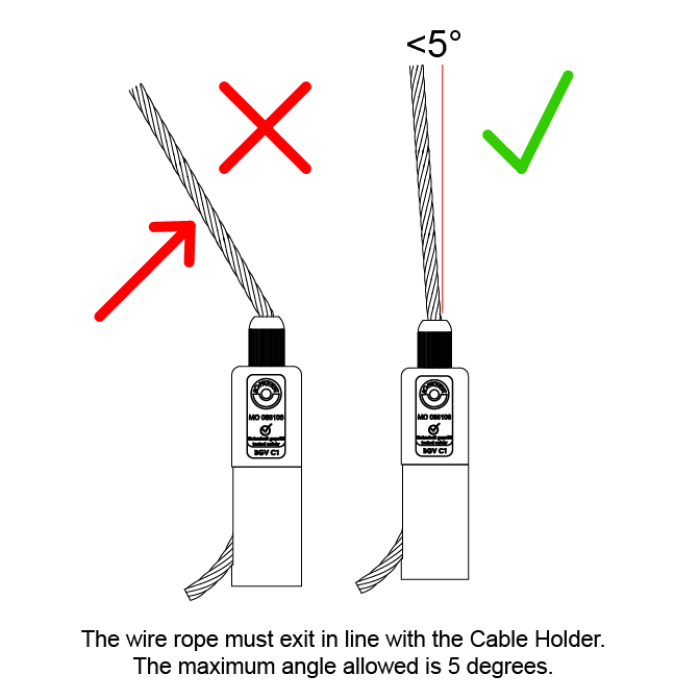

  • Doughty 80SV III with Fork - Cable holder exit alignment diagram with angle limits. - imagen 3

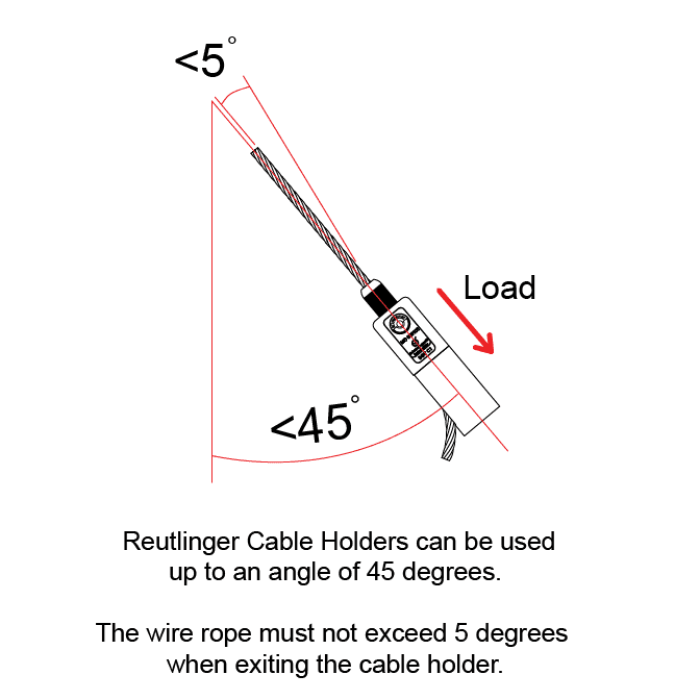

  • Doughty 80SV III with Fork - Reutlinger cable holder angle and load specifications diagram. - imagen 4

Doughty 80SV III with Fork

Doughty Engineering |
SKU: T37682
€126.17incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Reliable Compliance. Ensures safety and adherence to BGV C1 standards - essential for stage productions and fair booths.
  • Versatile Cable Support. Accommodates both 6mm and 8mm steel wire ropes - perfect for diverse rigging applications.
  • WLL: 135Kg (6mm) / 150Kg (6.35mm) / 240Kg (8mm). Always keep the applied load within this rated limit.
  • Professional Durability. Built for the demanding environments of live events - engineered for long-lasting performance and reliability.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 80SV III with Fork

The Doughty 80SV III with Fork is a key component for rigging professionals who demand reliability and compliance with industry standards. This Type 80SV Reutlinger Cable Holder is designed to accommodate 6 and 8mm steel wire ropes, making it well suited to applications requiring BGV C1 compliance, such as stage productions and fair booths.

Key Features

  • Compatible with 6 and 8mm steel wire ropes
  • Designed for BGV C1 compliance
  • Repositionable without damaging the cable
  • Tool-free adjustment

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What's the difference between choosing the Fork version versus the Ring version at this WLL level?
Both share identical WLL figures across 6mm, 6.35mm, and 8mm wire. The Fork uses a pinned connection for quicker disconnect on site, while the Ring needs a separate shackle or carabiner, so the choice comes down to how you need to attach and detach the load.
At 240Kg on 8mm wire, what safety margin does this holder typically carry?
Doughty doesn't publish the safety factor on the product page itself. Check the linked Reutlinger reference or the data sheet for the specific factor of safety applied to the stated WLL before relying on it for a heavy rig.
Can I downgrade to 6mm wire on an 80SV Fork holder if my job doesn't need the full 240Kg capacity?
Yes. The holder accepts 6mm, 6.35mm, and 8mm wire, so you can use thinner wire for lighter loads without needing a different size holder, as long as you rig to the correct WLL for whichever wire you choose.
