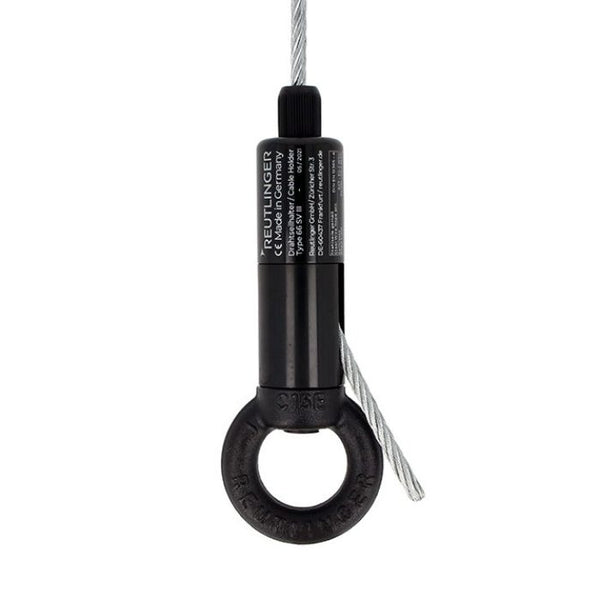

Doughty 66SV III with Ring Side Exit Wire

Doughty Engineering |
SKU: T37666
€76.24incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Versatile Design. Holds 6mm steel wire rope securely - perfect for stage productions and fair booths.
  • Enhanced Flexibility. Features a ring and side exit for adaptable cable management - accommodates various rigging setups.
  • BGV C1 Compliant. Adheres to industry safety standards for professional rigging - ensures reliability in demanding environments.
  • WLL: 90Kg (5mm) / 135Kg (6mm) / 150Kg (6.35mm/1/4in). Always keep the applied load within this rated limit.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 66SV III with Ring Side Exit Wire

The Doughty 66SV III with Ring Side Exit Wire is an adaptable, heavy-duty cable holder designed to cater to the demanding needs of various professional settings. Featuring a Type 66SV Reutlinger design, this component is equipped with a ring and a side exit to accommodate 6mm steel wire rope, making it well suited to applications requiring BGV C1 compliance, such as stage productions and fair booths.

Key Features

  • Compatible with 6mm steel wire rope
  • Ring and side exit design for enhanced flexibility
  • Complies with BGV C1 standards
  • Tool-free repositioning without cable damage

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Why pick the side exit ring version over the standard 66SV III with Ring?
Both share the same WLL across 5mm, 6mm, and 6.35mm wire, but this version routes the wire out the side of the holder instead of straight through, useful when the cable needs to angle away from the fixing point.
Does the ring need a shackle to connect to my fixture, or can I hook it on directly?
You'll need a shackle, carabiner, or similar connector, since the ring is a closed fitting rather than an open hook that clips straight onto a fixture.
At 150Kg, what kind of fixture would typically need this level of capacity?
That range suits larger moving heads, heavier conventional fixtures, or multi-fixture assemblies where the combined weight, including cabling and accessories, approaches the top end of what smaller cable holders like the 30SV or 50SV can support.
