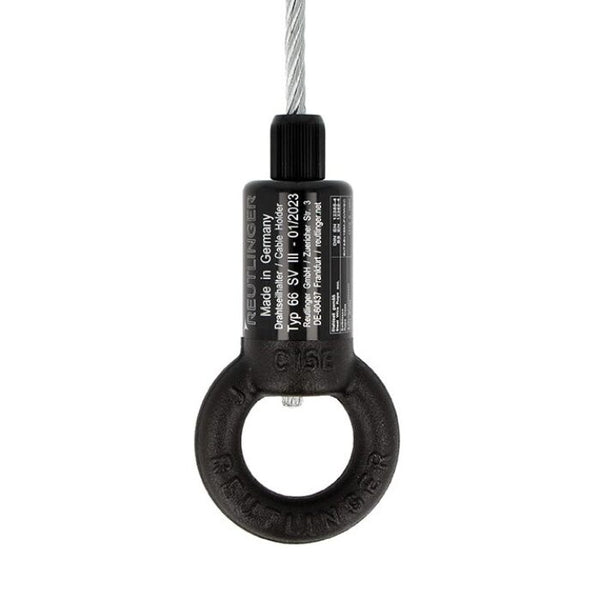

• Doughty 66SV III with Ring - Reutlinger black cable holder with metal loop.

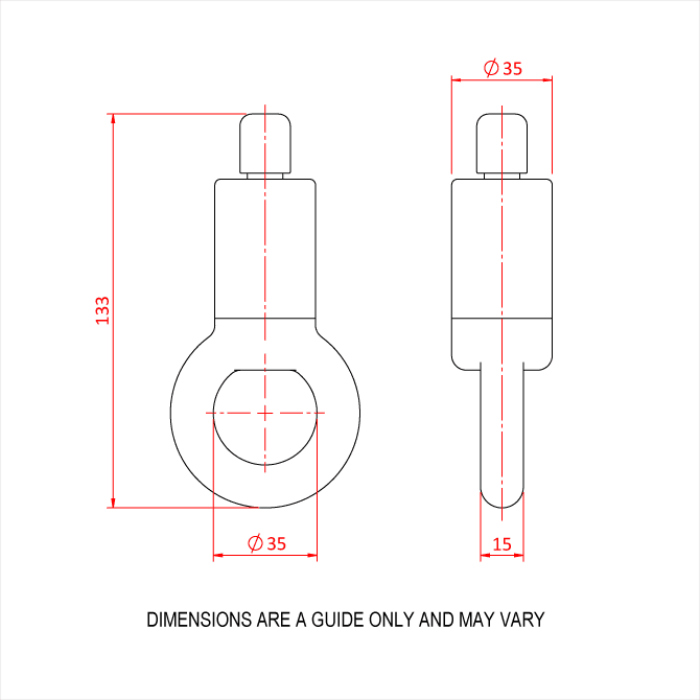

  • Doughty 66SV III with Ring - Drophead drawing with dimensions indicated in millimeters. - imagen 2

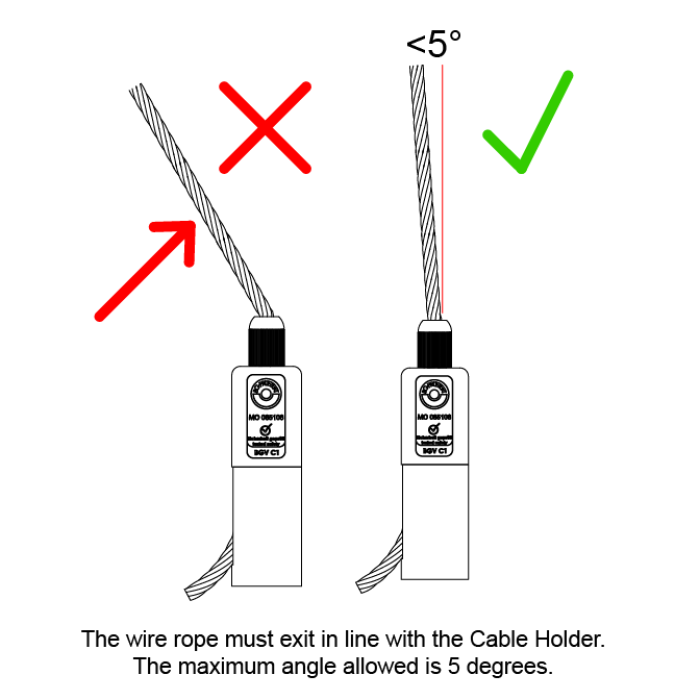

  • Doughty 66SV III with Ring - Cable holder alignment guide with angle restriction. - imagen 3

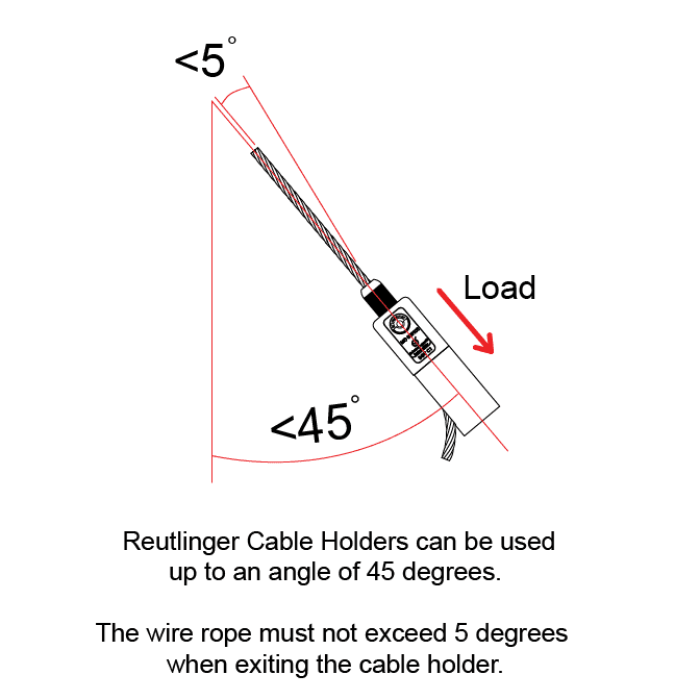

  • Doughty 66SV III with Ring - Reutlinger cable holder usage angles and load indications. - imagen 4

Doughty 66SV III with Ring

Doughty Engineering |
SKU: T37661
€58.12incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Enhanced Functionality. Integrated ring design allows for flexible use - perfect for 6mm steel wire rope applications in stage productions.
  • Safety Compliance. Meets BGV C1 standards for safety in performance environments - suitable for demanding applications like live events and fairs.
  • WLL: 90Kg (5mm) / 135Kg (6mm) / 150Kg (6.35mm/1/4in). Always keep the applied load within this rated limit.
  • Tool-Free Operation. Quick adjustments and installations require no tools - streamlining setup on busy event days.
  • Versatile Use. Ideal for stage productions, fairs, and more - ensuring reliable performance across various live event setups.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 66SV III with Ring

The Doughty 66SV III with Ring is a versatile Type 66SV Reutlinger Cable Holder, designed with an integrated ring for enhanced functionality. Well suited to use with 6mm steel wire rope, this cable holder is engineered for demanding applications requiring BGV C1 compliance, making it perfect for stage productions, fair booths, and more. Its clever design allows for repositioning without damaging the cable, and it requires no tools for adjustments.

Key Features

  • Designed for 6mm steel wire rope
  • Complies with BGV C1 standards
  • Repositionable without cable damage
  • Tool-free installation and adjustments

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

How much does the rating drop if I use 5mm wire instead of the full 6.35mm this holder supports?
It drops from 150Kg down to 90Kg, a significant difference. Always check the exact wire diameter you're using against the matching WLL figure rather than assuming the top rating applies.
What connector do I need to attach a fixture to the ring on this holder?
A shackle, carabiner, or similar rated connector, since the ring itself is a closed fitting that doesn't clip directly onto a fixture.
Is the 66SV with Ring suitable for permanent installations or just temporary rigging?
Doughty doesn't distinguish permanent vs temporary use in the spec, but as a repositionable, tool-free cable holder, it's commonly used in touring and temporary stage rigging where height adjustment on site is a priority.
