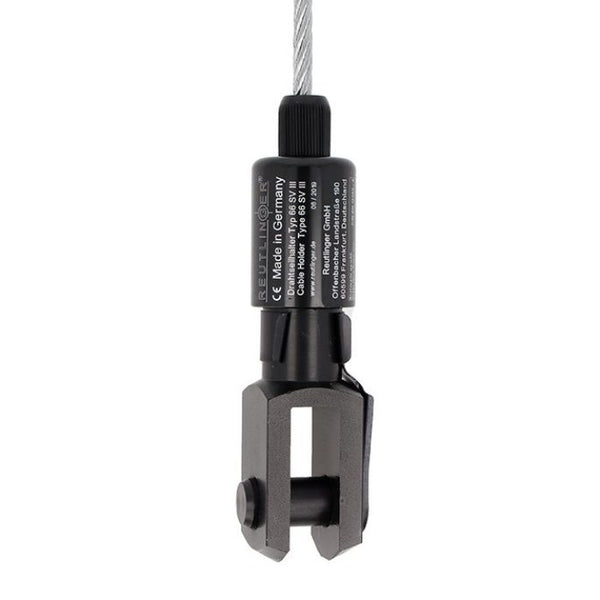

• Doughty 66SV III with Fork - Reutlinger cable holder, type 66SVIII, black finish.

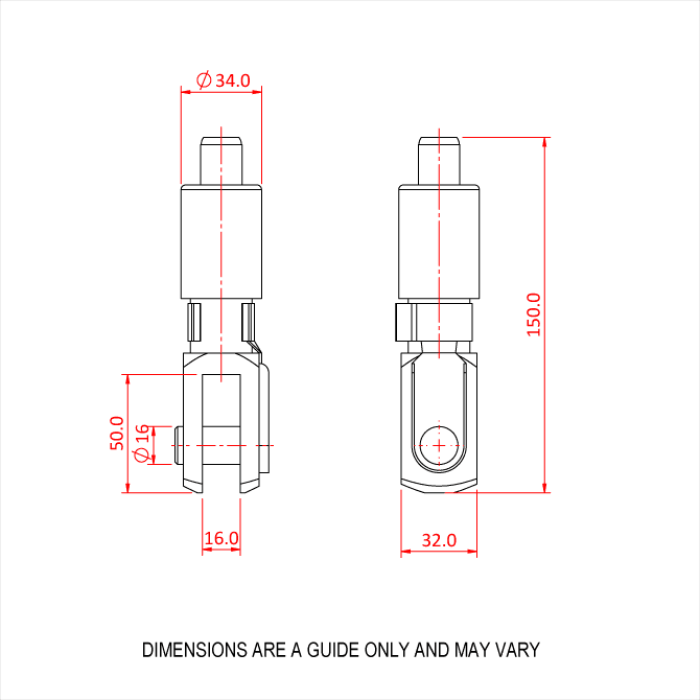

  • Doughty 66SV III with Fork - Hydraulic cylinder design with dimensional measurements. - imagen 2

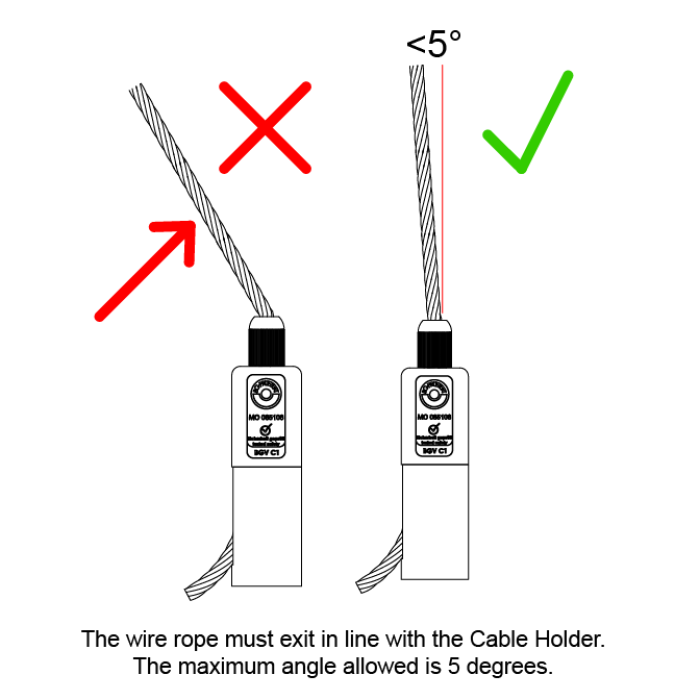

  • Doughty 66SV III with Fork - Cable holder alignment guide with angle limit. - imagen 3

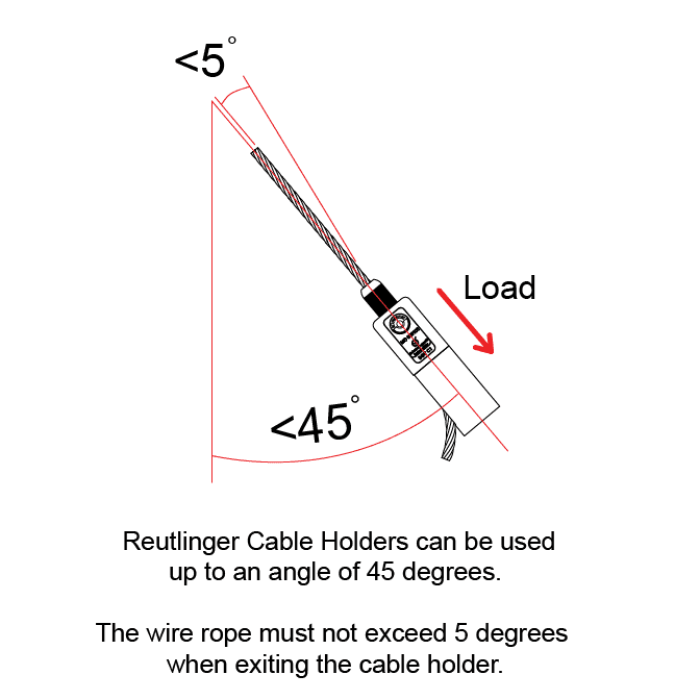

  • Doughty 66SV III with Fork - Cable holder diagram, recommended angle limits, load direction. - imagen 4

Doughty 66SV III with Fork

Doughty Engineering |
SKU: T37662
€71.20incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Seamless Compatibility. Designed specifically for 6mm steel wire rope - ideal for stage productions and fair booths.
  • BGV C1 Compliance. Ensures safety and reliability during performances - meets industry standards for professional rigging.
  • WLL: 90Kg (5mm) / 135Kg (6mm) / 150Kg (6.35mm/1/4in). Always keep the applied load within this rated limit.
  • Cable Preservation. Innovative design prevents cable damage during adjustments - protects your equipment for longer use.
  • Durable Fork Design. Built to withstand demanding applications - ensures consistent performance in live events and productions.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 66SV III with Fork

The Doughty 66SV III with Fork is an exceptional Type 66SV Reutlinger Cable Holder designed with a fork, specifically engineered to work seamlessly with 6mm steel wire rope. Perfectly suited for demanding applications like stage productions and fair booths, this cable holder ensures compliance with BGV C1 standards. Its clever design allows for repositioning without any damage to the cable and requires no tools for adjustments.

Key Features

  • Compatible with 6mm steel wire rope
  • Designed to meet BGV C1 compliance
  • Tool-free cable repositioning
  • No cable damage during adjustments

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What's the maximum wire diameter this fork-style holder accepts?
6.35mm (1/4 inch), which gives the highest rating in this range at 150Kg. Thinner 5mm or 6mm wire is also supported but at lower ratings of 90Kg and 135Kg respectively.
Does the fork fitting let me disconnect the load quickly on site?
Yes, that's the main advantage of a fork over a ring or M16 thread. Once the retaining pin is removed, the connection can be undone by hand without tools.
Why would a rigger choose 66SV over the smaller 30SV or 50SV ranges for the same job?
Mainly for the extra capacity and thicker wire compatibility. If your fixture's weight or house rigging spec calls for more than 90Kg or wire above 5mm, 66SV is the appropriate step up.
