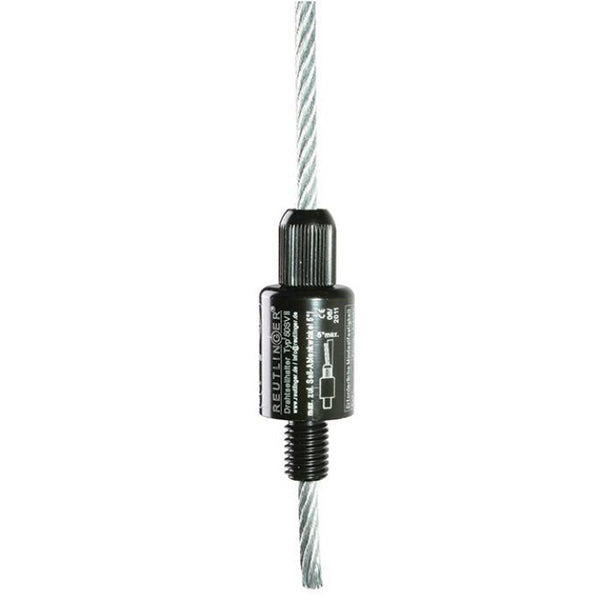

• Doughty 66SV II M16 Male - Reutlinger tension wire rope adjuster with black body.

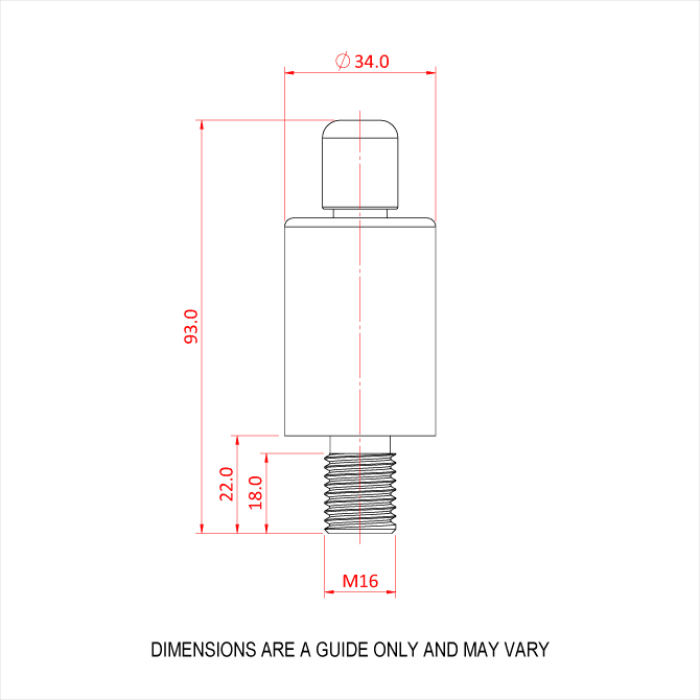

  • Doughty 66SV II M16 Male - Technical schematic of threaded cylindrical component, M16 dimensions. - imagen 2

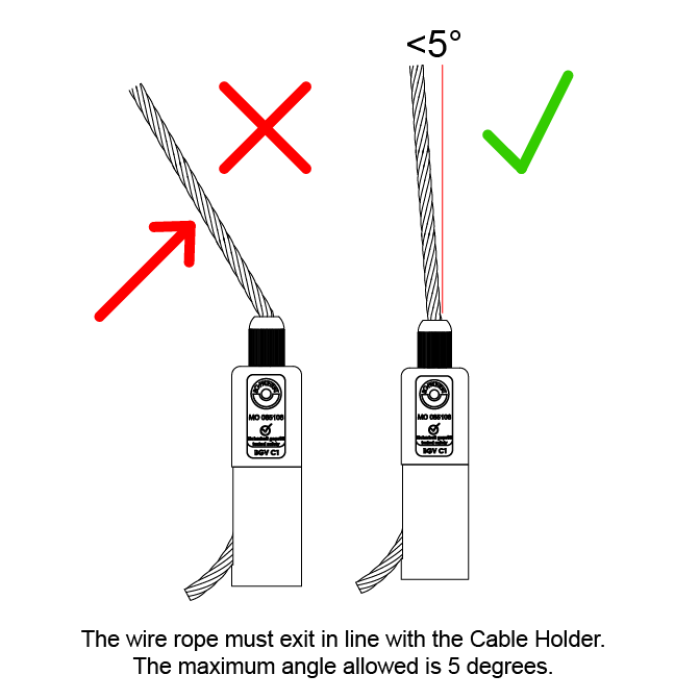

  • Doughty 66SV II M16 Male - Cable holder with alignment guide for wire ropes. - imagen 3

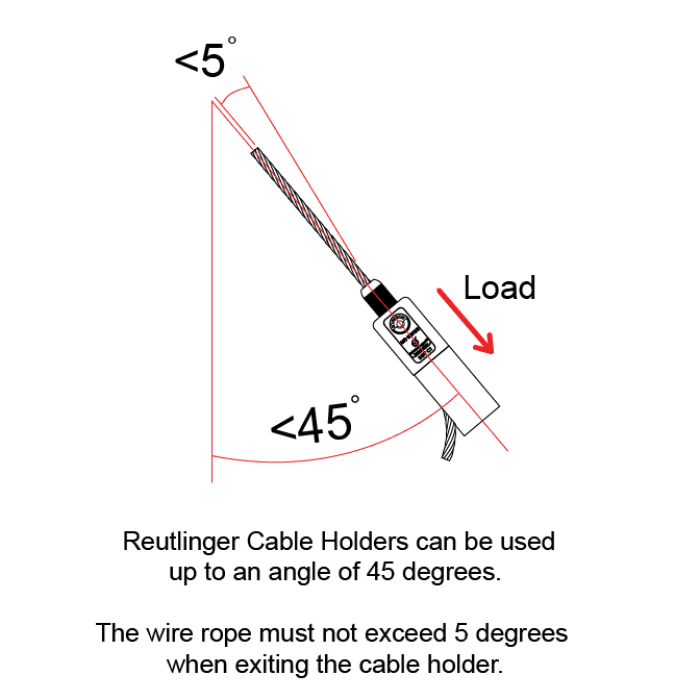

  • Doughty 66SV II M16 Male - Reutlinger cable holders, wire angle diagram, load instructions. - imagen 4

Doughty 66SV II M16 Male

Doughty Engineering |
SKU: T37660
€58.47incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Versatile Compatibility. Fits M16 Male threads for seamless integration - perfect for a wide range of staging applications.
  • BGV C1 Compliance. Meets essential safety standards for stage productions and fairs - essential for risk management in live events.
  • WLL: 90Kg (5mm) / 135Kg (6mm) / 150Kg (6.35mm/1/4in). Always keep the applied load within this rated limit.
  • Durable Construction. Designed specifically for 6mm steel wire rope - ensures reliability in demanding environments.
  • Efficient Cable Management. Securely holds cables while allowing easy adjustments - crucial for maintaining a neat and organized rig.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 66SV II M16 Male

The Doughty 66SV II M16 Male is a versatile Type 66SV Reutlinger Cable Holder equipped with an M16 Male thread. Engineered for 6mm steel wire rope, this cable holder suits settings where compliance with BGV C1 is essential, such as in stage productions and fair booths. Its design ensures easy repositioning without causing cable damage, all without the need for tools.

Key Features

  • Type 66SV Reutlinger Cable Holder
  • M16 Male thread compatibility
  • Suitable for 6mm steel wire rope
  • BGV C1 compliance for specialized applications
  • Tool-free cable repositioning

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

When would I need the 66SV range instead of the 50SV?
The 66SV covers thicker wire, up to 6.35mm at 150Kg, while the 50SV tops out at 5mm and 90Kg. Step up to 66SV when your fixture's weight or your house rigging standard calls for heavier gauge wire rope.
What's the M16 thread used for on this cable holder?
It lets you screw the holder onto a matching M16 threaded stud or fitting, giving a fixed connection point rather than the pin or ring style used on the Fork and Ring variants.
Can I use 5mm wire in a 66SV holder, or is it only for 6mm and above?
Yes, 5mm is supported at a 90Kg rating, the same as the top end of the 50SV range. The 66SV becomes the better choice once you move up to 6mm or 6.35mm wire for higher loads.
