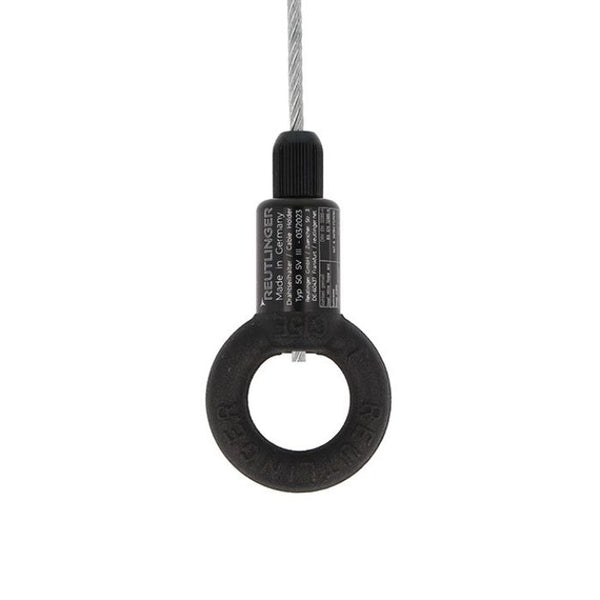

• Doughty 50SV III with Ring - Reutlinger adjustable cable stopper with ring attachment.

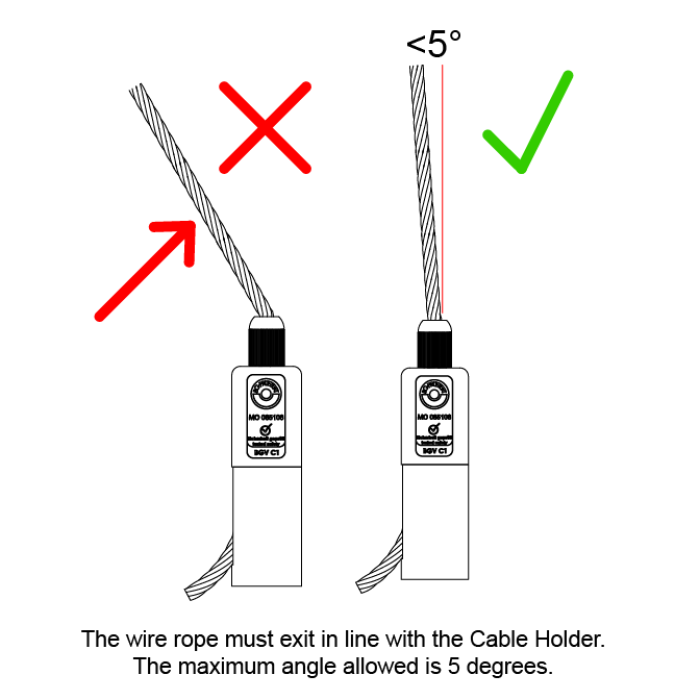

  • Doughty 50SV III with Ring - Cable holder alignment diagram with correct angles. - imagen 2

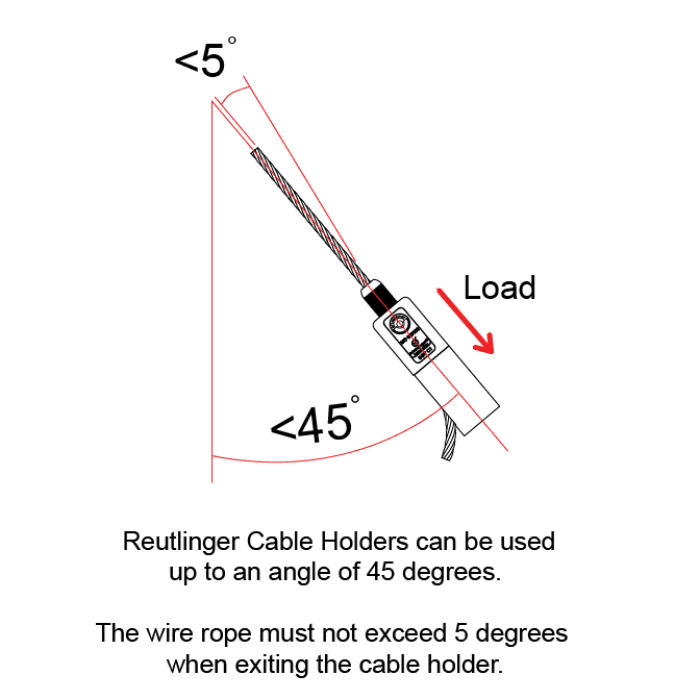

  • Doughty 50SV III with Ring - Reutlinger cable holder, angle limit diagram, 45 degrees - imagen 3

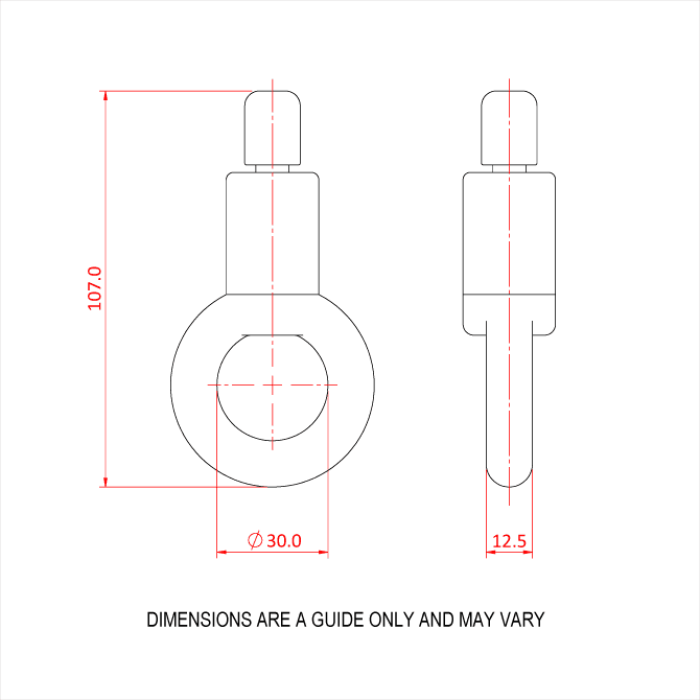

  • Doughty 50SV III with Ring - Steel lifting eye bolt dimensions diagram, 107mm height. - imagen 4

Doughty 50SV III with Ring

Doughty Engineering |
SKU: T37651
€35.53incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • BGV C1 Compliant. Ensures safety and reliability in professional environments - ideal for stage productions and fair booths.
  • Secure Cable Fit. Accommodates 4 or 5mm steel wire ropes with precision - designed for rigorous usage in touring and live events.
  • WLL: 60Kg (4mm Wire) / 90Kg (5mm Wire). Always keep the applied load within this rated limit.
  • Versatile Design. Adaptable to various applications across the industry - perfect for both temporary and permanent installations.
  • Professional Quality. Built for reliable performance under demanding conditions - trusted by industry leaders in TV, film, theatre, and live events.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 50SV III with Ring

The Doughty 50SV III with Ring is a reliable and versatile cable holder built for professional use. It suits environments that require adherence to BGV C1 standards, such as stage productions and fair booths. This product is specifically crafted to accommodate 4 or 5mm steel wire ropes, ensuring a secure and safe fit.

Key Features

  • Compatible with 4 or 5mm steel wire ropes
  • Designed to meet BGV C1 compliance standards
  • Repositionable without causing cable damage
  • Tool-free installation and adjustment

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What's the difference between this and the ZW with Ring-Side Exit Wire version?
Both share the same 60Kg (4mm) and 90Kg (5mm) WLL, but this standard version routes the wire straight through the holder, while the ZW version has a side exit for the wire, useful when the cable needs to change direction near the fixing point.
Is 50SV rated for heavier loads than the 30SV range?
Yes. The 50SV covers 4mm and 5mm wire up to 90Kg, while the 30SV range tops out at 85Kg on 3mm galvanised wire, so 50SV suits heavier fixtures or thicker wire rope.
Do I need a separate connector to attach a fixture to this ring?
Yes. The ring is a closed fitting, so you'll need a shackle, carabiner, or similar connector to link it to your fixture rather than clipping on directly.
