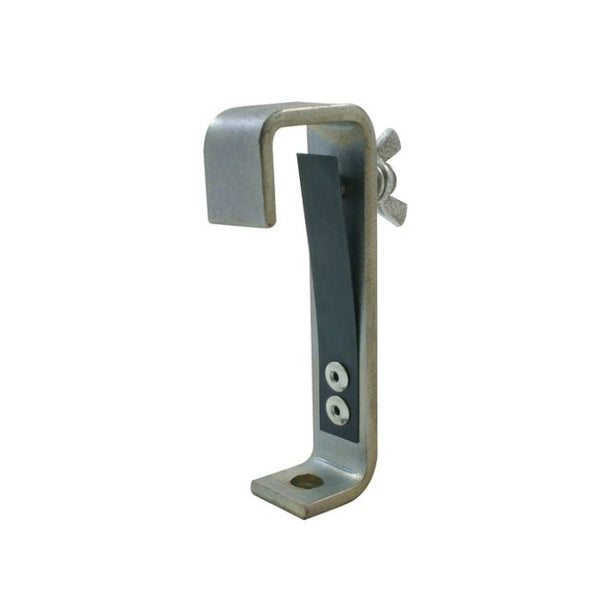

• Doughty 30mm Hook Clamp c/w Protector Strip - Steel solar panel end clamp bracket.

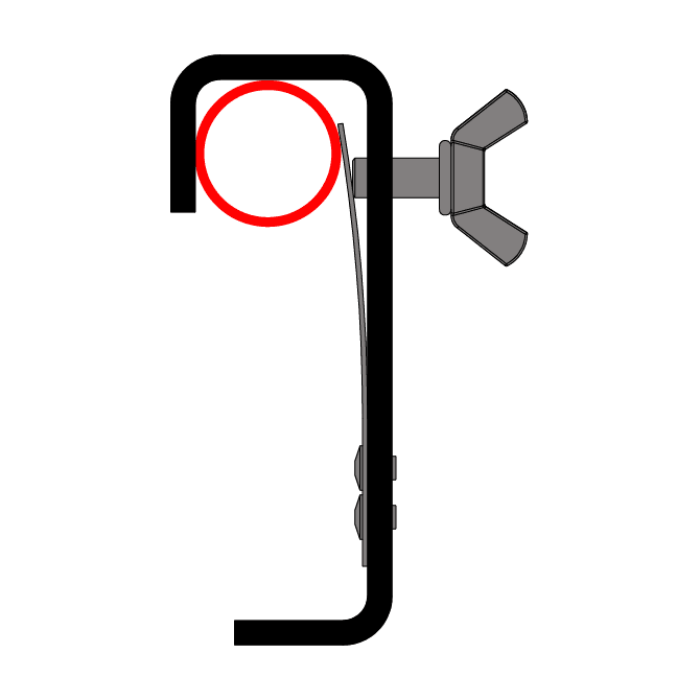

  • Doughty 30mm Hook Clamp c/w Protector Strip - Guitar capo with adjustable tension mechanism. - imagen 2

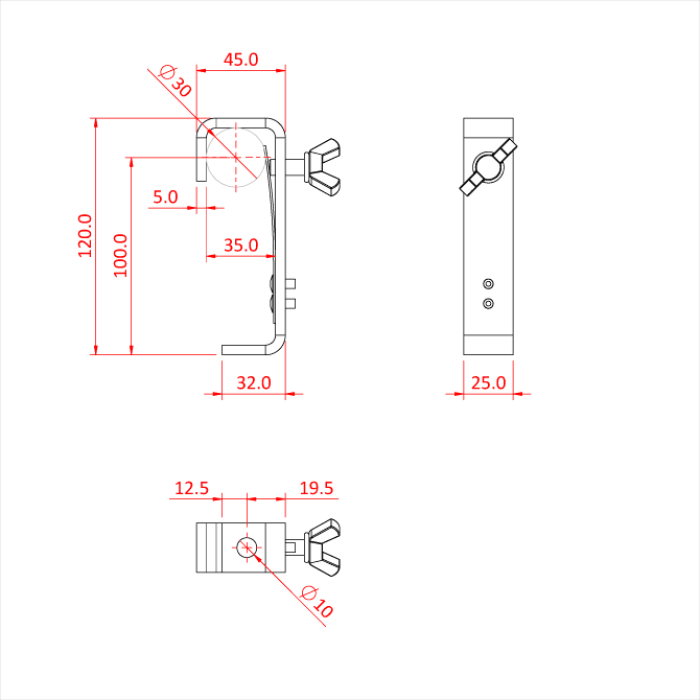

  • Doughty 30mm Hook Clamp c/w Protector Strip - Technical bracket diagram with detailed measurements and dimensions. - imagen 3

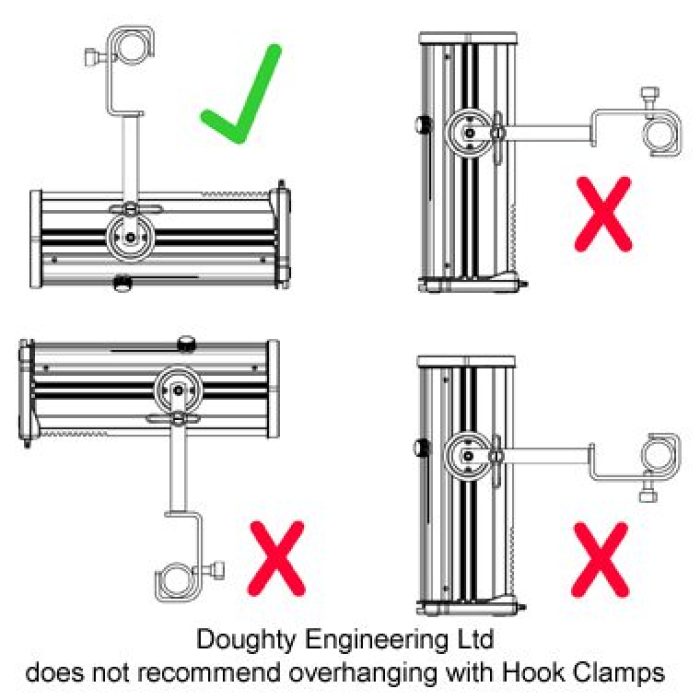

  • Doughty 30mm Hook Clamp c/w Protector Strip - Correct hook clamp installation diagram by Doughty Engineering. - imagen 4

Doughty 30mm Hook Clamp c/w Protector Strip

Doughty Engineering |
SKU: T20212
€13.07incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Secure Attachment. Easily fasten to 30mm tubes for reliable rigging - essential for TV, film, and live events.
  • WLL: 15Kg. Always keep the applied load within this rated limit.
  • Corrosion Resistant. Zinc-plated finish enhances durability in various environments - ideal for outdoor and indoor applications.
  • Customization Options. Available in a powder-coated black finish for aesthetic flexibility - suitable for all production designs.
  • Bulk Order Availability. Custom stamping for orders of 500+ units - perfect for large-scale productions or touring companies.
View Full Description Technical Data

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Seleziona il paese
Inserisci il codice postale corretto

shipping

Test heading

Doughty 30mm Hook Clamp c/w Protector Strip

The Doughty 30mm Hook Clamp c/w Protector Strip is a reliable and robust solution for securely attaching to 30mm diameter tubes. Constructed from durable steel, it features a protector strip to safeguard the tube surface, ensuring longevity and stability in your rigging setup. With a zinc-plated finish, this hook clamp offers enhanced resistance against corrosion, making it well suited to various environments. For added customization, a powder-coated black finish is available upon request.

Key Features

  • Designed for 30mm diameter tubes
  • Includes a protective strip to prevent tube damage
  • Durable steel construction with a zinc-plated finish
  • Optional powder-coated black finish available
  • Custom stamping available for bulk orders of 500+ units

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Why does this hook clamp have a protector strip and do I need it?
The strip sits between the clamp and the tube to stop the metal-on-metal contact from scratching or denting the tube surface. It's worth choosing over the plain version whenever you're clamping onto painted, anodised, or visible tube where marks would show.
Is a 15Kg hook clamp strong enough for a small LED fixture or camera light?
For most compact LED panels, small practicals, and lightweight accessories under 15Kg, yes. Always check the actual weight of the fixture (including any cables or accessories attached) against the 15Kg limit before rigging.
What's the difference between this 30mm clamp and Doughty's 20mm or 50mm hook clamps?
The number refers to the tube diameter it fits, not a size ranking of strength. The 30mm clamp is for 30mm bars specifically. If your tube is 48-51mm (standard truss), you'd need the 50mm clamp instead, which also carries a higher WLL.
