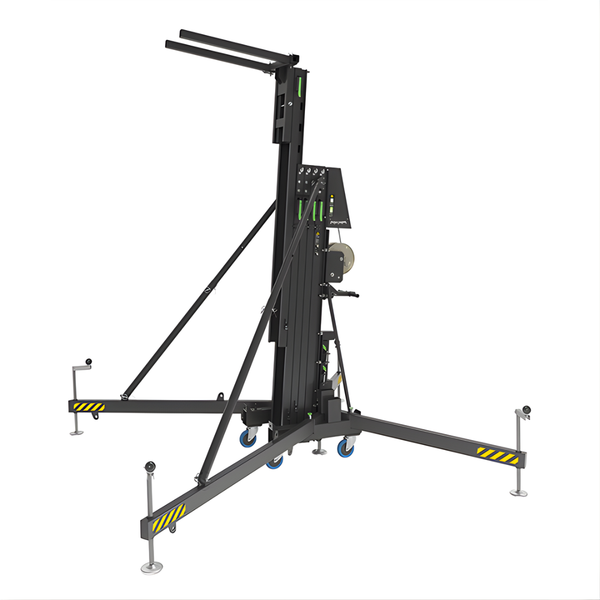

• Kuzar K-60 line array lift fully assembled with loading forks extended and outrigger legs deployed

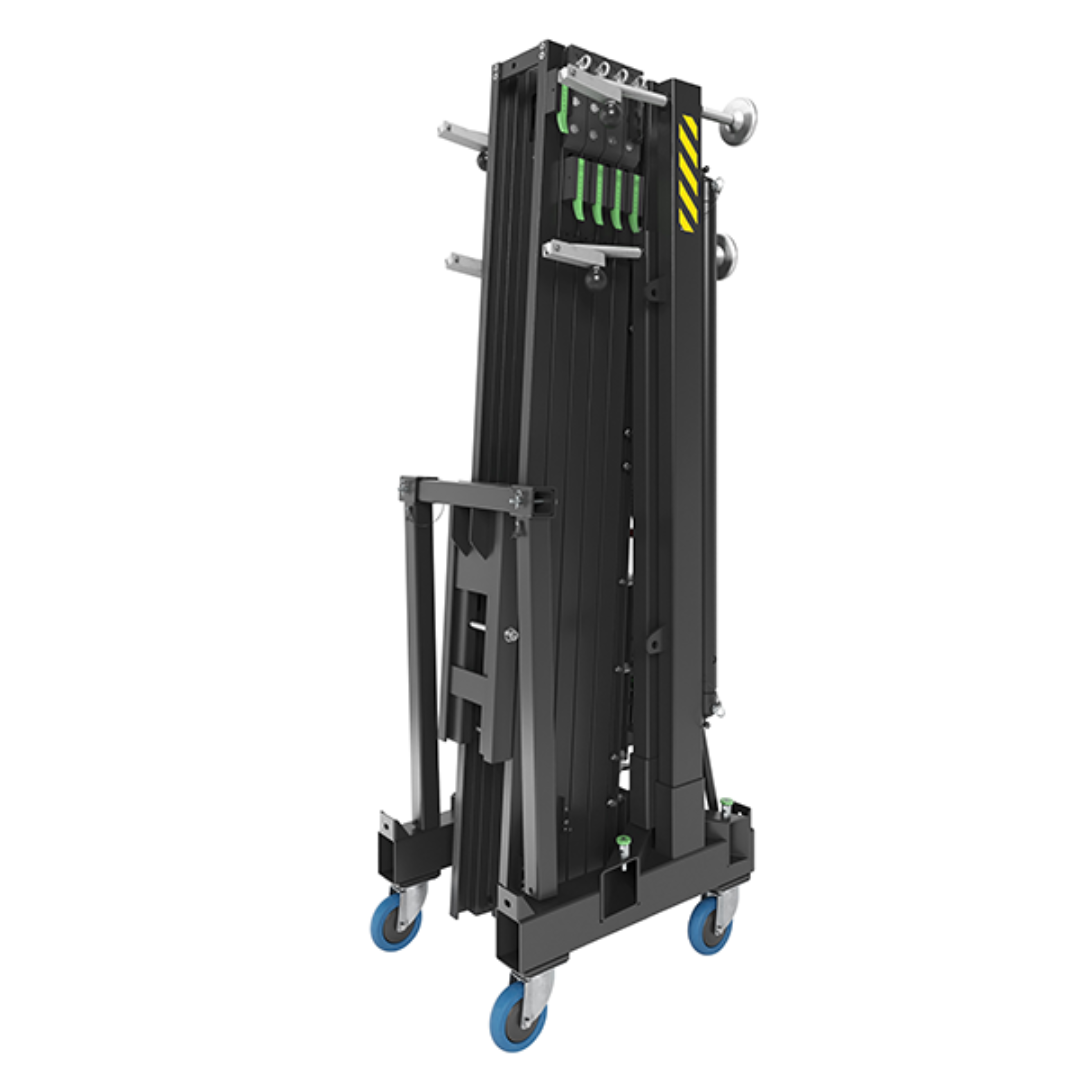

  • Kuzar K-60 line array lift folded for transport on its swivel castors - imagen 2

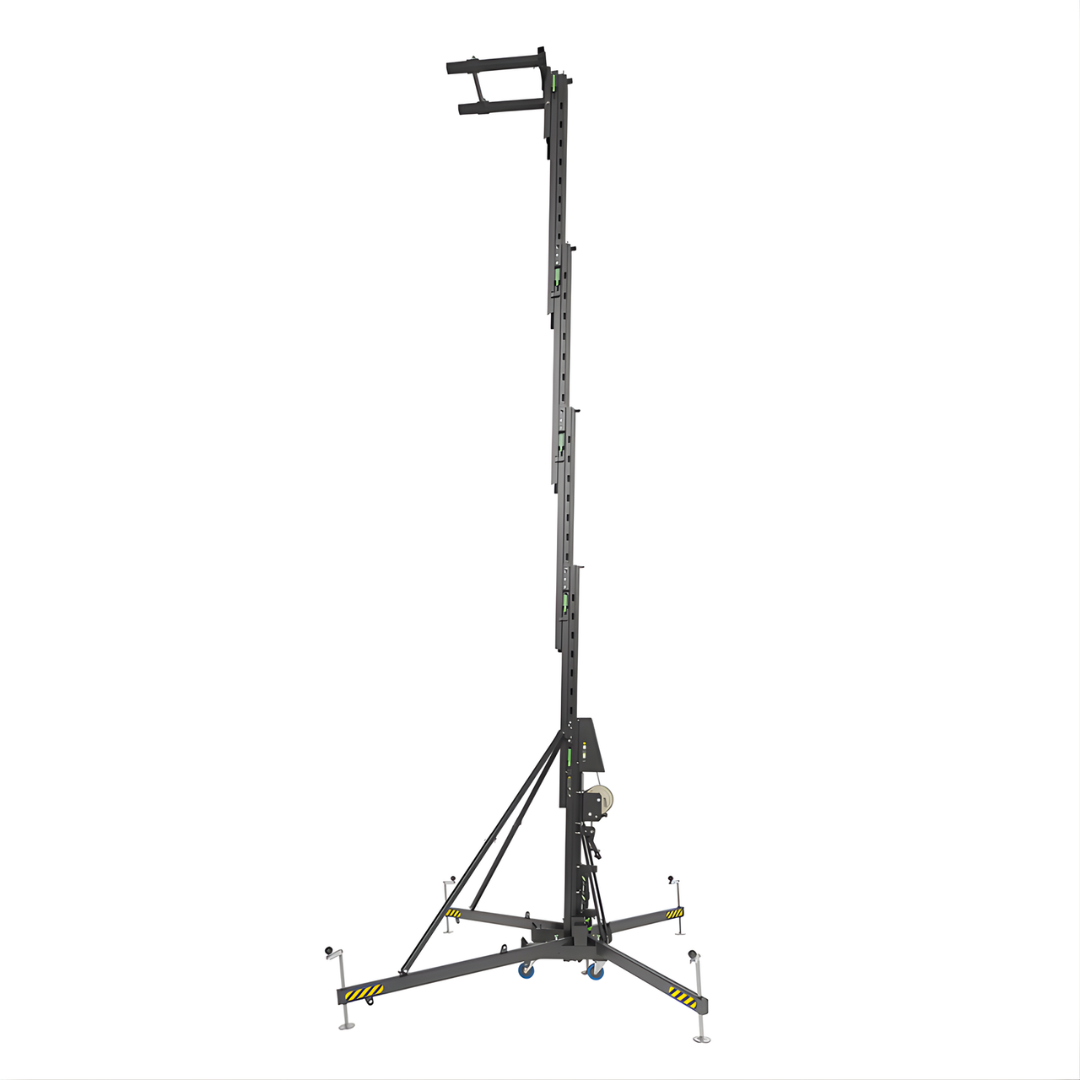

  • Kuzar K-60 line array lift fully extended at its maximum 7.2 m working height - imagen 3

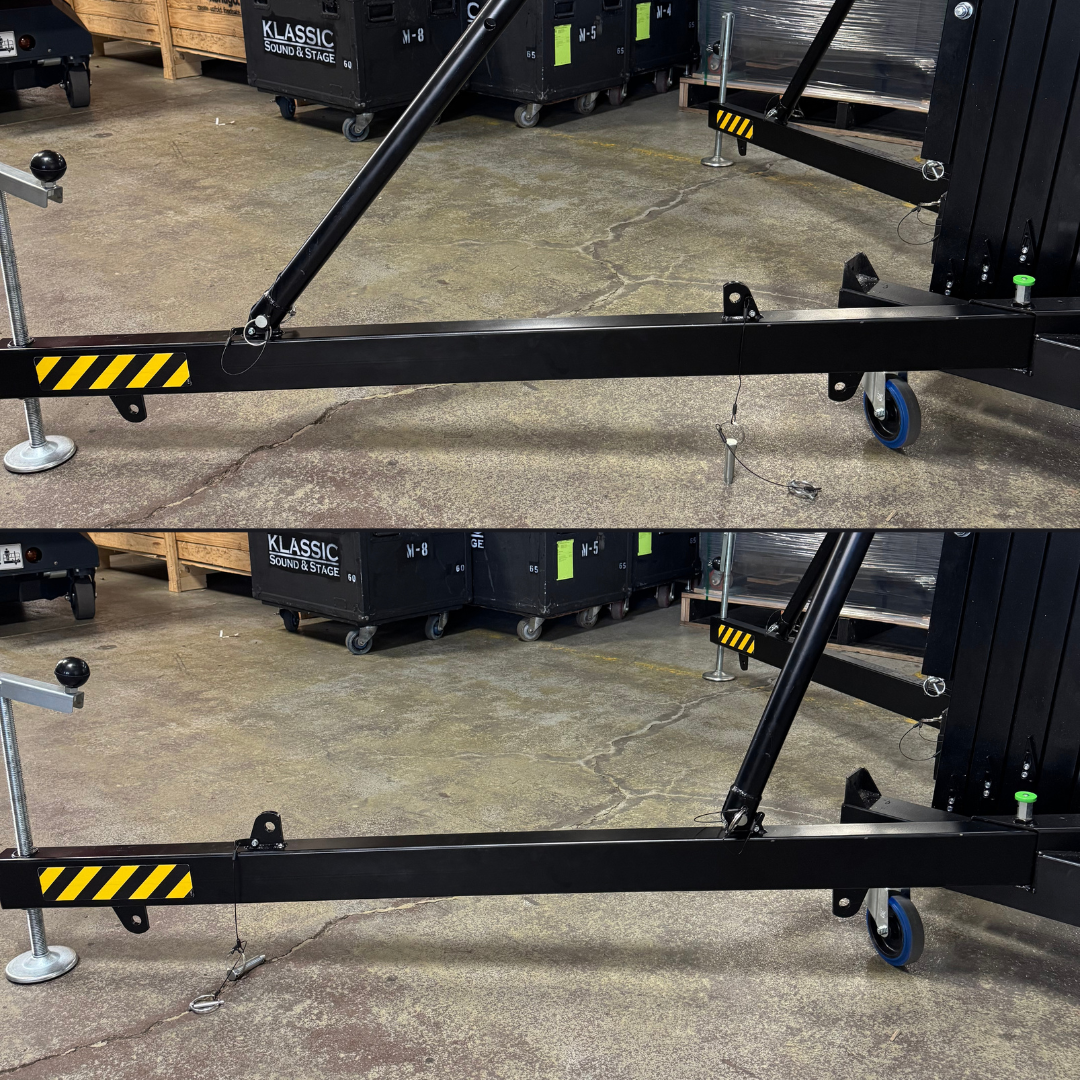

  • Kuzar K-60 outrigger legs and steel base detail with hazard marked stabilizers - imagen 4
  • Kuzar K-60 SLS Safe Lock System trigger detail on each aluminium section - imagen 5

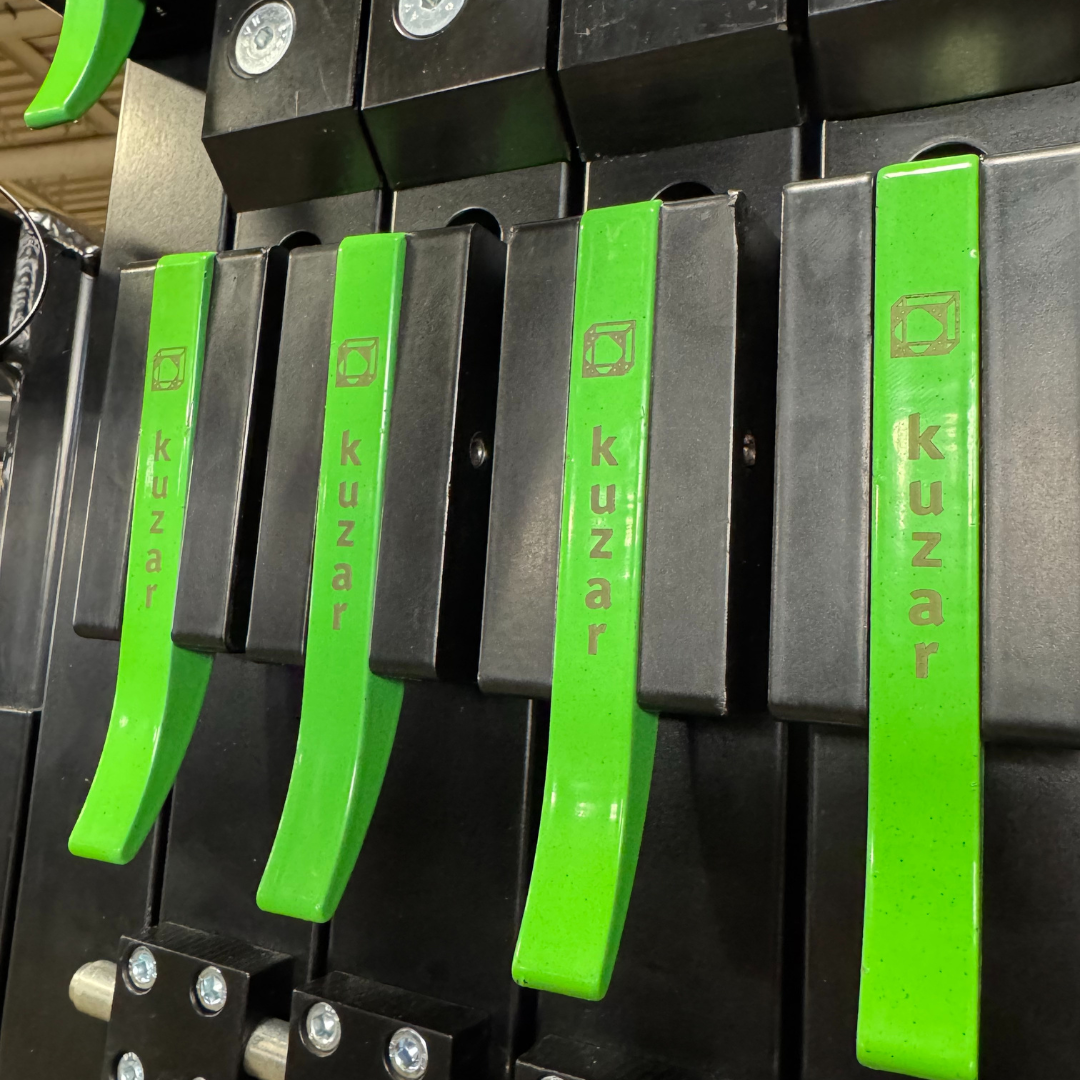

  • KAT Lock System - Kuzar K-60 - imagen 6

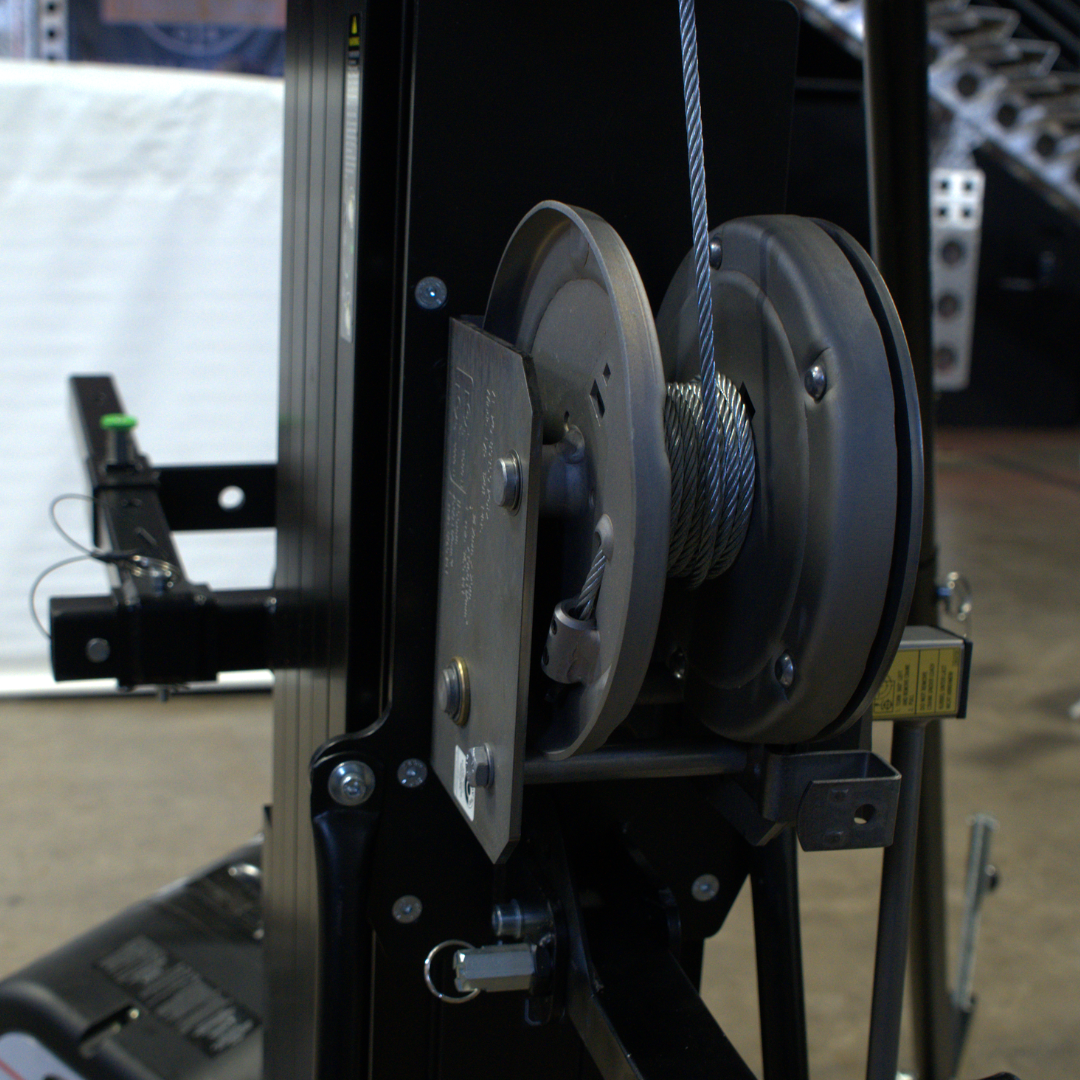

  • Kuzar K-60 winch and pulley mechanism detail with steel cable - imagen 7

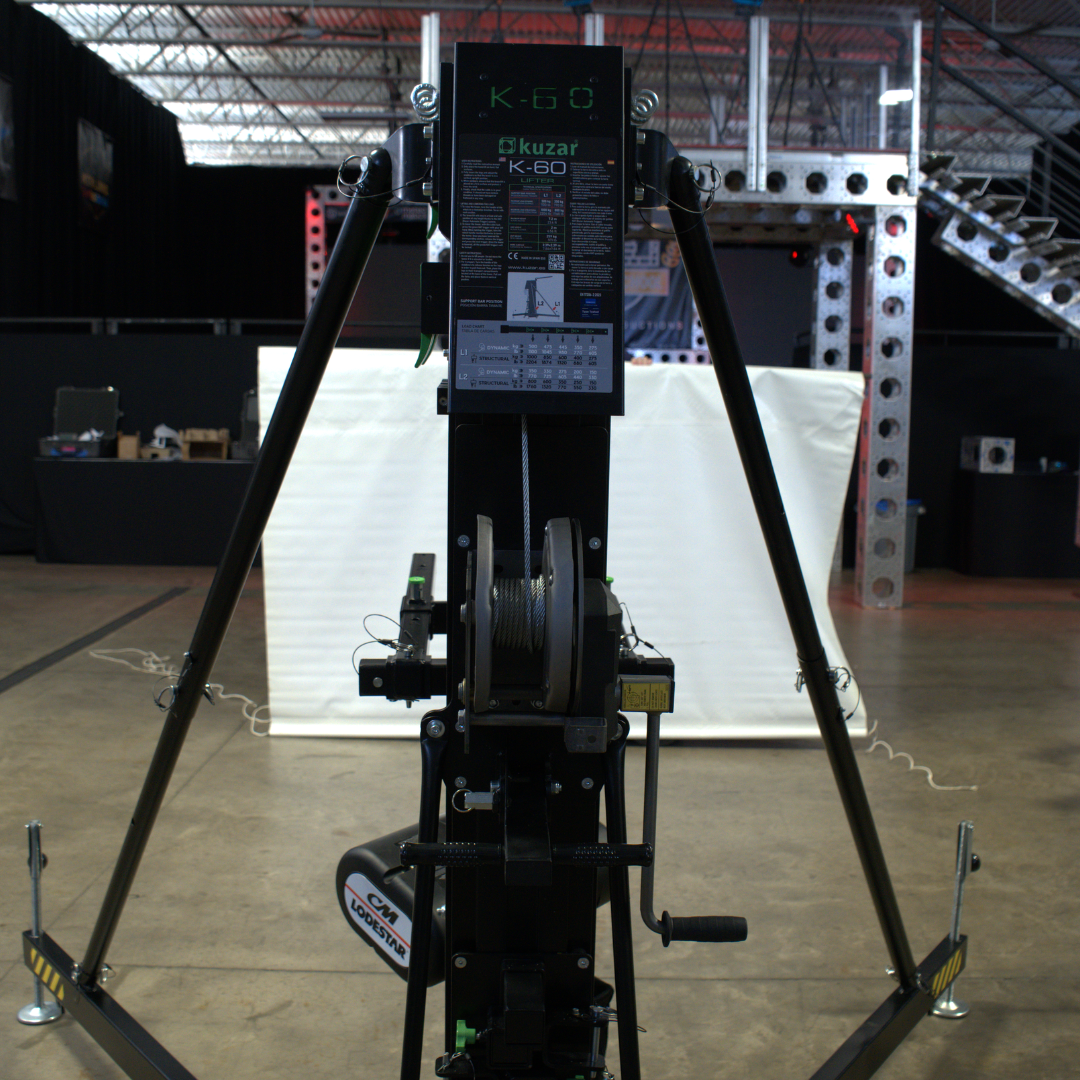

  • Kuzar K-60 line array lift set up in a workshop showing full tripod base and control panel - imagen 8

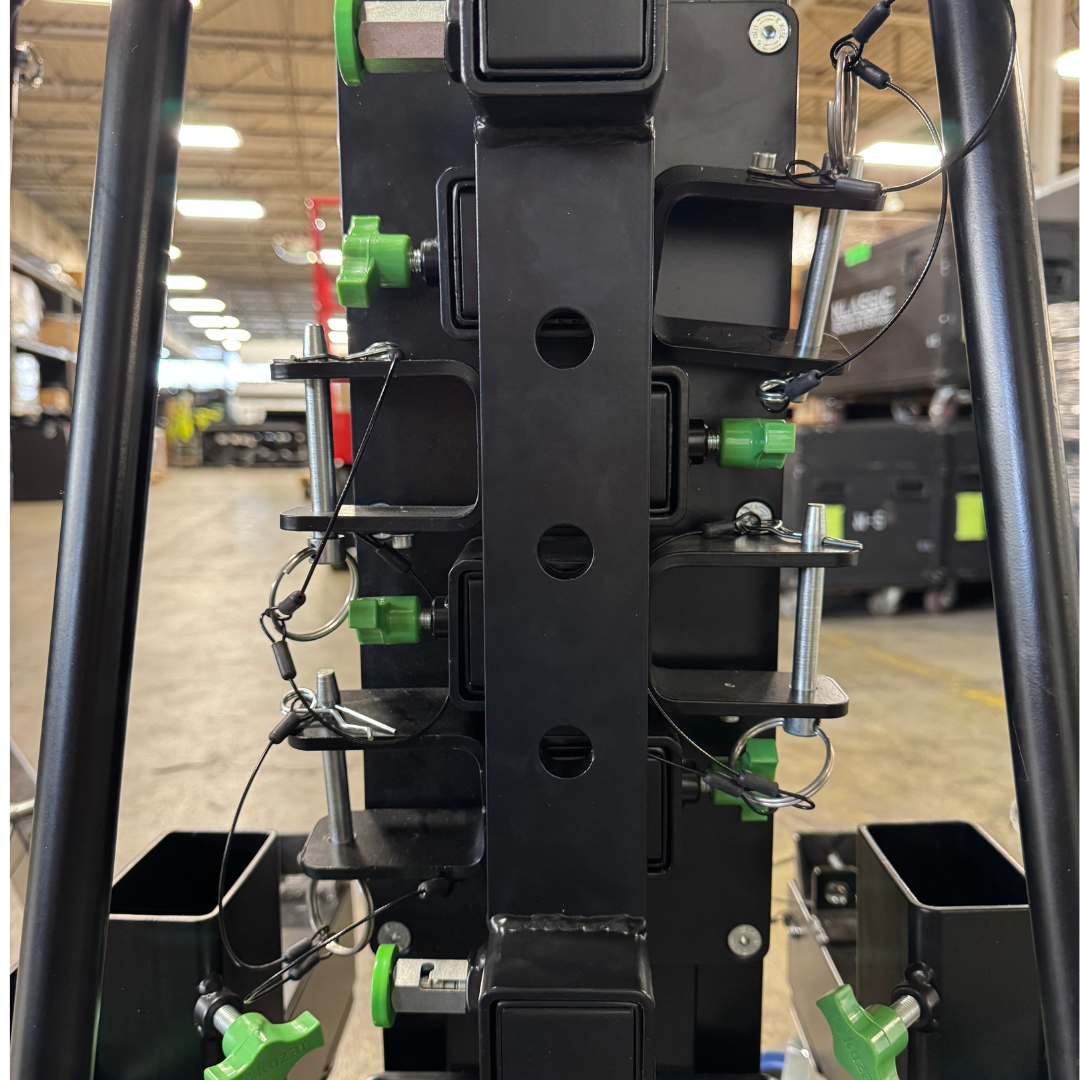

  • Rigging attachment storage - Kuzar K-60 - imagen 9

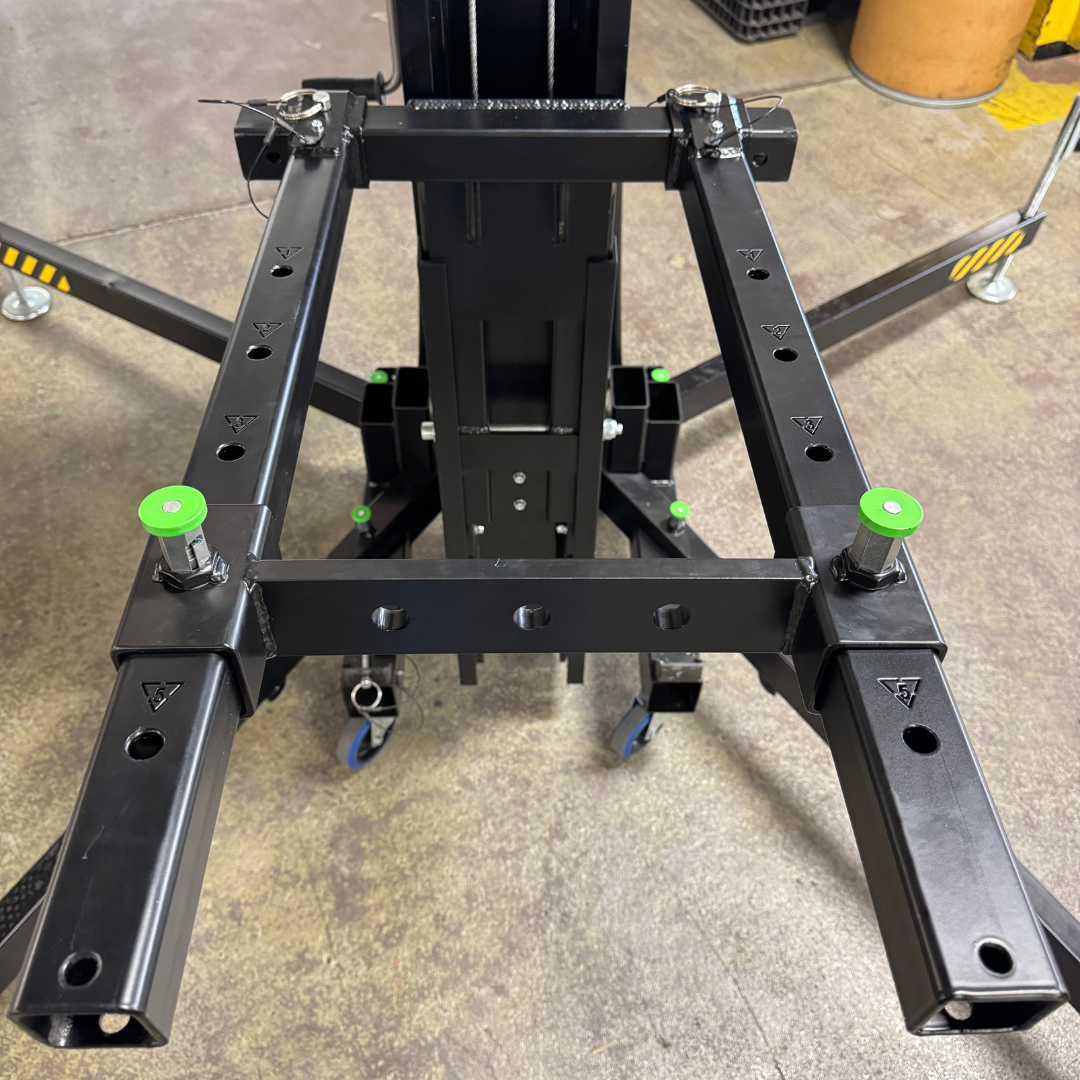

  • Forks with laser-cut position location - Kuzar K-60 - imagen 10

Kuzar K-60 Line Array Lift

Kuzar |
SKU: K-60
€5,024.08incluido IVA

incluido TINA. Envío calculado al finalizar la compra.

2 years warranty
  • Multifunctional Lifting: Works as a line array lift or front load lift, raising 500 kg to 7.2 m or 1000 kg in structural mode.
  • SLS Safety System: Automatic section locking during elevation, backed by an internal pendulum brake.
  • TÜV Certified: EN 17206-2:2023 certification, unique for this type of lifting tower.
  • Made in Spain: 259 kg net weight, 2-year warranty, ships with AGR-1 and TA-2 accessories fitted.
Ver descripción completa Datos técnicos

Métodos de pago aceptados

american_expressapple_paybancontactgoogle_payidealklarnamaestromasterpaypalshopify_payunionpayusdcvisa

A menudo se compran juntos

Seleccione los elementos que desea agregar

Incluido
Kuzar K-60 Line Array Lift
incluido IVA
+
Soporte del sistema Kuzar Line Array AGR-1
incluido IVA
+
Kuzar TA-2 Pieza U para Carga Transversal Negro
incluido IVA
+
Elevador Kuzar Line Array K-31
incluido IVA
Seleccione el país
Ingrese el código postal correcto

envío

Test heading

Kuzar K-60 Line Array Lift

The Kuzar K-60 line array lift is the most powerful model in the Kuzar range, TÜV certified to EN 17206-2:2023, the only lifter of its kind on the market with this certification. It lifts 500 kg to a height of 7.2 m in dynamic mode, or up to 1000 kg in structural mode, where the tower is locked at the required height and a manual or electric hoist performs the lift.

Key Features

  • TÜV certified to EN 17206-2:2023, unique among line array and front load lifts
  • Lifts 500 kg to 7.2 m in dynamic mode, or up to 1000 kg in structural mode
  • SLS Safe Lock System automatically secures every section during elevation
  • Internal pendulum brake adds extra protection against sudden drops
  • Two telescopic lateral braces increase stability in tight spaces
  • Ships with one AGR-1 and four TA-2 accessories for line array and trussing
  • Steel base on four 360 degree swivel castors with central steering handle
  • 2-year warranty, made in Spain

Construction & Accessories

Built from five 6082-T6 black epoxy powder coated aluminium sections, the K-60 is raised by a manual AL-KO winch with galvanised steel cable. The K-60 ships with one AGR-1 Line Array System Support and four TA-2 U Piece accessories fitted to the body, ready to lift both line array systems and trussing. The steel base sits on four swivel castors with a central steering handle, with mounting points for an optional pallet truck accessory. Two 75 cm steel loading forks rotate 180 degrees and attach to a reinforced steel lifting carriage, with all pins and clips secured by nylon coated steel lanyards.

Why Kuzar K-60

As an affordable alternative to many line array and front load lifts, the Kuzar K-60 stays virtually invisible to audiences thanks to its black anodized finish, blending in seamlessly backstage. Built-in safety features make it quick to transport and set up, keeping productions and live events safe and efficient across both line array and trussing applications.

Browse the full Kuzar lifts collection at MTN Shop EU.

Preguntas frecuentes

What does multifunctional mean on the Kuzar K-60?
Multifunctional means the K-60 line array lifting tower works as both a line array lift and a front load lift, fitted with AGR-1 and TA-2 accessories so the same tower handles speaker arrays and trussing without extra parts.
What is structural mode on the Kuzar K-60?
In structural mode the K-60 locks fully at the chosen working height and a separate manual or electric hoist raises the load, allowing up to 1000 kg compared with 500 kg in standard dynamic mode.
How heavy is the Kuzar K-60 lifting tower?
The Kuzar K-60 weighs 259 kg and folds to 2 m for transport, built from black epoxy powder coated aluminium sections on a steel base with swivel castors for moving it around a venue.
Is the Kuzar K-60 certified for professional use?
Yes, the K-60 holds TÜV certification to EN 17206-2:2023 and CE marking under 2006/42/EC, making it suitable for professional touring, broadcast and fixed installation use across the EU.
