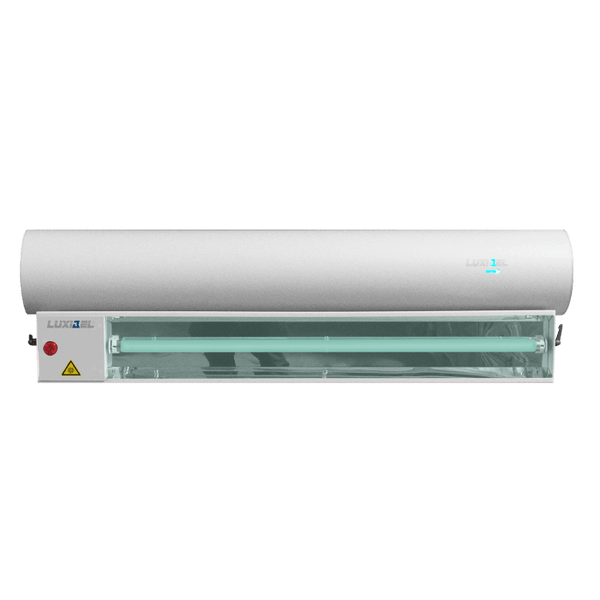

Luxibel UVC Sterilizer - B Hybrid (up to 25 m²)

Rooms and materials can be disinfected bacterially and virally thanks to the Direct & Indirect UV Light System

Lamp Lifetime: 9000 hours┋Eliminates 99% of Viruses etc┋Up to 25 m²┋Broad Application┋No Ozone Emission┋Made in Europe┋For Air & Surface Disinfection

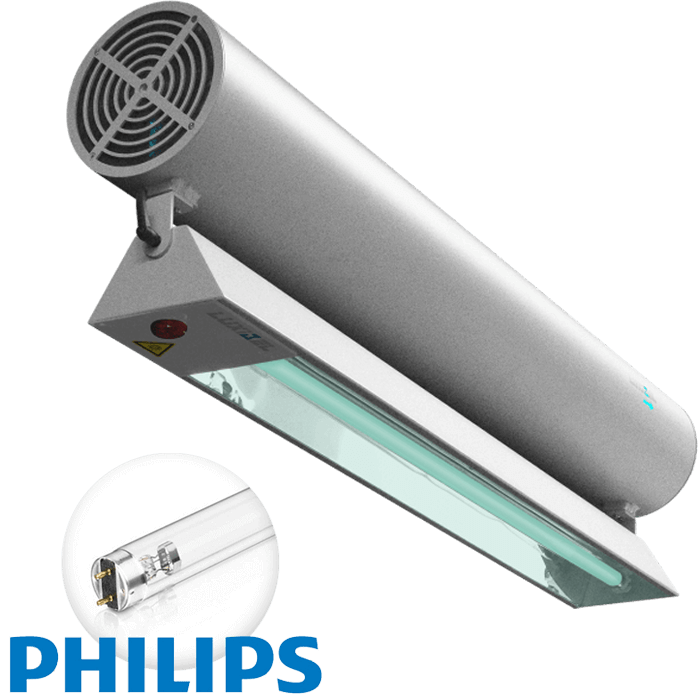

Manufactured in Europe with high-quality PHILIPS UVC germicidal lamps, B HYBRID takes care of 24h air disinfection in the presence of people and animals and eliminates bacteria, viruses and fungal and mould spores in the air. All direct-radiating fixtures have standard double security with a moving sensor and extra safety.

This direct & indirect UVC sterilizer can be used in production halls, health care facilities, pharmacies, public transport, shops and many more. We are now accepting pre-orders. Orders require a lead time of 2 weeks for delivery.

Data Sheet - User Manual - UVC Disinfection Blog with 7 FAQs

FEATURES & BENEFITS:

• A safe, reliable and sustainable disinfection solution
• Eliminate 99% of viruses, bacteria, fungi and harmful microorganisms.
• Fast Disinfection time: < 15 min at 2.5m of disinfection distance
• Long & Reliable Lamp Lifetime: 9,000 hours
• Large Coverage: Up to 22 m² (direct) and 25 m² (indirect)
• Multiple Mounting Options: Wall, Ceiling or Tripod [A mounting bracket is supplied with 5 pre-drilled holes]
• PHILIPS UV Lamps: 35 years of experience in developing and manufacturing UV-C products
• A broad-scale of accessories: PHILIPS UVC lamps (TUV55W & TUV50W HO), wireless controller, air filters, mounting arm and protective foil for the radiator (on request)
• Air filter replacement: depending on the usage (twice a year recommended)
• Radiators replacement: once a year

UVC LIGHT SAFETY FEATURES:

• Alarm Notification: Once B Hybrid is powered on, the following features will activate to notify users the unit is in operation.
  - Sound alarm (will beep continuously)
  - LED alarm (will flash continuously)
• Sensor Detection: The 360° motion sensor will detect the movement and within 20ms after detection, the unit will be powered off
• EN 62471:2009 (idt IEC62471:2006) Photobiological safety of lamps and lamp systems

SPECIFICATIONS:

• Coverage: Up to 22 m² (direct) and 25 m² (indirect)
• Circulation: 117 m³/h
• Light source: 1x TUV 55 W HO + 2x TUV 55 W
• IP Rating: IP20 [Dustproof]
• Input power: 138W AC 220 - 230 V 50 Hz
• Dimensions: 1.15 x 320 x 235 mm
• Weight: 14.7 kg
• Wavelength: 254nm (UVC)
• Recommended uptime: 24h

UVC LIGHT CALCULATOR:

1. Select a UVC sterilizer product
2. Estimate the distance between the product and the working surface
3. View the treatment time that is automatically calculated
   (By default, the dose is set to 67 J/m² that is the average dose required to inactivate Coronaviruses)

Social Distancing & Hygiene Collection

BENEFITS OF UVC LIGHT TECHNOLOGY:

• UVC radiation has been proven to be effective against waterborne and airborne pathogenic micro-organisms including those responsible for cholera, hepatitis, polio, typhoid, giardia, cryptosporidium and many other bacterial, viral and parasitic diseases
• UVC installations have low capital and operation cost
• UVC technology is environmentally friendly
• UVC installations are easy to operate and to maintain
• UVC radiation has no harmful effect when overdosed on surfaces, water or air
• UVC radiation works instantly and the effectiveness does not depend on the temperature
• UVC disinfection is a physical process: no substances are added
• The UVC disinfection effect is directly related to the UV dose (which is the product of intensity and exposure time of the micro-organisms) so it’s effectiveness can be simply measured once the system design is validated
