Doughty Slimline Big Ben Clamp [Multi-Pack]


Spigot Size

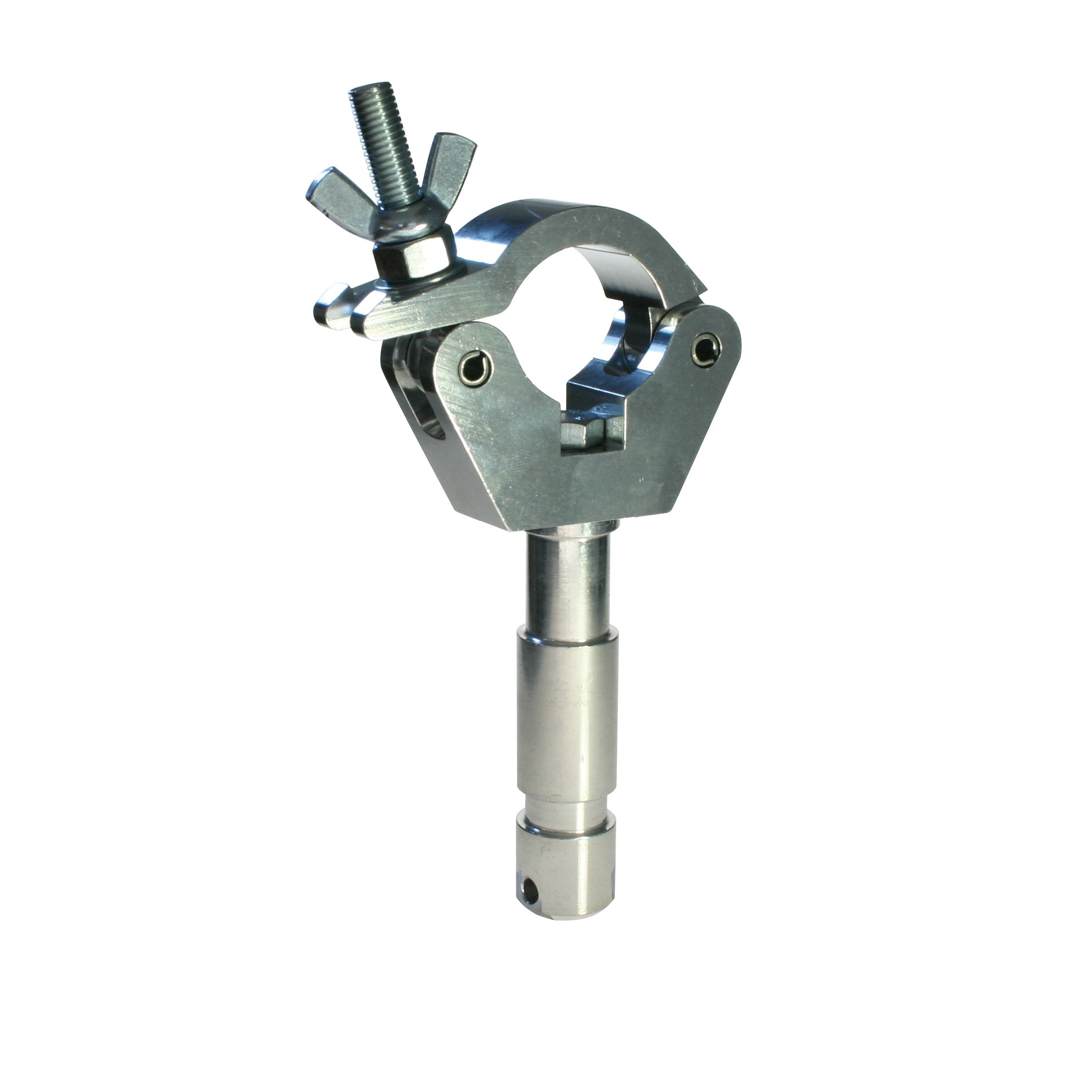

Doughty Big Ben Clamp

The Slimline Doughty Big Ben Clamp is supplied with a 28mm Spigot for mounting TV/broadcast luminaires. Its slim shape allows the clamp to be used between truss webs etc. This gear is slotted to captivate an M12 nut or bolt head.

It is manufactured from high tensile Aluminium Extrusion and available in Black or Polished Aluminium. Widely applicable in the theatre, film, TV and photographic industries. It comes in two specifications, Euro and Din. For any inquiries, please contact us via chat.

Spec Sheet - Cert


  • SWL: 200 Kg
  • Tube Diameters: 48mm to 51mm
  • Width: 30mm
  • Fixings: 28mm Spigot
  • Weight: 0.48 Kg
  • Material: Aluminum
  • Finish: Black or Polished Aluminium
